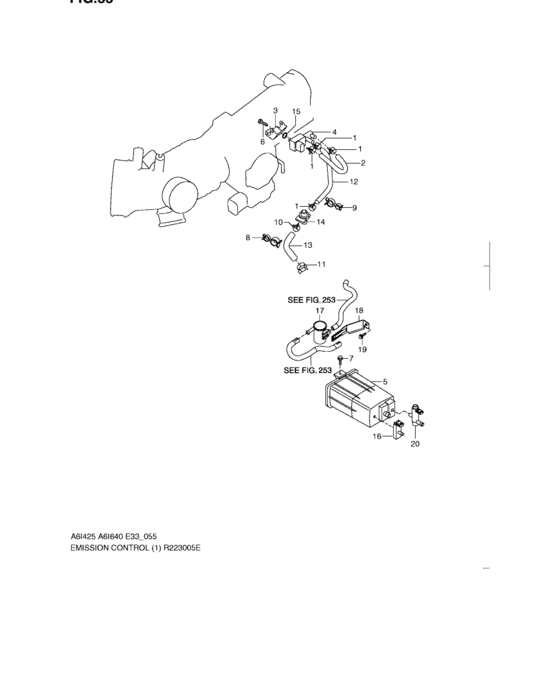

Emission control (QR25DE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17855-82Z00-000
Clamp
|
17855-82Z00-000 |
— | ||
|
2
|
2
15220-82Z00-000
Hose
|
15220-82Z00-000 |
— | ||
|
3
|
3
13485-82Z00-000
Adapter, purge
|
13485-82Z00-000 |
— | ||
|
4
|
4
18595-82Z10-000
Valve assy, pcv
|
18595-82Z10-000 |
— | ||
|
5
|
5
18560-82Z00-000
Canister assy
|
18560-82Z00-000 |
— | ||
|
6
|
6
3349A-82Z00-000
Bolt
|
3349A-82Z00-000 |
— | ||
|
7
|
7
7171A-82Z00-000
Bolt
|
7171A-82Z00-000 |
— | ||
|
8
|
8
18555-82Z00-000
Clip, hose
|
18555-82Z00-000 |
— | ||
|
9
|
9
18552-82Z00-000
Clip, hose
|
18552-82Z00-000 |
— | ||
|
10
|
10
16621-82Z20-000
Clamp
|
16621-82Z20-000 |
— | ||
|
11
|
11
17855-82Z00-000
Clamp
|
17855-82Z00-000 |
— | ||
|
12
|
12
18559-82Z00-000
Hose, evapo control
|
18559-82Z00-000 |
— | ||
|
13
|
13
18558-82Z00-000
Hose, evapo control
|
18558-82Z00-000 |
— | ||
|
14
|
14
18117-82Z00-000
Valve assy, evapo service port
|
18117-82Z00-000 |
— | ||
|
15
|
15
18119-82Z00-000
Seal, o ring
|
18119-82Z00-000 |
— | ||
|
16
|
16
18590-82Z00-000
Sensor, boost
|
18590-82Z00-000 |
— | ||
|
17
|
17
18557-82Z00-000
Filter, canister
|
18557-82Z00-000 |
— | ||
|
18
|
18
18556-82Z00-000
Bracket, evaporator filter
|
18556-82Z00-000 |
— | ||
|
19
|
19
5925A-82Z50-000
Bolt
|
5925A-82Z50-000 |
— | ||
|
20
|
20
18569-82Z00-000
Valve assy, control
09 MODEL |
18569-82Z00-000 |
— | ||
|
20
|
20
18569-82Z10-000
Valve assy, pressure
10 MODEL |
18569-82Z10-000 |
— |
