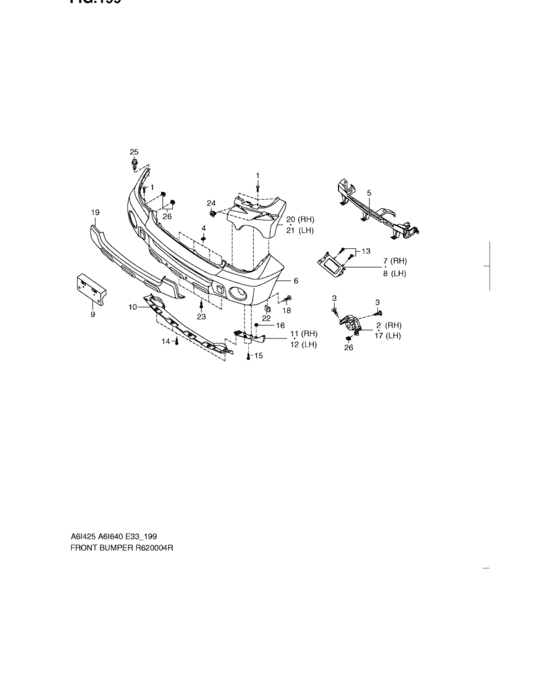

Front bumper (FRONT BUMPER) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71748-82Z00-000
Rivet, blind
|
71748-82Z00-000 |
— | ||
|
2
|
2
71712-82Z00-000
Cap, fr bumper rh
KING,CREW SHORT:,BASE,SPORT,SPORT LONG |
71712-82Z00-000 |
— | ||
|
3
|
3
71749-82Z10-000
Clip
KING,CREW SHORT:BASE,SPORT,,SPORT LONG |
71749-82Z10-000 |
— | ||
|
3
|
3
58116-50Z00-000
クリップ
KING,CREW SHORT:BASE,SPORT,,SPORT LONG |
58116-50Z00-000 |
— | ||
|
4
|
4
86721-82ZJ0-000
Clip
09 MODEL |
86721-82ZJ0-000 |
— | ||
| replacement | |||||
|
4
|
4
86721-82ZJ1-000
Clip
09 MODEL |
86721-82ZJ1-000 |
— | ||
|
4
|
4
71116-82Z00-000
Nut
10 MODEL |
71116-82Z00-000 |
— | ||
|
5
|
5
71100-82Z00-000
Member, front bumper
|
71100-82Z00-000 |
— | ||
|
6
|
6
71711-82Z00-000
Bumper, front
|
71711-82Z00-000 |
— | ||
|
7
|
7
71731-82Z00-000
Bracket, fr bumper side rh
|
71731-82Z00-000 |
— | ||
|
8
|
8
71732-82Z00-000
Bracket, fr bumper side lh
|
71732-82Z00-000 |
— | ||
|
9
|
9
71716-82Z00-000
Bracket, license plate
|
71716-82Z00-000 |
— | ||
|
10
|
10
77121-82Z10-000
Spoiler, center
|
77121-82Z10-000 |
— | ||
|
11
|
11
77122-82Z00-000
Spoiler rh
|
77122-82Z00-000 |
— | ||
|
12
|
12
77123-82Z00-000
Spoiler lh
|
77123-82Z00-000 |
— | ||
|
13
|
13
38454-50Z00-000
ボルト,6X20
|
38454-50Z00-000 |
— | ||
|
14
|
14
73209-50Z00-000
ボルト,6X16
|
73209-50Z00-000 |
— | ||
|
15
|
15
73209-50Z00-000
ボルト,6X16
|
73209-50Z00-000 |
— | ||
|
16
|
16
7171A-82Z40-000
Nut
|
7171A-82Z40-000 |
— | ||
|
17
|
17
71713-82Z00-000
Cap, fr bumper lh
KING,CREW SHORT:,BASE,SPORT,SPORT LONG |
71713-82Z00-000 |
— | ||
|
18
|
18
77265-82Z80-000
Screw
|
77265-82Z80-000 |
— | ||
|
19
|
19
71751-82Z10-000
Protector, fr bumper
MT |
71751-82Z10-000 |
— | ||
|
20
|
20
71731-82Z10-000
Bracket, fr bumper side rh
|
71731-82Z10-000 |
— | ||
|
21
|
21
71732-82Z10-000
Bracket, fr bumper side lh
|
71732-82Z10-000 |
— | ||
|
22
|
22
71118-82Z00-000
Nut
|
71118-82Z00-000 |
— | ||
|
23
|
23
71749-82Z00-000
Screw
|
71749-82Z00-000 |
— | ||
|
24
|
24
71714-82Z00-000
Clip
09 MODEL |
71714-82Z00-000 |
— | ||
|
24
|
24
58116-50Z00-000
クリップ
10 MODEL |
58116-50Z00-000 |
— | ||
|
25
|
25
35153-50Z00-000
クリップ
|
35153-50Z00-000 |
— | ||
|
26
|
26
71746-82Z00-000
Clip
|
71746-82Z00-000 |
— | ||
