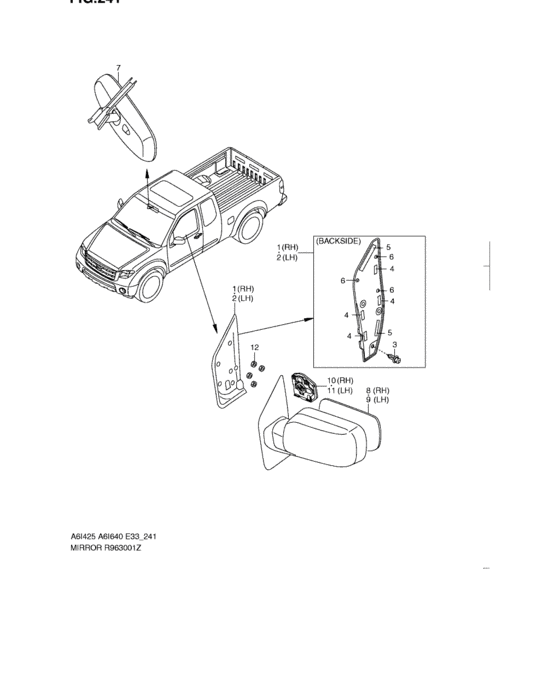

Mirror (MIRROR) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84750-82Z00-000
Garnish, sash bracket rh
09 MODEL |
84750-82Z00-000 |
— | ||
|
1
|
1
84750-82Z10-000
Carnish, sash bracket rh
10 MODEL |
84750-82Z10-000 |
— | ||
|
2
|
2
84790-82Z00-000
Garnish, sash bracket lh
09 MODEL |
84790-82Z00-000 |
— | ||
|
2
|
2
84790-82Z10-000
Garnish, sash bracket lh
10 MODEL |
84790-82Z10-000 |
— | ||
|
3
|
3
58116-82Z30-000
Clip
|
58116-82Z30-000 |
— | ||
|
4
|
4
76167-82Z00-000
Tape
|
76167-82Z00-000 |
— | ||
|
5
|
5
76167-82Z10-000
Tape
|
76167-82Z10-000 |
— | ||
|
6
|
6
76166-82Z00-000
Grommet
09 MODEL |
76166-82Z00-000 |
— | ||
|
7
|
7
84703-82Z00-000
Mirror, inside rear view
|
84703-82Z00-000 |
— | ||
|
8
|
8
84730-82Z00-000
Glass, out rear view mirror rh
|
84730-82Z00-000 |
— | ||
|
9
|
9
84740-82Z00-000
Glass, out rear view mirror lh
|
84740-82Z00-000 |
— | ||
|
10
|
10
84715-82Z00-000
Actuator, mirror rh
BASE,PREMIUM,SPORT,SPORT:LONG |
84715-82Z00-000 |
— | ||
|
10
|
10
84715-82Z10-000
Actuator, mirror rh
RMZ-4,RMZ-4:SPORT PKG |
84715-82Z10-000 |
— | ||
|
11
|
11
84725-82Z00-000
Actuator, mirror lh
BASE,PREMIUM,SPORT,SPORT:LONG |
84725-82Z00-000 |
— | ||
|
11
|
11
84725-82Z10-000
Actuator, mirror lh
RMZ-4,RMZ-4:SPORT PKG |
84725-82Z10-000 |
— | ||
|
12
|
12
5823A-82Z20-000
Bolt
|
5823A-82Z20-000 |
— | ||
|
13
|
13
84701-82Z10-000
Mirror, out rear view rh
MANUAL |
84701-82Z10-000 |
— | ||
|
13
|
13
84701-82Z20-000
Mirror, out rear view rh
POWER-UNHEATED |
84701-82Z20-000 |
— | ||
|
13
|
13
84701-82Z30-000
Mirror, out rear view rh
POWER-UNHEATED |
84701-82Z30-000 |
— | ||
|
13
|
13
84701-82Z40-000
Mirror, out rear view rh
POWER-HEATED |
84701-82Z40-000 |
— | ||
|
14
|
14
84702-82Z10-000
Mirror, out rear view lh
MANUAL |
84702-82Z10-000 |
— | ||
|
14
|
14
84702-82Z20-000
Mirror, out rear view lh
POWER-UNHEATED |
84702-82Z20-000 |
— | ||
|
14
|
14
84702-82Z30-000
Mirror, out rear view lh
POWER-UNHEATED |
84702-82Z30-000 |
— | ||
|
14
|
14
84702-82Z40-000
Mirror, out rear view lh
POWER-HEATED |
84702-82Z40-000 |
— |
