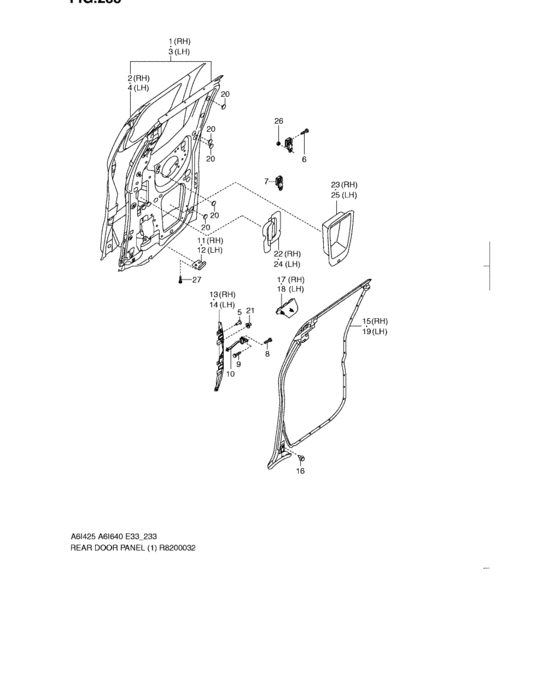

Rear door panel (KING) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68501-82Z00-000
Panel assy, rear door rh
|
68501-82Z00-000 |
— | ||
|
2
|
2
68512-82Z00-000
Panel, rr door outer rh
|
68512-82Z00-000 |
— | ||
|
3
|
3
68701-82Z00-000
Panel assy, rear door lh
|
68701-82Z00-000 |
— | ||
|
4
|
4
68712-82Z00-000
Panel, rr door outer lh
|
68712-82Z00-000 |
— | ||
|
5
|
5
58116-82Z01-000
Clip
|
58116-82Z01-000 |
— | ||
|
6
|
6
58119-82Z00-000
Bolt
|
58119-82Z00-000 |
— | ||
|
7
|
7
84120-82Z00-000
Arm, slide door rh
|
84120-82Z00-000 |
— | ||
|
8
|
8
68117-50Z00-000
スクリュ
09 MODEL:~2009-5 |
68117-50Z00-000 |
— | ||
|
8
|
8
68117-82Z00-000
Screw
09 MODEL:2009-6~,10 MODEL |
68117-82Z00-000 |
— | ||
|
9
|
9
58119-82Z10-000
Bolt
|
58119-82Z10-000 |
— | ||
|
10
|
10
82630-82Z00-000
Striker, slide door rh
|
82630-82Z00-000 |
— | ||
|
11
|
11
82713-82Z00-000
Male, door rh
|
82713-82Z00-000 |
— | ||
|
12
|
12
82712-82Z00-000
Male, door lh
|
82712-82Z00-000 |
— | ||
|
13
|
13
72491-82Z00-000
Cover, hinge rh
|
72491-82Z00-000 |
— | ||
|
14
|
14
72492-82Z00-000
Cover, hinge lh
|
72492-82Z00-000 |
— | ||
|
15
|
15
84661-82Z00-000
Weatherstrip, rr door rh
|
84661-82Z00-000 |
— | ||
|
16
|
16
86721-82Z20-000
Clip
|
86721-82Z20-000 |
— | ||
|
17
|
17
84642-82Z10-000
Clip
|
84642-82Z10-000 |
— | ||
|
18
|
18
84652-82Z10-000
Clip
|
84652-82Z10-000 |
— | ||
|
19
|
19
84671-82Z00-000
Weatherstrip slide door
|
84671-82Z00-000 |
— | ||
|
20
|
20
83715-82Z00-000
Cover, hole
|
83715-82Z00-000 |
— | ||
|
21
|
21
68517-82ZE0-000
Grommet
|
68517-82ZE0-000 |
— | ||
|
22
|
22
83913-82Z10-000
Screen, rear door sealing rh
09 MODEL:~2009-3 |
83913-82Z10-000 |
— | ||
|
22
|
22
83913-82Z60-000
Screen, rear door sealing rh
09 MODEL:2009-4~,10 MODEL |
83913-82Z60-000 |
— | ||
|
23
|
23
83913-82Z20-000
Screen, rear door sealing rh
09 MODEL:~2009-3 |
83913-82Z20-000 |
— | ||
|
23
|
23
83913-82Z70-000
Screen, rear door sealing rh
09 MODEL:2009-4~,10 MODEL |
83913-82Z70-000 |
— | ||
|
24
|
24
83914-82Z10-000
Screen, rear door sealing lh
09 MODEL:~2009-3 |
83914-82Z10-000 |
— | ||
|
24
|
24
83814-82Z60-000
Screen, rear door sealing lh
09 MODEL:2009-4~ |
83814-82Z60-000 |
— | ||
|
25
|
25
83914-82Z20-000
Screen, rear door sealing lh
09 MODEL:~2009-3 |
83914-82Z20-000 |
— | ||
|
25
|
25
83814-82Z70-000
Screen, rear door sealing lh
09 MODEL:2009-4~,10 MODEL |
83814-82Z70-000 |
— | ||
|
26
|
26
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
27
|
27
73209-50Z00-000
ボルト,6X16
|
73209-50Z00-000 |
— |
