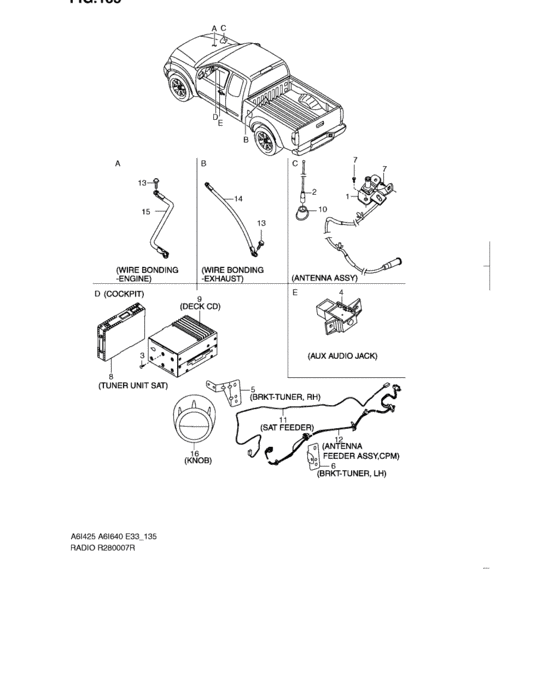

Tuner (TUNER) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- MT
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39252-82Z00-000
Antenna assy
|
39252-82Z00-000 |
— | ||
|
2
|
2
39251-82Z00-000
Rod, antenna
|
39251-82Z00-000 |
— | ||
|
3
|
3
36653-82Z10-000
Screw
|
36653-82Z10-000 |
— | ||
|
4
|
4
39109-82Z00-000
Jack, aux audio
W/AUX AUDIO JACK |
39109-82Z00-000 |
— | ||
|
5
|
5
39321-82Z00-000
Bracket, tuner rh
W/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39321-82Z00-000 |
— | ||
|
6
|
6
39322-82Z00-000
Bracket, tuner lh
W/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39322-82Z00-000 |
— | ||
|
7
|
7
36653-82Z00-000
Bolt
|
36653-82Z00-000 |
— | ||
|
8
|
8
39101-82Z00-000
Tuner assy
W/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39101-82Z00-000 |
— | ||
|
9
|
9
39101-82Z30-000
Deck, cd
W/TUNER,W/4-SPEAKER |
39101-82Z30-000 |
— | ||
|
9
|
9
39101-82Z10-000
Deck, cd
W/TUNER,W/6-SPEAKER |
39101-82Z10-000 |
— | ||
|
9
|
9
39101-82Z20-000
Deck, cd
W/TUNER,W/9-SPEAKER |
39101-82Z20-000 |
— | ||
|
10
|
10
39253-82Z00-000
Base, antenna
|
39253-82Z00-000 |
— | ||
|
11
|
11
39271-82Z10-000
Feeder, antenna
W/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39271-82Z10-000 |
— | ||
|
12
|
12
39270-82Z00-000
Feeder, antenna
W/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39270-82Z00-000 |
— | ||
|
12
|
12
39270-82Z10-000
Feeder, antenna
N/AM/FM/CD6 ROCKFORD FOSGATE,PREMIUM AUDIO |
39270-82Z10-000 |
— | ||
|
13
|
13
36653-50Z00-000
スクリュ
|
36653-50Z00-000 |
— | ||
|
14
|
14
39312-82Z00-000
Wire
|
39312-82Z00-000 |
— | ||
|
15
|
15
39312-82Z10-000
Wire
QR25DE |
39312-82Z10-000 |
— | ||
|
15
|
15
39312-82Z20-000
Wire
VQ40DE |
39312-82Z20-000 |
— | ||
|
16
|
16
39121-82Z00-000
Knob, radio
W/TUNER,W/4-SPEAKER,W/6-SPEAKER |
39121-82Z00-000 |
— |
