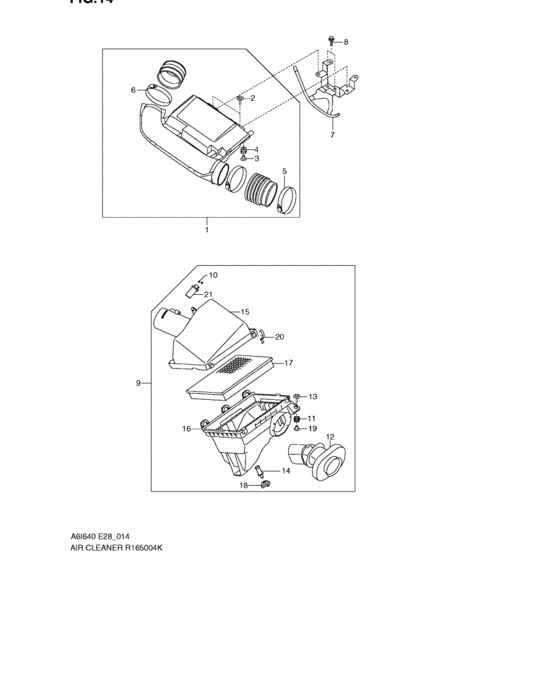

Air cleaner (AIR CLEANER) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13881-82Z20-000
Hose, air clnr inlet
|
13881-82Z20-000 |
— | ||
|
2
|
2
15120-82Z10-000
Screw
|
15120-82Z10-000 |
— | ||
|
3
|
3
13877-82Z00-000
Retainer
|
13877-82Z00-000 |
— | ||
|
4
|
4
13882-82Z00-000
Retainer
|
13882-82Z00-000 |
— | ||
|
5
|
5
16621-82ZA0-000
Clamp
|
16621-82ZA0-000 |
— | ||
|
6
|
6
16621-82ZB0-000
Clamp
|
16621-82ZB0-000 |
— | ||
|
7
|
7
13762-82Z00-000
Bracket, resonator
|
13762-82Z00-000 |
— | ||
|
8
|
8
33228-50Z00-000
ボルト,8X16
|
33228-50Z00-000 |
— | ||
|
9
|
9
13700-82Z00-000
Air cleaner
|
13700-82Z00-000 |
— | ||
|
10
|
10
1370A-82Z00-000
Bolt
|
1370A-82Z00-000 |
— | ||
|
11
|
11
13878-82Z00-000
Mounting, rubber
|
13878-82Z00-000 |
— | ||
|
12
|
12
13730-82Z00-000
Duct, air
|
13730-82Z00-000 |
— | ||
|
13
|
13
15120-82Z10-000
Screw
|
15120-82Z10-000 |
— | ||
|
14
|
14
13766-82Z00-000
Bolt
|
13766-82Z00-000 |
— | ||
|
15
|
15
13710-82Z00-000
Air cleaner cover
|
13710-82Z00-000 |
— | ||
|
16
|
16
13720-82Z00-000
Body assy, air cleaner
|
13720-82Z00-000 |
— | ||
|
17
|
17
13780-82Z10-000
Element assy, air
|
13780-82Z10-000 |
— | ||
|
18
|
18
13172-82Z00-000
Grommet
|
13172-82Z00-000 |
— | ||
|
19
|
19
13877-82Z00-000
Retainer
|
13877-82Z00-000 |
— | ||
|
20
|
20
13755-82Z00-000
Clip
|
13755-82Z00-000 |
— | ||
|
21
|
21
13800-50Z00-000
センサ,エアフロー
|
13800-50Z00-000 |
— | ||
| replacement | |||||
|
21
|
21
13800-50Z01-000
New Genuine Part
|
13800-50Z01-000 |
— | ||
|
22
|
22
13171-82Z00-000
Emblem
NOT ILLUSTRATED |
13171-82Z00-000 |
— | ||
