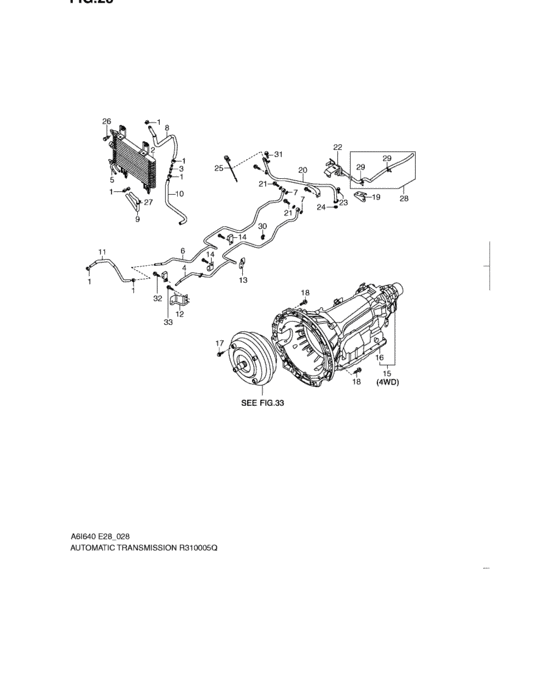

Automatic transmission (AUTOMATIC TRANSMISSION) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17855-82Z10-000
Clamp
|
17855-82Z10-000 |
— | ||
|
2
|
2
24291-82Z00-000
Cooler assy, oil
|
24291-82Z00-000 |
— | ||
|
3
|
3
24925-82Z00-000
Joint
09 MODEL,10 MODEL |
24925-82Z00-000 |
— | ||
|
3
|
3
24925-82Z10-000
Joint
10 MODEL,2009-10~ |
24925-82Z10-000 |
— | ||
|
4
|
4
22931-82Z10-000
Tube, oil cooler
|
22931-82Z10-000 |
— | ||
|
5
|
5
22931-82Z20-000
Tube, oil cooler
|
22931-82Z20-000 |
— | ||
|
6
|
6
22932-82Z10-000
Tube, oil cooler
|
22932-82Z10-000 |
— | ||
|
7
|
7
22913-82Z00-000
Washer
|
22913-82Z00-000 |
— | ||
|
8
|
8
22934-82Z00-000
Hose, oil cooler
|
22934-82Z00-000 |
— | ||
|
9
|
9
22935-82Z00-000
Hose, oil cooler
|
22935-82Z00-000 |
— | ||
|
10
|
10
22936-82Z00-000
Hose, cooler to rdtr
|
22936-82Z00-000 |
— | ||
|
11
|
11
22937-82Z00-000
Hose, cooler to engine
09 MODEL |
22937-82Z00-000 |
— | ||
|
11
|
11
22937-82Z10-000
Hose, oil cooler
10 MODEL |
22937-82Z10-000 |
— | ||
|
12
|
12
22936-82Z20-000
Bracket
|
22936-82Z20-000 |
— | ||
|
13
|
13
22936-82Z30-000
Bracket
|
22936-82Z30-000 |
— | ||
|
14
|
14
22938-82Z20-000
Clamp
|
22938-82Z20-000 |
— | ||
|
15
|
15
21000-82Z40-000
At transmission assy, w/tf
09 MODEL |
21000-82Z40-000 |
— | ||
|
15
|
15
21000-82ZG0-000
At transmission assy, w/tf
10 MODEL |
21000-82ZG0-000 |
— | ||
|
16
|
16
21000-82Z31-000
At transmission assy
09 MODEK |
21000-82Z31-000 |
— | ||
|
16
|
16
21000-82ZL0-000
At transmission assy
10 MODEL |
21000-82ZL0-000 |
— | ||
|
17
|
17
21111-82Z00-000
Bolt
|
21111-82Z00-000 |
— | ||
|
18
|
18
21115-82Z80-000
Bolt
|
21115-82Z80-000 |
— | ||
|
19
|
19
21112-82Z00-000
Bracket
|
21112-82Z00-000 |
— | ||
|
20
|
20
24770-82Z10-000
Tube assy, t/m oil filler
|
24770-82Z10-000 |
— | ||
|
21
|
21
24822-82Z10-000
Bolt
|
24822-82Z10-000 |
— | ||
|
22
|
22
24771-82Z90-000
Hose
|
24771-82Z90-000 |
— | ||
|
23
|
23
21115-82Z90-000
Bolt
|
21115-82Z90-000 |
— | ||
|
24
|
24
24779-82Z00-000
O ring
|
24779-82Z00-000 |
— | ||
|
25
|
25
24830-82Z10-000
Gauge assy, t/m oil level
|
24830-82Z10-000 |
— | ||
|
26
|
26
13114-82Z00-000
Bolt
09 MODEL |
13114-82Z00-000 |
— | ||
|
27
|
27
24851-50Z00-000
クリップ
|
24851-50Z00-000 |
— | ||
|
28
|
28
24771-82Z80-000
Hose
|
24771-82Z80-000 |
— | ||
|
29
|
29
24756-82Z00-000
Clip
|
24756-82Z00-000 |
— | ||
|
30
|
30
86723-82Z31-000
Clip
09 MODEL |
86723-82Z31-000 |
— | ||
|
31
|
31
71828-50Z00-000
ボルト,6X12
|
71828-50Z00-000 |
— | ||
|
32
|
32
71828-50Z00-000
ボルト,6X12
|
71828-50Z00-000 |
— | ||
|
33
|
33
71828-50Z00-000
ボルト,6X12
|
71828-50Z00-000 |
— |
