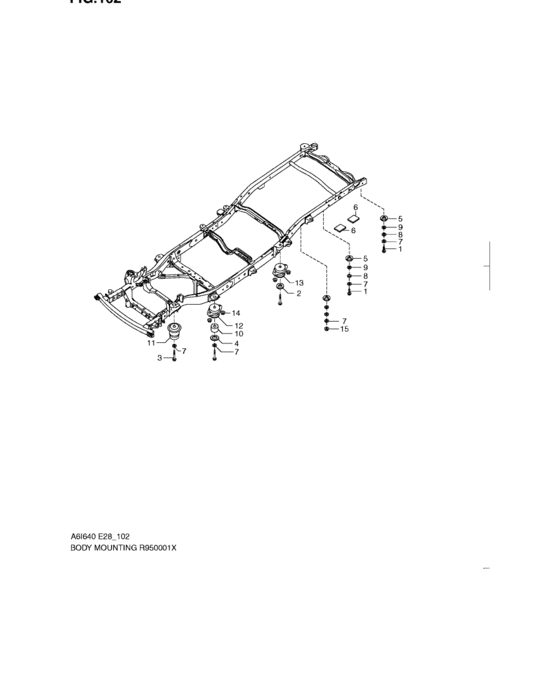

Body mounting (BODY MOUNTING) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71516-82Z20-000
Bolt
|
71516-82Z20-000 |
— | ||
|
2
|
2
71517-82Z00-000
Washer
|
71517-82Z00-000 |
— | ||
|
3
|
3
71516-82Z00-000
Bolt
|
71516-82Z00-000 |
— | ||
|
4
|
4
71518-82Z00-000
Sheet
|
71518-82Z00-000 |
— | ||
|
5
|
5
71632-82Z00-000
Shim, body mounting
|
71632-82Z00-000 |
— | ||
|
6
|
6
71632-82Z20-000
Shim, body mounting
|
71632-82Z20-000 |
— | ||
|
7
|
7
71632-82Z10-000
Shim, body mounting
|
71632-82Z10-000 |
— | ||
|
8
|
8
86723-82Z00-000
Washer
|
86723-82Z00-000 |
— | ||
|
9
|
9
71515-82Z00-000
Spacer
|
71515-82Z00-000 |
— | ||
|
10
|
10
71517-82Z10-000
Washer, body mounting
|
71517-82Z10-000 |
— | ||
|
11
|
11
71511-82Z00-000
Insulator, mounting
|
71511-82Z00-000 |
— | ||
|
12
|
12
71511-82Z20-000
Insulator, mounting
|
71511-82Z20-000 |
— | ||
|
13
|
13
71511-82Z10-000
Insulator, mounting
|
71511-82Z10-000 |
— | ||
|
14
|
14
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
|
15
|
15
6331A-82Z00-000
Nut
|
6331A-82Z00-000 |
— |
