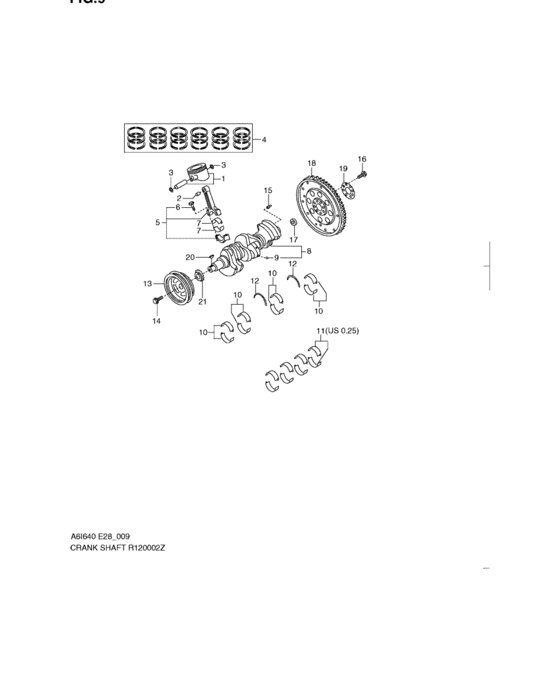

Crankshaft (CRANKSHAFT) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12111-82Z10-00A
Piston, cylinder
GRADE PISTON1 |
12111-82Z10-00A |
— | ||
|
1
|
1
12111-82Z10-00B
Piston, cylinder
GRADE PISTON2 |
12111-82Z10-00B |
— | ||
|
1
|
1
12111-82Z10-00C
Piston, cylinder
GRADE PISTON3 |
12111-82Z10-00C |
— | ||
|
2
|
2
12152-82Z00-000
Bush, piston
09 MODEL |
12152-82Z00-000 |
— | ||
|
2
|
2
12152-82Z20-000
Bush, piston
10 MODEL |
12152-82Z20-000 |
— | ||
|
3
|
3
12110-82Z10-000
Circlip, piston pin
|
12110-82Z10-000 |
— | ||
|
4
|
4
12140-82Z00-000
Ring set, piston
STD |
12140-82Z00-000 |
— | ||
|
5
|
5
12160-82Z10-000
Connrod assy
|
12160-82Z10-000 |
— | ||
|
6
|
6
12163-82Z00-000
Bolt, connrod
|
12163-82Z00-000 |
— | ||
|
7
|
7
12181-82Z00-001
Bearing, connrod
STD:GRADE 1 |
12181-82Z00-001 |
— | ||
|
7
|
7
12181-82Z00-002
Bearing, connrod
STD:GRADE 2 |
12181-82Z00-002 |
— | ||
|
7
|
7
12181-82Z00-003
Bearing, connrod
STD:GRADE 3 |
12181-82Z00-003 |
— | ||
|
7
|
7
12181-82Z00-004
Bearing, connrod
OS:0.25 |
12181-82Z00-004 |
— | ||
|
8
|
8
12221-82Z00-000
Crank shaft assy
|
12221-82Z00-000 |
— | ||
|
9
|
9
12223-82Z00-000
Plug, oil hole
|
12223-82Z00-000 |
— | ||
|
10
|
10
12100-82Z20-000
Bearing set, crankshaft
STD:GRADE 0 |
12100-82Z20-000 |
— | ||
|
10
|
10
12100-82Z20-001
Bearing set, crankshaft
STD:GRADE 1 |
12100-82Z20-001 |
— | ||
|
10
|
10
12100-82Z20-002
Bearing set, crankshaft
STD:GRADE 2 |
12100-82Z20-002 |
— | ||
|
10
|
10
12100-82Z20-003
Bearing set, crankshaft
STD:GRADE 3 |
12100-82Z20-003 |
— | ||
|
10
|
10
12100-82Z20-004
Bearing set, crankshaft
STD:GRADE 4 |
12100-82Z20-004 |
— | ||
|
10
|
10
12100-82Z20-005
Bearing set, crankshaft
STD:GRADE 5 |
12100-82Z20-005 |
— | ||
|
10
|
10
12100-82Z20-006
Bearing set, crankshaft
STD:GRADE 6 |
12100-82Z20-006 |
— | ||
|
10
|
10
12100-82Z20-007
Bearing set, crankshaft
STD:GRADE 7 |
12100-82Z20-007 |
— | ||
|
10
|
10
12100-82Z20-010
Bearing set, crankshaft
STD:GRADE 10 |
12100-82Z20-010 |
— | ||
|
10
|
10
12100-82Z20-012
Bearing set, crankshaft
STD:GRADE 12 |
12100-82Z20-012 |
— | ||
|
10
|
10
12100-82Z20-023
Bearing set, crankshaft
STD:GRADE 23 |
12100-82Z20-023 |
— | ||
|
10
|
10
12100-82Z20-034
Bearing set, crankshaft
STD:GRADE 34 |
12100-82Z20-034 |
— | ||
|
10
|
10
12100-82Z20-045
Bearing set, crankshaft
STD:GRADE 45 |
12100-82Z20-045 |
— | ||
|
10
|
10
12100-82Z20-056
Bearing set, crankshaft
STD:GRADE 56 |
12100-82Z20-056 |
— | ||
|
10
|
10
12100-82Z20-067
Bearing set, crankshaft
STD:GRADE 67 |
12100-82Z20-067 |
— | ||
|
11
|
11
12100-82Z30-000
Bearing set, connecting rod
US:0.25 |
12100-82Z30-000 |
— | ||
|
12
|
12
12351-82Z10-000
Washer, thrust
OS:0.25 |
12351-82Z10-000 |
— | ||
|
13
|
13
12610-82Z00-000
Pulley, crank shaft
|
12610-82Z00-000 |
— | ||
|
14
|
14
12618-82Z00-000
Bolt, crank pulley
|
12618-82Z00-000 |
— | ||
|
15
|
15
11129-82Z60-000
Pin, dowel
|
11129-82Z60-000 |
— | ||
|
16
|
16
12621-82Z20-000
Bolt
|
12621-82Z20-000 |
— | ||
|
17
|
17
12226-82Z00-000
Pilot, converter
|
12226-82Z00-000 |
— | ||
|
18
|
18
12620-82Z20-000
Fly wheel assy
|
12620-82Z20-000 |
— | ||
|
19
|
19
12635-82Z10-000
Plate, flywheel
09 MODEL |
12635-82Z10-000 |
— | ||
|
19
|
19
12635-82Z20-000
Plate, flywheel
10 MODEL |
12635-82Z20-000 |
— | ||
|
20
|
20
1271A-82Z00-000
Key
|
1271A-82Z00-000 |
— | ||
|
21
|
21
12631-82Z10-000
Sprocket, crankshaft
|
12631-82Z10-000 |
— |
