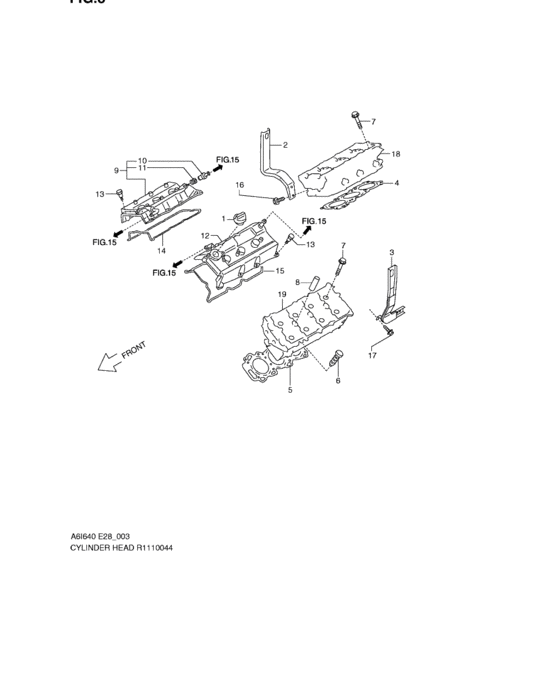

Cylinder head (CYLINDER HEAD) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16920-82Z00-000
Cap assy, oil filler
09 MODEL |
16920-82Z00-000 |
— | ||
|
1
|
1
16920-82Z10-000
Cap Assy, Oil Filter
10 MODEL |
16920-82Z10-000 |
— | ||
|
2
|
2
11851-82Z10-000
Hook, engine
|
11851-82Z10-000 |
— | ||
|
3
|
3
11852-82Z20-000
Hook, engine
|
11852-82Z20-000 |
— | ||
|
4
|
4
11141-82Z10-000
Gasket, cylinder head
|
11141-82Z10-000 |
— | ||
|
5
|
5
11141-82Z20-000
Gasket, cylinder head
|
11141-82Z20-000 |
— | ||
|
6
|
6
11515-82Z50-000
Plug, cyl block
|
11515-82Z50-000 |
— | ||
|
7
|
7
11117-82Z10-000
Bolt, cylinder head
|
11117-82Z10-000 |
— | ||
|
8
|
8
11115-82Z00-000
Guide, valve
|
11115-82Z00-000 |
— | ||
|
9
|
9
11170-82Z10-000
Cover, cylinder head
|
11170-82Z10-000 |
— | ||
|
10
|
10
18118-82Z10-000
Valve assy, control
|
18118-82Z10-000 |
— | ||
|
11
|
11
11198-50Z00-000
シール,PCVバルブ
|
11198-50Z00-000 |
— | ||
|
12
|
12
11170-82Z20-000
Cover, cylinder head
|
11170-82Z20-000 |
— | ||
|
13
|
13
11178-82Z10-000
Bolt, cyl head cover
09 MODEL |
11178-82Z10-000 |
— | ||
|
13
|
13
11178-82Z20-000
Bolt, cyl head cover
09 MODEL,2009-4~,10 MODEL |
11178-82Z20-000 |
— | ||
|
14
|
14
11189-82Z10-000
Gasket, cyl head cover
|
11189-82Z10-000 |
— | ||
|
15
|
15
11189-82Z20-000
Gasket, cyl head cover
|
11189-82Z20-000 |
— | ||
|
16
|
16
1853A-82Z00-000
Bolt
|
1853A-82Z00-000 |
— | ||
|
17
|
17
1311A-82Z10-000
Bolt
|
1311A-82Z10-000 |
— | ||
|
18
|
18
11100-82Z00-000
Cover, cylinder head rh
|
11100-82Z00-000 |
— | ||
|
19
|
19
11600-82Z00-000
Cover, cylinder head lh
|
11600-82Z00-000 |
— |
