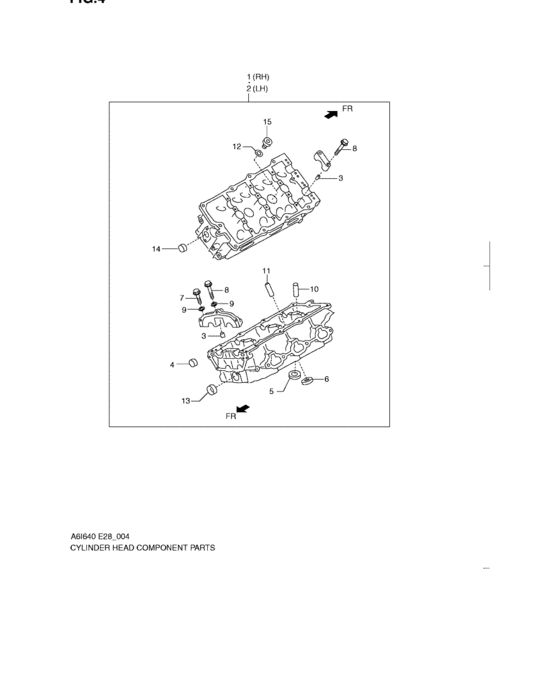

Cylinder head component parts (CYLINDER HEAD COMPONENT PARTS) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-82Z00-000
Cover, cylinder head rh
|
11100-82Z00-000 |
— | ||
|
2
|
2
11600-82Z00-000
Cover, cylinder head lh
|
11600-82Z00-000 |
— | ||
|
3
|
3
11129-82Z00-000
Pin, dowel
|
11129-82Z00-000 |
— | ||
|
4
|
4
11515-82Z00-000
Plug, cyl block
|
11515-82Z00-000 |
— | ||
|
5
|
5
12933-82Z00-000
Seat, valve intake
|
12933-82Z00-000 |
— | ||
|
6
|
6
12933-82Z30-000
Seat, valve exhaust
|
12933-82Z30-000 |
— | ||
|
7
|
7
11128-82Z10-000
Bolt, cam shaft cap
|
11128-82Z10-000 |
— | ||
|
8
|
8
11128-82Z00-000
Bolt, cam shaft cap
|
11128-82Z00-000 |
— | ||
|
9
|
9
11118-82Z00-000
Washer
|
11118-82Z00-000 |
— | ||
|
10
|
10
11115-82Z20-000
Guide, valve intake
|
11115-82Z20-000 |
— | ||
|
11
|
11
11115-82Z40-000
Guide, valve exhaust
|
11115-82Z40-000 |
— | ||
|
12
|
12
11517-82Z40-000
Washer
|
11517-82Z40-000 |
— | ||
|
13
|
13
1138A-82Z40-000
Plug
|
1138A-82Z40-000 |
— | ||
|
14
|
14
1138A-82Z20-000
Plug
|
1138A-82Z20-000 |
— | ||
|
15
|
15
1128A-82Z10-000
Plug
|
1128A-82Z10-000 |
— |
