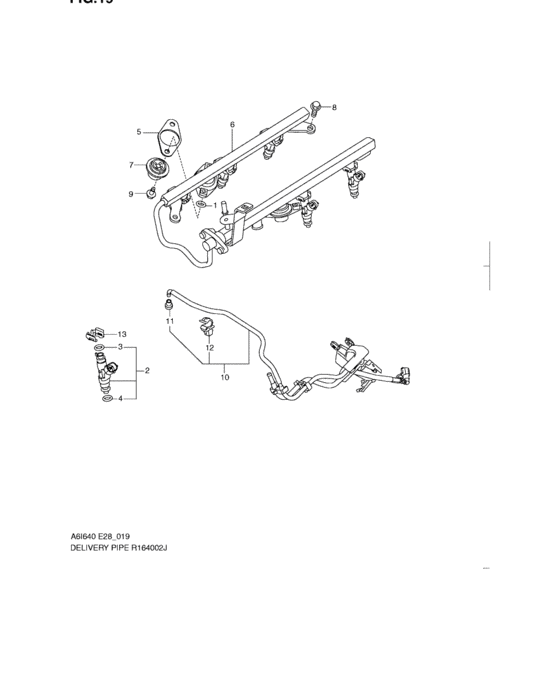

Delivery pipe (DELIVERY PIPE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15711-82Z40-000
O ring
|
15711-82Z40-000 |
— | ||
|
2
|
2
15710-82Z00-000
Injector assy, fuel
|
15710-82Z00-000 |
— | ||
|
3
|
3
15711-82Z00-000
O ring
|
15711-82Z00-000 |
— | ||
|
4
|
4
15711-82Z20-000
O ring
|
15711-82Z20-000 |
— | ||
|
5
|
5
15895-82Z10-000
Clamp
|
15895-82Z10-000 |
— | ||
|
6
|
6
15730-82Z10-000
Pipe, delivery
|
15730-82Z10-000 |
— | ||
|
7
|
7
15611-82Z00-000
Damper assy, fuel
|
15611-82Z00-000 |
— | ||
|
8
|
8
17848-50Z00-000
ボルト
|
17848-50Z00-000 |
— | ||
|
9
|
9
1784A-82Z00-000
Bolt
|
1784A-82Z00-000 |
— | ||
|
10
|
10
15880-82Z10-000
Hose, fuel
|
15880-82Z10-000 |
— | ||
|
11
|
11
15750-50Z00-000
コネクタ
|
15750-50Z00-000 |
— | ||
|
12
|
12
15895-50Z00-000
クランプ,フューエルホース
|
15895-50Z00-000 |
— | ||
|
13
|
13
15715-50Z01-000
カバー,インジェクタ
|
15715-50Z01-000 |
— |
