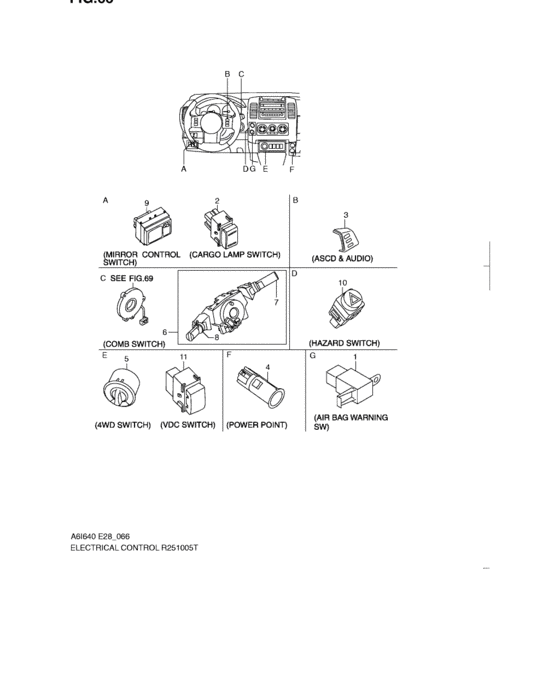

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38930-82Z00-000
Warning assy instrument
|
38930-82Z00-000 |
— | ||
|
2
|
2
39620-82Z00-000
Switch assy, cargo lamp
|
39620-82Z00-000 |
— | ||
|
3
|
3
37460-82Z30-000
Switch assy, steering
|
37460-82Z30-000 |
— | ||
|
4
|
4
39420-82Z00-000
Body, socket
|
39420-82Z00-000 |
— | ||
|
5
|
5
37865-82Z00-000
Switch assy, transfer
|
37865-82Z00-000 |
— | ||
|
6
|
6
37400-82Z01-000
Switch assy, combination
09 MODEL |
37400-82Z01-000 |
— | ||
|
6
|
6
37400-82Z70-000
Switch assy, combination
10 MODEL |
37400-82Z70-000 |
— | ||
|
7
|
7
37310-82Z10-000
Switch assy, wiper
~2009-4 |
37310-82Z10-000 |
— | ||
|
7
|
7
37310-82Z20-000
Switch assy, wiper
2009-5~ |
37310-82Z20-000 |
— | ||
|
8
|
8
37400-82Z50-000
Switch assy, turn signal
~2009-4 |
37400-82Z50-000 |
— | ||
|
8
|
8
37400-82Z60-000
Switch assy, turn signal
2009-5~ |
37400-82Z60-000 |
— | ||
|
9
|
9
37950-82Z00-000
Switch assy, mirror
|
37950-82Z00-000 |
— | ||
|
10
|
10
37430-82Z00-000
Switch assy, hazard warning
|
37430-82Z00-000 |
— | ||
|
11
|
11
35180-82Z00-000
Switch assy, vdc
W/VDC |
35180-82Z00-000 |
— |
