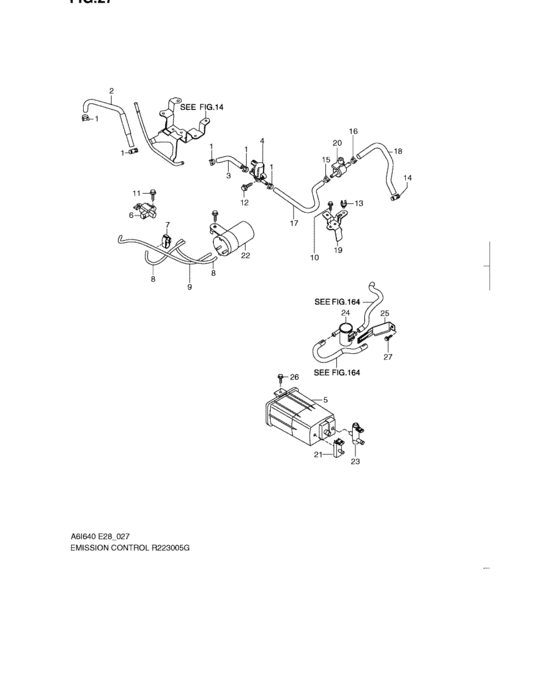

Emission control (EMISSION CONTROL) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17855-82Z00-000
Clamp
|
17855-82Z00-000 |
— | ||
|
2
|
2
15220-82Z10-000
Hose, evapo control
|
15220-82Z10-000 |
— | ||
|
3
|
3
15220-82Z20-000
Hose, evapo control
|
15220-82Z20-000 |
— | ||
|
4
|
4
18595-82Z00-000
Valve assy, pcv
|
18595-82Z00-000 |
— | ||
|
5
|
5
18560-82Z00-000
Canister assy
|
18560-82Z00-000 |
— | ||
|
6
|
6
13481-82Z00-000
Valve, solenoid
|
13481-82Z00-000 |
— | ||
|
7
|
7
15882-82Z10-000
Clip
|
15882-82Z10-000 |
— | ||
|
8
|
8
11193-82Z00-000
Hose, vacuum
L:180,#B2318-N3301 |
11193-82Z00-000 |
— | ||
|
9
|
9
13482-82Z00-000
Hose, vacuum
|
13482-82Z00-000 |
— | ||
|
10
|
10
1125A-82Z80-000
Bolt
|
1125A-82Z80-000 |
— | ||
|
11
|
11
3349A-82Z10-000
Bolt
|
3349A-82Z10-000 |
— | ||
|
12
|
12
33419-50Z00-000
ボルト,6X25
|
33419-50Z00-000 |
— | ||
|
13
|
13
18552-82Z00-000
Clip, hose
|
18552-82Z00-000 |
— | ||
|
14
|
14
17855-82Z00-000
Clamp
|
17855-82Z00-000 |
— | ||
|
15
|
15
17855-82Z00-000
Clamp
|
17855-82Z00-000 |
— | ||
|
16
|
16
16621-82Z20-000
Clamp
|
16621-82Z20-000 |
— | ||
|
17
|
17
18558-82Z10-000
Hose, evapo control
|
18558-82Z10-000 |
— | ||
|
18
|
18
18554-82Z00-000
Tube, evapo control
|
18554-82Z00-000 |
— | ||
|
19
|
19
18553-82Z00-000
Bracket, purge cont valve
|
18553-82Z00-000 |
— | ||
|
20
|
20
18117-82Z00-000
Valve assy, evapo service port
|
18117-82Z00-000 |
— | ||
|
21
|
21
18590-82Z00-000
Sensor, boost
|
18590-82Z00-000 |
— | ||
|
22
|
22
18580-82Z00-000
Tank assy, pressure
|
18580-82Z00-000 |
— | ||
|
23
|
23
18569-82Z00-000
Valve assy, control
09 MODEL |
18569-82Z00-000 |
— | ||
|
23
|
23
18569-82Z10-000
Valve assy, pressure
10 MODEL |
18569-82Z10-000 |
— | ||
|
24
|
24
18557-82Z00-000
Filter, canister
|
18557-82Z00-000 |
— | ||
|
25
|
25
18556-82Z00-000
Bracket, evaporator filter
|
18556-82Z00-000 |
— | ||
|
26
|
26
7171A-82Z00-000
Bolt
|
7171A-82Z00-000 |
— | ||
|
27
|
27
5925A-82Z50-000
Bolt
|
5925A-82Z50-000 |
— |
