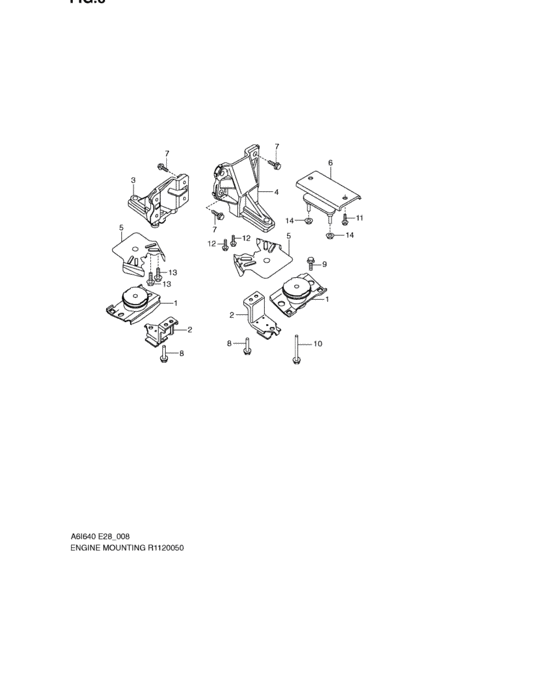

Engine mounting (ENGINE MOUNTING) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-82Z10-000
Mounting, eng fr
|
11510-82Z10-000 |
— | ||
|
2
|
2
11516-82Z00-000
Stopper, engine mounting
09 MODEL |
11516-82Z00-000 |
— | ||
|
2
|
2
11516-82Z20-000
Stopper, engine mounting
09 MODEL,2008-10~,10 MODEL |
11516-82Z20-000 |
— | ||
|
3
|
3
11610-82Z10-000
Mounting, engine rh
|
11610-82Z10-000 |
— | ||
|
4
|
4
11710-82Z10-000
Mounting, engine lh
|
11710-82Z10-000 |
— | ||
|
5
|
5
11514-82Z00-000
Plate, heat shield
|
11514-82Z00-000 |
— | ||
|
6
|
6
11810-82Z20-000
Mounting, engine rr
|
11810-82Z20-000 |
— | ||
|
7
|
7
11513-82Z10-000
Bolt
|
11513-82Z10-000 |
— | ||
|
8
|
8
11513-82Z00-000
Bolt
|
11513-82Z00-000 |
— | ||
|
9
|
9
11513-82Z20-000
Bolt
|
11513-82Z20-000 |
— | ||
|
10
|
10
11513-82Z40-000
Bolt
|
11513-82Z40-000 |
— | ||
|
11
|
11
11513-82Z30-000
Bolt
|
11513-82Z30-000 |
— | ||
|
12
|
12
1185A-82Z00-000
Bolt
|
1185A-82Z00-000 |
— | ||
|
13
|
13
1185A-82Z00-000
Bolt
|
1185A-82Z00-000 |
— | ||
|
14
|
14
1821A-82Z00-000
Nut
|
1821A-82Z00-000 |
— |
