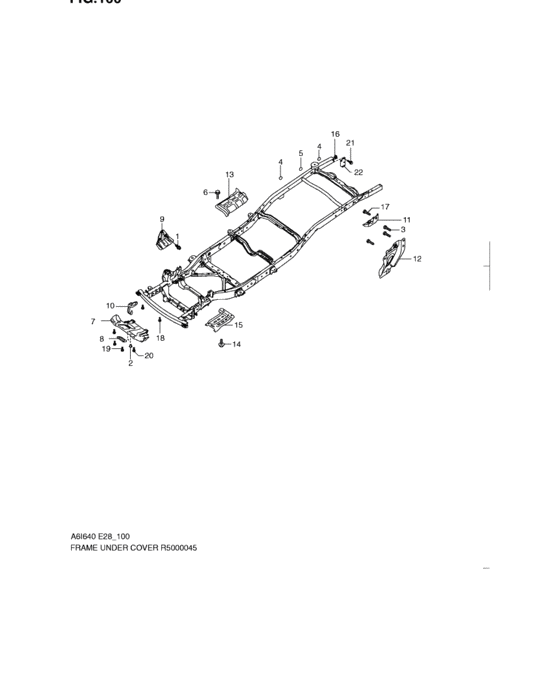

Frame under cover (FRAME UNDER COVER) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35153-50Z00-000
クリップ
|
35153-50Z00-000 |
— | ||
|
2
|
2
69524-82Z00-000
Grommet
|
69524-82Z00-000 |
— | ||
|
3
|
3
78122-82Z20-000
Screw
|
78122-82Z20-000 |
— | ||
|
4
|
4
68517-82Z00-000
Plug
|
68517-82Z00-000 |
— | ||
|
5
|
5
68517-82Z10-000
Plug
|
68517-82Z10-000 |
— | ||
|
6
|
6
14232-82Z00-000
Rivet
09 MODEL |
14232-82Z00-000 |
— | ||
|
6
|
6
14232-82Z10-000
Rivet
09 MODEL,2009-4~,10 MODEL |
14232-82Z10-000 |
— | ||
|
7
|
7
61448-82Z00-000
Cover, front under
|
61448-82Z00-000 |
— | ||
|
8
|
8
61449-82Z00-000
Cover, center under
|
61449-82Z00-000 |
— | ||
|
9
|
9
51819-82Z00-000
Cover, splash
|
51819-82Z00-000 |
— | ||
|
10
|
10
57164-82Z00-000
Hook, towing
|
57164-82Z00-000 |
— | ||
|
11
|
11
57818-82Z10-000
Bracket assy, canister
|
57818-82Z10-000 |
— | ||
|
12
|
12
57818-82Z00-000
Bracket assy, canister
|
57818-82Z00-000 |
— | ||
|
13
|
13
14231-82Z00-000
Insulator, heat
|
14231-82Z00-000 |
— | ||
|
14
|
14
49662-82Z00-000
Bolt
|
49662-82Z00-000 |
— | ||
|
15
|
15
72380-82Z20-000
Cover, engine under rh
|
72380-82Z20-000 |
— | ||
|
16
|
16
5954A-82Z00-000
Nut
|
5954A-82Z00-000 |
— | ||
|
17
|
17
5925A-82Z50-000
Bolt
|
5925A-82Z50-000 |
— | ||
|
18
|
18
5925A-82Z60-000
Bolt
|
5925A-82Z60-000 |
— | ||
|
19
|
19
5925A-82Z20-000
Bolt
|
5925A-82Z20-000 |
— | ||
|
20
|
20
65569-50Z00-000
ボルト,6X16
|
65569-50Z00-000 |
— | ||
|
21
|
21
57909-82Z00-000
Bolt
|
57909-82Z00-000 |
— | ||
|
22
|
22
57910-82Z00-000
Reinforce, hook
|
57910-82Z00-000 |
— |
