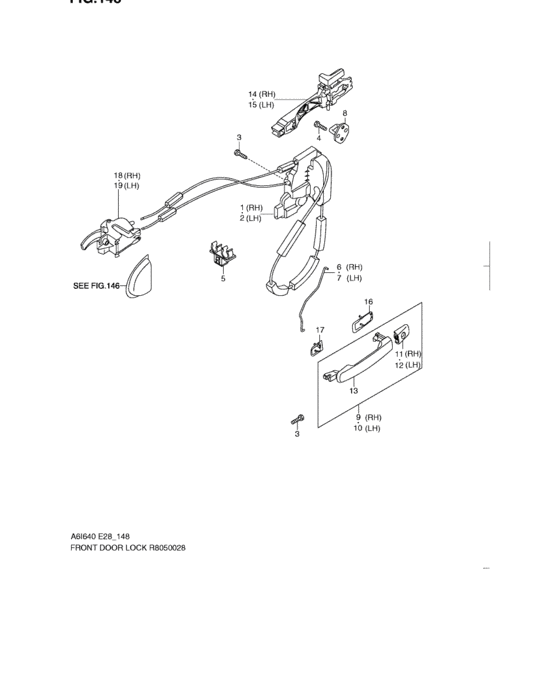

Front door lock (FRONT DOOR LOCK) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-82Z00-000
Latch assy, front door rh
|
82201-82Z00-000 |
— | ||
|
2
|
2
82202-82Z00-000
Latch assy, front door lh
|
82202-82Z00-000 |
— | ||
|
3
|
3
82215-50Z10-000
スクリュ
|
82215-50Z10-000 |
— | ||
|
4
|
4
73919-82Z00-000
Bolt
|
73919-82Z00-000 |
— | ||
|
5
|
5
82217-82Z10-000
Holder
|
82217-82Z10-000 |
— | ||
|
6
|
6
82211-82Z00-000
Rod, out handle rh
|
82211-82Z00-000 |
— | ||
|
7
|
7
82221-82Z00-000
Rod, out handle lh
|
82221-82Z00-000 |
— | ||
|
8
|
8
82610-82Z10-000
Striker, front door lock
|
82610-82Z10-000 |
— | ||
|
9
|
9
82812-82ZE0-000
Handle assy, door out rh
|
82812-82ZE0-000 |
— | ||
|
10
|
10
82822-82ZA0-000
Handle assy, door out lh
|
82822-82ZA0-000 |
— | ||
|
11
|
11
82813-82Z00-000
Cap, door out lh
|
82813-82Z00-000 |
— | ||
|
12
|
12
82823-82Z00-000
Cap, door out lh
|
82823-82Z00-000 |
— | ||
|
13
|
13
82812-82Z30-000
Handle, door out rh
|
82812-82Z30-000 |
— | ||
|
14
|
14
82811-82Z00-000
Frame, door out rh
|
82811-82Z00-000 |
— | ||
|
15
|
15
82821-82Z00-000
Frame, door out lh
|
82821-82Z00-000 |
— | ||
|
16
|
16
82814-82Z00-000
Pad, door out
|
82814-82Z00-000 |
— | ||
|
17
|
17
82815-82Z00-000
Cushion, door out
|
82815-82Z00-000 |
— | ||
|
18
|
18
83110-82Z00-000
Handle, door inside rh
|
83110-82Z00-000 |
— | ||
|
19
|
19
83130-82Z00-000
Handle, door inside lh
|
83130-82Z00-000 |
— |
