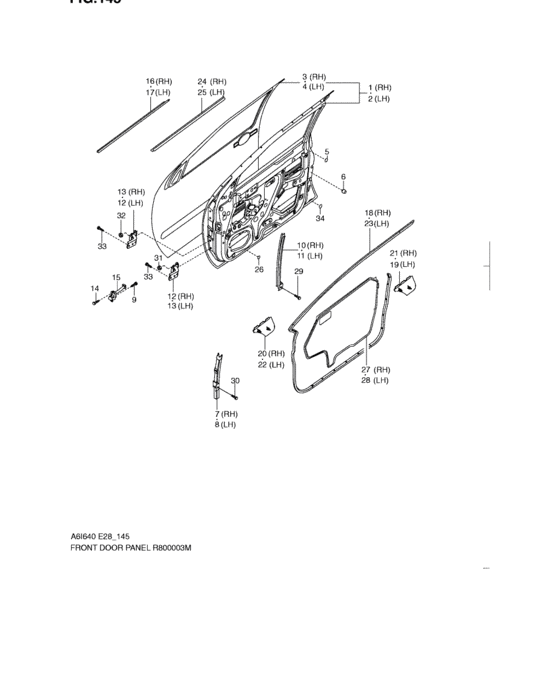

Front door panel (FRONT DOOR PANEL) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-82Z30-000
Panel, front door rh
|
68001-82Z30-000 |
— | ||
|
2
|
2
68002-82Z30-000
Panel, front door lh
|
68002-82Z30-000 |
— | ||
|
3
|
3
68001-82Z00-000
Panel, front door rh
|
68001-82Z00-000 |
— | ||
|
4
|
4
68002-82Z00-000
Panel, front door lh
|
68002-82Z00-000 |
— | ||
|
5
|
5
37281-50Z00-000
プラグ
|
37281-50Z00-000 |
— | ||
|
6
|
6
82711-82Z00-000
Stopper, door
|
82711-82Z00-000 |
— | ||
|
7
|
7
81710-82Z00-000
Sash, front door front rh
|
81710-82Z00-000 |
— | ||
|
8
|
8
81720-82Z00-000
Sash, front door front lh
|
81720-82Z00-000 |
— | ||
|
9
|
9
58119-82Z10-000
Bolt
|
58119-82Z10-000 |
— | ||
|
10
|
10
81730-82Z00-000
Sash, front door rear rh
|
81730-82Z00-000 |
— | ||
|
11
|
11
81740-82Z00-000
Sash, front door rear lh
|
81740-82Z00-000 |
— | ||
|
12
|
12
69310-82Z00-000
Hinge, front door
|
69310-82Z00-000 |
— | ||
|
13
|
13
69320-82Z00-000
Hinge, front door
|
69320-82Z00-000 |
— | ||
|
14
|
14
68117-50Z00-000
スクリュ
09 MODEL |
68117-50Z00-000 |
— | ||
|
14
|
14
68117-82Z00-000
Screw
09 MODEL:2009-6~,10 MODEL |
68117-82Z00-000 |
— | ||
|
15
|
15
81810-82Z00-000
Stop, front door open
|
81810-82Z00-000 |
— | ||
|
16
|
16
83851-82Z00-000
Weatherstrip, rh
|
83851-82Z00-000 |
— | ||
|
17
|
17
83861-82Z00-000
Weatherstrip, lh
|
83861-82Z00-000 |
— | ||
|
18
|
18
84641-82Z00-000
Weatherstrip, door opening rh
|
84641-82Z00-000 |
— | ||
|
19
|
19
84644-82Z00-000
Clip
|
84644-82Z00-000 |
— | ||
|
20
|
20
84645-82Z00-000
Clip
|
84645-82Z00-000 |
— | ||
|
21
|
21
84644-82Z10-000
Clip
|
84644-82Z10-000 |
— | ||
|
22
|
22
84645-82Z10-000
Clip
|
84645-82Z10-000 |
— | ||
|
23
|
23
84651-82Z00-000
Weatherstrip, door opening lh
|
84651-82Z00-000 |
— | ||
|
24
|
24
83719-82Z00-000
Weatherstrip, door inner rh
|
83719-82Z00-000 |
— | ||
|
25
|
25
83729-82Z00-000
Weatherstrip, door inner lh
|
83729-82Z00-000 |
— | ||
|
26
|
26
33932-50Z01-000
Cover, hole
|
33932-50Z01-000 |
— | ||
|
27
|
27
83913-82Z00-000
Screen, front sealing rh
09 MODEL |
83913-82Z00-000 |
— | ||
|
27
|
27
83913-82Z40-000
Screen, front sealing rh
09 MODEL:2009-3~,10 MODEL |
83913-82Z40-000 |
— | ||
|
28
|
28
83914-82Z00-000
Screen, front sealing lh
09 MODEL |
83914-82Z00-000 |
— | ||
|
28
|
28
83914-82Z40-000
Screen, front sealing lh
09 MODEL:2009-3~,10 MODEL |
83914-82Z40-000 |
— | ||
|
29
|
29
6931A-82Z10-000
Bolt
|
6931A-82Z10-000 |
— | ||
|
30
|
30
6931A-82Z10-000
Bolt
|
6931A-82Z10-000 |
— | ||
|
31
|
31
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
32
|
32
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
33
|
33
54451-82Z00-000
Bolt
|
54451-82Z00-000 |
— | ||
|
34
|
34
68112-50Z20-000
Cover, hole
|
68112-50Z20-000 |
— |
