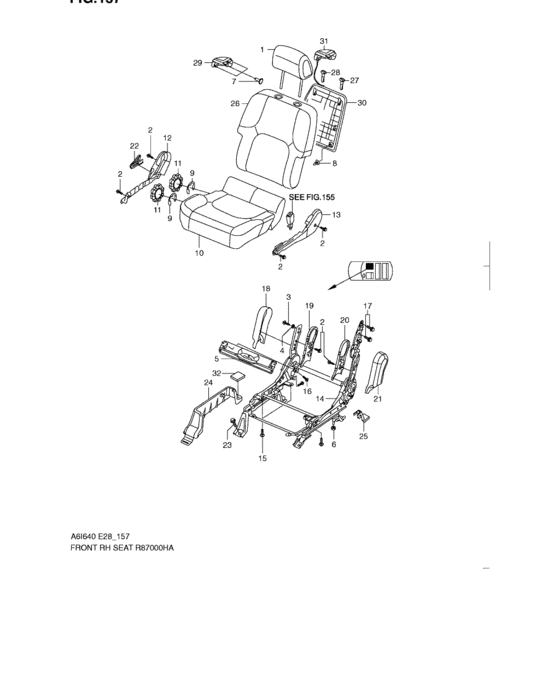

Front rh seat (FRONT RH SEAT) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-82ZC0-000
Headrest assy, front seat
09 MODEL,INTERIOR COLOR:GRAPHITE(K) |
86401-82ZC0-000 |
— | ||
|
1
|
1
86401-82ZI0-000
Headrest assy, front seat
09 MODEL,INTERIOR COLOR:DESERT(C) |
86401-82ZI0-000 |
— | ||
|
1
|
1
86403-82Z60-000
Headrest assy, front seat
10 MODEL,INTERIOR COLOR:GRAPHITE(K) |
86403-82Z60-000 |
— | ||
|
1
|
1
86401-82ZR0-000
Headrest assy, front seat
10 MODEL,INTERIOR COLOR:DESERT(C) |
86401-82ZR0-000 |
— | ||
|
2
|
2
86607-82Z10-000
Screw
|
86607-82Z10-000 |
— | ||
|
3
|
3
86607-82Z20-000
Screw
|
86607-82Z20-000 |
— | ||
|
4
|
4
86608-82Z00-000
Washer, plain
|
86608-82Z00-000 |
— | ||
|
5
|
5
85214-82Z01-000
Tether assy, fr seat
|
85214-82Z01-000 |
— | ||
|
6
|
6
86605-82Z00-000
Gasket
|
86605-82Z00-000 |
— | ||
|
7
|
7
86606-82Z20-000
Clip
|
86606-82Z20-000 |
— | ||
|
8
|
8
86606-82Z30-000
Clip
|
86606-82Z30-000 |
— | ||
|
9
|
9
86606-82Z10-000
Clip
|
86606-82Z10-000 |
— | ||
|
10
|
10
85101-82Z90-000
Cushion assy, front seat
INTERIOR COLOR:GRAPHITE(K) |
85101-82Z90-000 |
— | ||
|
10
|
10
85101-82Z00-000
Cushion assy, front seat
INTERIOR COLOR:DESERT(C) |
85101-82Z00-000 |
— | ||
|
11
|
11
85213-82Z80-000
Knob, lifter lever
INTERIOR COLOR:GRAPHITE(K) |
85213-82Z80-000 |
— | ||
|
11
|
11
85213-82Z00-000
Knob, lifter lever
INTERIOR COLOR:DESERT(C) |
85213-82Z00-000 |
— | ||
|
12
|
12
85211-82Z30-000
Finisher, fr seat cushion rh
INTERIOR COLOR:GRAPHITE(K) |
85211-82Z30-000 |
— | ||
|
12
|
12
85211-82Z10-000
Finisher, fr seat cushion rh
INTERIOR COLOR:DESERT(C) |
85211-82Z10-000 |
— | ||
|
13
|
13
85241-82Z20-000
Finisher, fr seat inner rh
INTERIOR COLOR:GRAPHITE(K) |
85241-82Z20-000 |
— | ||
|
13
|
13
85241-82Z00-000
Finisher, fr seat inner rh
INTERIOR COLOR:DESERT(C) |
85241-82Z00-000 |
— | ||
|
14
|
14
86601-82Z10-000
Adjuster assy, front seat rh
INTERIOR COLOR:GRAPHITE(K) |
86601-82Z10-000 |
— | ||
|
14
|
14
86601-82Z00-000
Adjuster assy, front seat rh
INTERIOR COLOR:DESERT(C) |
86601-82Z00-000 |
— | ||
|
15
|
15
86609-82Z10-000
Bolt
|
86609-82Z10-000 |
— | ||
|
16
|
16
86609-82Z30-000
Bolt
|
86609-82Z30-000 |
— | ||
|
17
|
17
86609-82Z20-000
Bolt
|
86609-82Z20-000 |
— | ||
|
18
|
18
85222-82Z20-000
Cover, reclining device outer,rh
INTERIOR COLOR:GRAPHITE(K) |
85222-82Z20-000 |
— | ||
|
18
|
18
85222-82Z00-000
Cover, reclining device outer,rh
INTERIOR COLOR:DESERT(C) |
85222-82Z00-000 |
— | ||
|
19
|
19
85223-82Z20-000
Cover, reclining device inner
INTERIOR COLOR:GRAPHITE(K) |
85223-82Z20-000 |
— | ||
|
19
|
19
85223-82Z00-000
Cover, reclining device inner
INTERIOR COLOR:DESERT(C) |
85223-82Z00-000 |
— | ||
|
20
|
20
85225-82Z60-000
Cover, reclining device lh
INTERIOR COLOR:GRAPHITE(K) |
85225-82Z60-000 |
— | ||
|
20
|
20
85225-82Z00-000
Cover, reclining device lh
INTERIOR COLOR:DESERT(C) |
85225-82Z00-000 |
— | ||
|
21
|
21
85224-82Z20-000
Cover, reclining device rh
INTERIOR COLOR:GRAPHITE(K) |
85224-82Z20-000 |
— | ||
|
21
|
21
85224-82Z00-000
Cover, reclining device rh
INTERIOR COLOR:DESERT(C) |
85224-82Z00-000 |
— | ||
|
22
|
22
85213-82Z60-000
Knob, reclining device
INTERIOR COLOR:GRAPHITE(K) |
85213-82Z60-000 |
— | ||
|
22
|
22
85213-82Z20-000
Knob, reclining device
INTERIOR COLOR:DESERT(C) |
85213-82Z20-000 |
— | ||
|
23
|
23
84915-82Z00-000
Bolt
|
84915-82Z00-000 |
— | ||
|
24
|
24
85495-82Z10-000
Cover, seat slide
INTERIOR COLOR:GRAPHITE(K) |
85495-82Z10-000 |
— | ||
|
24
|
24
85495-82Z00-000
Cover, seat slide
INTERIOR COLOR:DESERT(C) |
85495-82Z00-000 |
— | ||
|
25
|
25
85498-82Z20-000
Cover, adjust side
INTERIOR COLOR:GRAPHITE(K) |
85498-82Z20-000 |
— | ||
|
25
|
25
85498-82Z00-000
Cover, adjust side
INTERIOR COLOR:DESERT(C) |
85498-82Z00-000 |
— | ||
|
26
|
26
85305-82Z40-000
Back assy, front seat
INTERIOR COLOR:GRAPHITE(K) |
85305-82Z40-000 |
— | ||
|
26
|
26
85305-82Z30-000
Back assy, front seat
INTERIOR COLOR:DESERT(C) |
85305-82Z30-000 |
— | ||
|
27
|
27
85341-82Z50-000
Holder assy, headrest lock
INTERIOR COLOR:GRAPHITE(K) |
85341-82Z50-000 |
— | ||
|
27
|
27
85341-82Z30-000
Holder assy, headrest lock
INTERIOR COLOR:DESERT(C) |
85341-82Z30-000 |
— | ||
|
28
|
28
85341-82Z80-000
Holder assy, headrest free
INTERIOR COLOR:GRAPHITE(K) |
85341-82Z80-000 |
— | ||
|
28
|
28
85341-82Z60-000
Holder assy, headrest free
INTERIOR COLOR:DESERT(C) |
85341-82Z60-000 |
— | ||
|
29
|
29
85352-82Z20-000
Lever, front seat back
INTERIOR COLOR:GRAPHITE(K) |
85352-82Z20-000 |
— | ||
|
29
|
29
85352-82Z00-000
Lever, front seat back
INTERIOR COLOR:DESERT(C) |
85352-82Z00-000 |
— | ||
|
30
|
30
85390-82Z10-000
Board, seat back lh
INTERIOR COLOR:GRAPHITE(K) |
85390-82Z10-000 |
— | ||
|
30
|
30
85390-82Z00-000
Board, seat back lh
INTERIOR COLOR:DESERT(C) |
85390-82Z00-000 |
— | ||
|
31
|
31
87353-82Z20-000
Lever, front seat back
INTERIOR COLOR:GRAPHITE(K) |
87353-82Z20-000 |
— | ||
|
31
|
31
87353-82Z00-000
Lever, front seat back
INTERIOR COLOR:DESERT(C) |
87353-82Z00-000 |
— | ||
|
32
|
32
85492-82Z20-000
Cap, bolt
INTERIOR COLOR:GRAPHITE(K) |
85492-82Z20-000 |
— | ||
|
32
|
32
85492-82Z00-000
Cap, bolt
INTERIOR COLOR:DESERT(C) |
85492-82Z00-000 |
— |
