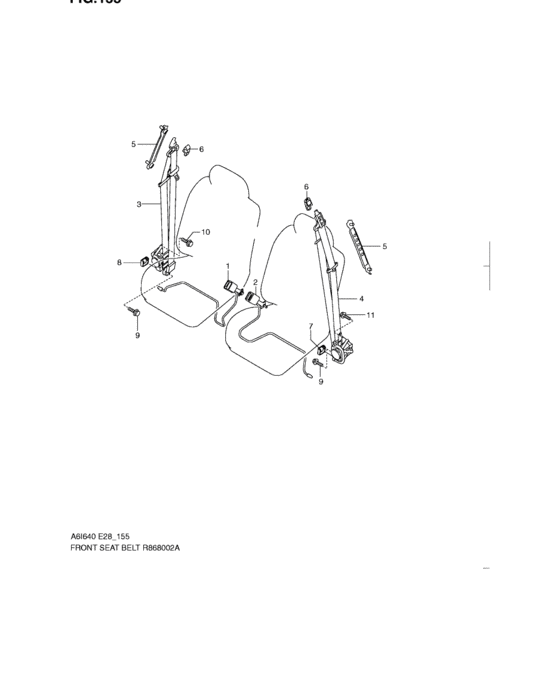

Front seat belt (FRONT SEAT BELT) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84910-82Z10-000
Buckle, front belt rh
INTERIOR COLOR:GRAPHITE(K) |
84910-82Z10-000 |
— | ||
|
1
|
1
84910-82Z00-000
Buckle, front belt rh
INTERIOR COLOR:DESERT(C) |
84910-82Z00-000 |
— | ||
|
2
|
2
84910-82Z40-000
Buckle, front belt lh
INTERIOR COLOR:GRAPHITE(K) |
84910-82Z40-000 |
— | ||
|
2
|
2
84910-82Z30-000
Buckle, front belt lh
INTERIOR COLOR:DESERT(C) |
84910-82Z30-000 |
— | ||
|
3
|
3
84920-82Z10-000
Tongue, fr belt rh
09 MODEL,INTERIOR COLOR:GRAPHITE(K) |
84920-82Z10-000 |
— | ||
|
3
|
3
84920-82Z70-000
Tongue, fr belt rh
10 MODEL,INTERIOR COLOR:GRAPHITE(K) |
84920-82Z70-000 |
— | ||
|
3
|
3
84920-82Z00-000
Tongue, fr belt rh
09 MODEL,INTERIOR COLOR:DESERT(C)] |
84920-82Z00-000 |
— | ||
|
3
|
3
84920-82Z60-000
Tongue, fr belt rh
10 MODEL,INTERIOR COLOR:DESERT(C)] |
84920-82Z60-000 |
— | ||
|
4
|
4
84940-82Z10-000
Tongue, fr belt lh
09 MODEL,INTERIOR COLOR:GRAPHITE(K) |
84940-82Z10-000 |
— | ||
|
4
|
4
84940-82Z70-000
Tongue, fr belt lh
10 MODEL,INTERIOR COLOR:GRAPHITE(K) |
84940-82Z70-000 |
— | ||
|
4
|
4
84940-82Z00-000
Tongue, fr belt lh
09 MODEL,INTERIOR COLOR:DESERT(C) |
84940-82Z00-000 |
— | ||
|
4
|
4
84940-82Z60-000
Tongue, fr belt lh
10 MODEL,INTERIOR COLOR:DESERT(C) |
84940-82Z60-000 |
— | ||
|
5
|
5
84990-82Z30-000
Adjuster, seat belt
INTERIOR COLOR:GRAPHITE(K) |
84990-82Z30-000 |
— | ||
|
5
|
5
84990-82Z20-000
Adjuster, seat belt
INTERIOR COLOR:DESERT(C) |
84990-82Z20-000 |
— | ||
|
6
|
6
84991-82Z80-000
Cover, belt anchor
INTERIOR COLOR:GRAPHITE(K) |
84991-82Z80-000 |
— | ||
|
6
|
6
84991-82Z70-000
Cover, belt anchor
INTERIOR COLOR:DESERT(C) |
84991-82Z70-000 |
— | ||
|
7
|
7
84992-82Z50-000
Cover, 2nd belt anchor
INTERIOR COLOR:GRAPHITE(K) |
84992-82Z50-000 |
— | ||
|
7
|
7
84992-82Z40-000
Cover, 2nd belt anchor
INTERIOR COLOR:DESERT(C) |
84992-82Z40-000 |
— | ||
|
8
|
8
84991-82ZE0-000
Cover, belt anchor
INTERIOR COLOR:GRAPHITE(K) |
84991-82ZE0-000 |
— | ||
|
8
|
8
84991-82ZD0-000
Cover, belt anchor
INTERIOR COLOR:DESERT(C) |
84991-82ZD0-000 |
— | ||
|
9
|
9
84915-82Z10-000
Bolt
|
84915-82Z10-000 |
— | ||
|
10
|
10
73919-50Z00-000
スクリュ,6X16
|
73919-50Z00-000 |
— | ||
|
11
|
11
73919-50Z00-000
スクリュ,6X16
|
73919-50Z00-000 |
— | ||
|
12
|
12
84955-82Z00-000
Belt, extender
NOT ILLUSTRATED |
84955-82Z00-000 |
— |
