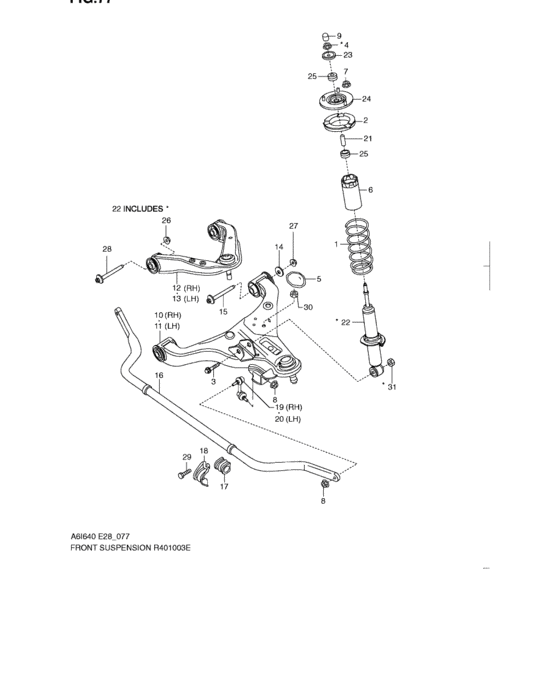

Front suspension (FRONT SUSPENSION) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41111-82Z20-000
Spring, front
|
41111-82Z20-000 |
— | ||
|
2
|
2
41211-82Z00-000
Seat
|
41211-82Z00-000 |
— | ||
|
3
|
3
45955-82Z00-000
Bolt
|
45955-82Z00-000 |
— | ||
|
4
|
4
46636-82Z20-000
Nut
|
46636-82Z20-000 |
— | ||
|
5
|
5
42111-82Z00-000
Stopper, front bump
|
42111-82Z00-000 |
— | ||
|
6
|
6
41931-82Z00-000
Cover, dust
|
41931-82Z00-000 |
— | ||
|
7
|
7
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
|
8
|
8
46636-82Z10-000
Nut
|
46636-82Z10-000 |
— | ||
|
9
|
9
41724-82Z00-000
Cap
|
41724-82Z00-000 |
— | ||
|
10
|
10
45201-82Z10-000
Link, front suspension low rh
|
45201-82Z10-000 |
— | ||
|
11
|
11
45202-82Z10-000
Link, front suspension low lh
|
45202-82Z10-000 |
— | ||
|
12
|
12
45203-82Z00-000
Link, suspension upper rh
|
45203-82Z00-000 |
— | ||
|
13
|
13
45204-82Z00-000
Link, suspension upper lh
|
45204-82Z00-000 |
— | ||
|
14
|
14
45531-82Z00-000
Disc, front suspension
|
45531-82Z00-000 |
— | ||
|
15
|
15
45256-82Z00-000
Pin
|
45256-82Z00-000 |
— | ||
|
16
|
16
42311-82Z10-000
Bar, front stabilizer
|
42311-82Z10-000 |
— | ||
|
17
|
17
42412-82Z01-000
Bush
09 MODEL |
42412-82Z01-000 |
— | ||
|
17
|
17
42412-82Z20-000
Bush
09 MODEL,2009-4~,10 MODEL |
42412-82Z20-000 |
— | ||
|
18
|
18
42415-82Z00-000
Clamp, fr stabilizer
|
42415-82Z00-000 |
— | ||
|
19
|
19
42420-82Z10-000
Rod, connecting stabilizer
|
42420-82Z10-000 |
— | ||
|
20
|
20
42420-82Z00-000
Rod, connecting stabilizer
09 MODEL |
42420-82Z00-000 |
— | ||
|
20
|
20
42420-82Z10-000
Rod, connecting stabilizer
09 MODEL,2009-4~ |
42420-82Z10-000 |
— | ||
|
21
|
21
41815-82Z00-000
Collar, rr shock absorber
|
41815-82Z00-000 |
— | ||
|
22
|
22
41601-82Z00-000
Absorber, shock front
09 MODEL |
41601-82Z00-000 |
— | ||
|
22
|
22
45000-82Z00-000
Fr shock absorber kit
10 MODEL |
45000-82Z00-000 |
— | ||
|
23
|
23
41813-82Z00-000
Washer, rr shock absorber
|
41813-82Z00-000 |
— | ||
|
24
|
24
41711-82Z00-000
Bracket, front shock absorber
|
41711-82Z00-000 |
— | ||
|
25
|
25
41812-82Z00-000
Bushing, rr shock absorber
|
41812-82Z00-000 |
— | ||
|
26
|
26
4532A-82Z30-000
Nut
|
4532A-82Z30-000 |
— | ||
|
27
|
27
4532A-82Z30-000
Nut
|
4532A-82Z30-000 |
— | ||
|
28
|
28
4593A-82Z00-000
Bolt
|
4593A-82Z00-000 |
— | ||
|
29
|
29
4526A-82Z00-000
Bolt
|
4526A-82Z00-000 |
— | ||
|
30
|
30
4532A-82Z20-000
Nut
|
4532A-82Z20-000 |
— | ||
|
31
|
31
4532A-82Z10-000
Nut
|
4532A-82Z10-000 |
— | ||
|
32
|
32
41816-82Z00-000
Cover, rr shock absorber
10 MODEL,NOT ILLUSTRATED |
41816-82Z00-000 |
— | ||
|
33
|
33
41251-82Z00-000
Adapter, dust cover
10 MODEL,NOT ILLUSTRATED |
41251-82Z00-000 |
— | ||
|
34
|
34
41231-82Z00-000
Cover, dust
10 MODEL,NOT ILLUSTRATED |
41231-82Z00-000 |
— |
