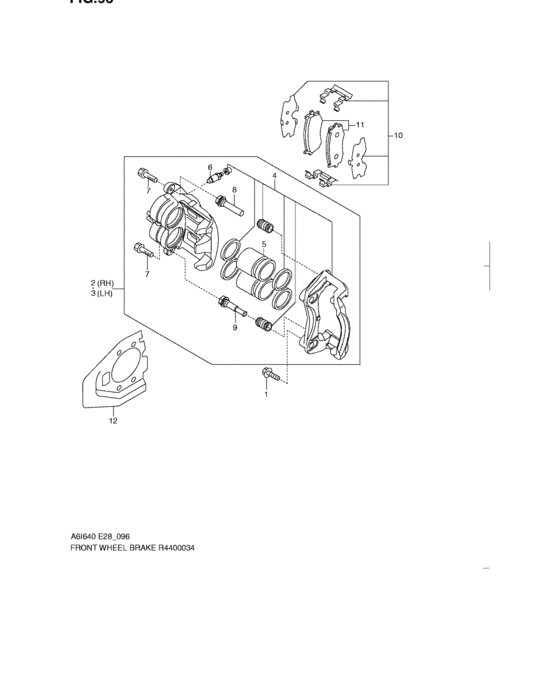

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55164-50Z01-000
ボルト
|
55164-50Z01-000 |
— | ||
|
2
|
2
55110-82Z10-000
Caliper, fr brake rh
|
55110-82Z10-000 |
— | ||
|
3
|
3
55120-82Z10-000
Caliper, fr brake lh
|
55120-82Z10-000 |
— | ||
|
4
|
4
55830-82Z00-000
Seal set, front brake
|
55830-82Z00-000 |
— | ||
|
5
|
5
55840-82Z00-000
Piston, cylinder
|
55840-82Z00-000 |
— | ||
|
6
|
6
55473-82Z10-000
Plug, bleeder
|
55473-82Z10-000 |
— | ||
|
7
|
7
55192-82Z30-000
Bolt, pin
|
55192-82Z30-000 |
— | ||
|
8
|
8
55191-50Z00-000
スライドピン
|
55191-50Z00-000 |
— | ||
|
9
|
9
55192-82Z00-000
Slide pin set
|
55192-82Z00-000 |
— | ||
|
10
|
10
55200-82Z00-000
Shim set, fr disc brake
|
55200-82Z00-000 |
— | ||
|
11
|
11
55210-82Z00-000
Pad set
|
55210-82Z00-000 |
— | ||
|
12
|
12
55321-82Z00-000
Cover, brake disc
|
55321-82Z00-000 |
— |
