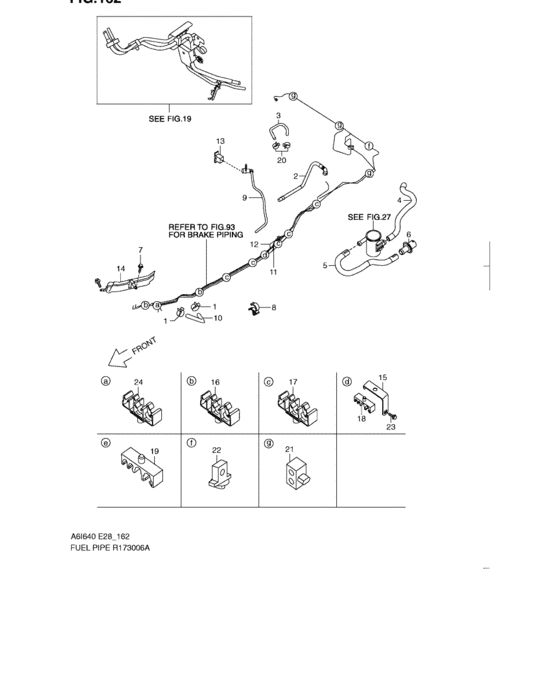

Fuel pipe (FUEL PIPE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16621-82Z00-000
Clamp
09 MODEL |
16621-82Z00-000 |
— | ||
|
1
|
1
16621-82Z20-000
Clamp
10 MODEL |
16621-82Z20-000 |
— | ||
|
2
|
2
15812-82Z10-000
Tube, ventilation
|
15812-82Z10-000 |
— | ||
|
3
|
3
89461-82Z00-000
Hose, evaporator
09 MODEL |
89461-82Z00-000 |
— | ||
|
3
|
3
89461-82Z10-000
Hose, evaporator
10 MODEL |
89461-82Z10-000 |
— | ||
|
4
|
4
89290-82Z00-000
Hose
|
89290-82Z00-000 |
— | ||
|
5
|
5
89290-82Z10-000
Hose
|
89290-82Z10-000 |
— | ||
|
6
|
6
89310-82Z00-000
Connector
|
89310-82Z00-000 |
— | ||
|
7
|
7
38421-50Z00-000
スクリュ,6X16
|
38421-50Z00-000 |
— | ||
|
8
|
8
15118-82Z00-000
Clamp
|
15118-82Z00-000 |
— | ||
|
9
|
9
15112-82Z00-000
Tube assy, fuel tank outlet
|
15112-82Z00-000 |
— | ||
|
10
|
10
15113-82Z00-000
Hose, evaporation
|
15113-82Z00-000 |
— | ||
|
11
|
11
15114-82Z10-000
Tube, breather
09 MODEL |
15114-82Z10-000 |
— | ||
|
11
|
11
15114-82Z40-000
Tube, breather
10 MODEL |
15114-82Z40-000 |
— | ||
|
12
|
12
15115-82Z10-000
Tube, fuel feed
|
15115-82Z10-000 |
— | ||
|
13
|
13
15116-82Z00-000
Retainer, quick connector
09 MODEL |
15116-82Z00-000 |
— | ||
|
13
|
13
15750-82Z00-000
Retainer, quick connector
10 MODEL |
15750-82Z00-000 |
— | ||
|
14
|
14
15117-82Z00-000
Protector, fuel tube
|
15117-82Z00-000 |
— | ||
|
15
|
15
15882-82Z40-000
Clamp
|
15882-82Z40-000 |
— | ||
|
16
|
16
15119-82Z20-000
Clip
|
15119-82Z20-000 |
— | ||
|
17
|
17
51761-82Z00-000
Clamp
|
51761-82Z00-000 |
— | ||
|
18
|
18
15883-82Z00-000
Clip
|
15883-82Z00-000 |
— | ||
|
19
|
19
15119-82Z30-000
Clip
|
15119-82Z30-000 |
— | ||
|
20
|
20
15118-82Z00-000
Clamp
09 MODEL |
15118-82Z00-000 |
— | ||
|
20
|
20
16621-82Z20-000
Clamp
10 MODEL |
16621-82Z20-000 |
— | ||
|
21
|
21
15119-82Z00-000
Clip
|
15119-82Z00-000 |
— | ||
|
22
|
22
15119-82Z10-000
Clip
|
15119-82Z10-000 |
— | ||
|
23
|
23
38421-50Z00-000
スクリュ,6X16
|
38421-50Z00-000 |
— | ||
|
24
|
24
15894-82Z00-000
Clip
|
15894-82Z00-000 |
— |
