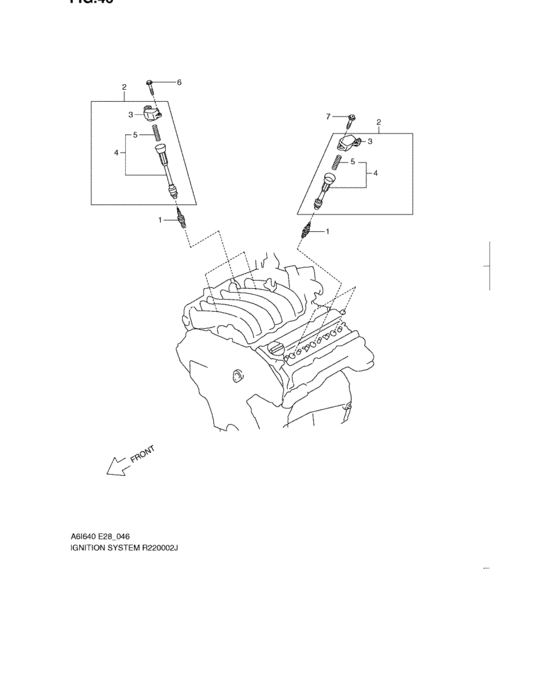

Ignition System (IGNITION SYSTEM) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11182-82Z10-000
Spark Plug
|
11182-82Z10-000 |
— | ||
|
2
|
2
33400-82Z10-000
Coil assy, ignition
|
33400-82Z10-000 |
— | ||
|
3
|
3
33400-82Z00-000
Coil assy, ignition
|
33400-82Z00-000 |
— | ||
|
4
|
4
33411-82Z00-000
Protector, ignition coil
|
33411-82Z00-000 |
— | ||
|
5
|
5
33412-82Z00-000
Spring, ignition coil
|
33412-82Z00-000 |
— | ||
|
6
|
6
12838-82Z10-000
Bolt
|
12838-82Z10-000 |
— | ||
|
7
|
7
12838-82Z10-000
Bolt
|
12838-82Z10-000 |
— |
