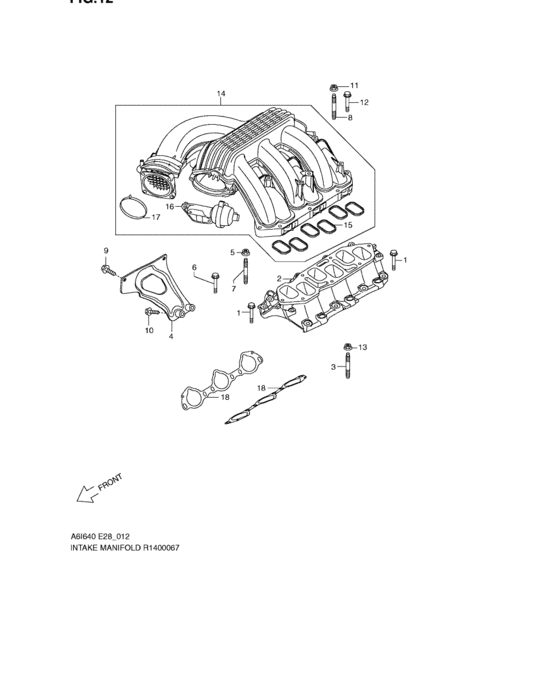

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14116-82Z10-000
Bolt
|
14116-82Z10-000 |
— | ||
|
2
|
2
13110-82Z10-000
Manifold assy, intake
|
13110-82Z10-000 |
— | ||
|
3
|
3
14118-82Z30-000
Bolt, stud
|
14118-82Z30-000 |
— | ||
|
4
|
4
13111-82Z20-000
Support, manifold
|
13111-82Z20-000 |
— | ||
|
5
|
5
61919-50Z00-000
ナット,M6
|
61919-50Z00-000 |
— | ||
|
6
|
6
1105A-82Z10-000
Bolt
|
1105A-82Z10-000 |
— | ||
|
7
|
7
1137A-82Z00-000
Stud
|
1137A-82Z00-000 |
— | ||
|
8
|
8
1137A-82Z00-000
Stud
|
1137A-82Z00-000 |
— | ||
|
9
|
9
1185A-82Z10-000
Bolt
|
1185A-82Z10-000 |
— | ||
|
10
|
10
1313A-82Z10-000
Bolt
|
1313A-82Z10-000 |
— | ||
|
11
|
11
61919-50Z00-000
ナット,M6
|
61919-50Z00-000 |
— | ||
|
12
|
12
1105A-82Z10-000
Bolt
|
1105A-82Z10-000 |
— | ||
|
13
|
13
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
14
|
14
13110-82Z20-000
Manifold assy, intake
|
13110-82Z20-000 |
— | ||
|
15
|
15
13422-82Z00-000
Gasket, adapter
|
13422-82Z00-000 |
— | ||
|
16
|
16
13109-82Z00-000
Valve assy, power
|
13109-82Z00-000 |
— | ||
|
17
|
17
13108-82Z00-000
Gasket, throttle chamber
|
13108-82Z00-000 |
— | ||
|
18
|
18
13119-82Z00-000
Gasket, intk manf
|
13119-82Z00-000 |
— |
