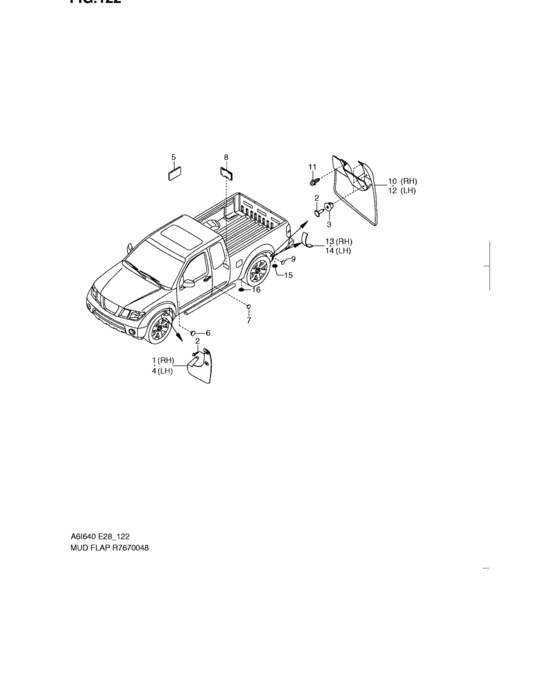

Mud flap (MUD FLAP) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72212-82Z00-000
Mud guard rh
|
72212-82Z00-000 |
— | ||
| replacement | |||||
|
1
|
1
990B0-63002-000
Eq frt splash g
|
990B0-63002-000 |
— | ||
|
2
|
2
77265-82Z80-000
Screw
|
77265-82Z80-000 |
— | ||
|
3
|
3
69524-82Z30-000
Grommet
|
69524-82Z30-000 |
— | ||
|
4
|
4
72222-82Z00-000
Mud guard lh
|
72222-82Z00-000 |
— | ||
| replacement | |||||
|
4
|
4
990B0-63002-000
Eq frt splash g
|
990B0-63002-000 |
— | ||
|
5
|
5
77191-82Z10-000
Cover, hole
|
77191-82Z10-000 |
— | ||
|
6
|
6
68517-50Z10-000
プラグ
|
68517-50Z10-000 |
— | ||
|
7
|
7
75227-82Z20-000
Plug
|
75227-82Z20-000 |
— | ||
|
8
|
8
77330-82Z10-000
Outlet, ventilator
|
77330-82Z10-000 |
— | ||
|
9
|
9
68517-82Z90-000
Plug
|
68517-82Z90-000 |
— | ||
|
10
|
10
72230-82Z00-000
Mud guard, rr rh
|
72230-82Z00-000 |
— | ||
| replacement | |||||
|
10
|
10
72230-82Z01-000
Mud guard,rr l
|
72230-82Z01-000 |
— | ||
|
11
|
11
58116-50Z00-000
クリップ
|
58116-50Z00-000 |
— | ||
|
12
|
12
72240-82Z00-000
Mud guard, rr lh
|
72240-82Z00-000 |
— | ||
| replacement | |||||
|
12
|
12
72230-82Z01-000
Mud guard,rr l
|
72230-82Z01-000 |
— | ||
|
13
|
13
72231-82Z00-000
Protector, mud guard rh
|
72231-82Z00-000 |
— | ||
|
14
|
14
72241-82Z00-000
Protector, mud guard lh
|
72241-82Z00-000 |
— | ||
|
15
|
15
77269-50Z11-000
プラグ
|
77269-50Z11-000 |
— | ||
|
16
|
16
37281-50Z00-000
プラグ
|
37281-50Z00-000 |
— | ||
