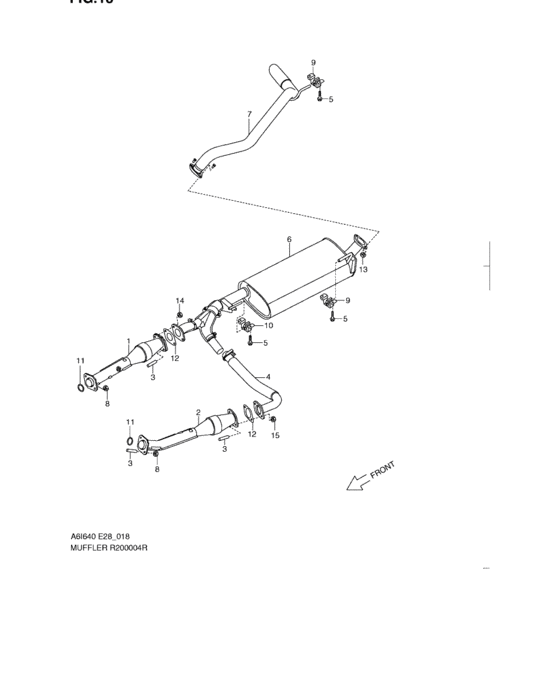

Muffler (MUFFLER) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-82Z00-000
Pipe, exhaust
|
14190-82Z00-000 |
— | ||
|
2
|
2
14190-82Z20-000
Pipe, exhaust
|
14190-82Z20-000 |
— | ||
|
3
|
3
14195-82Z00-000
Bolt
|
14195-82Z00-000 |
— | ||
|
4
|
4
14250-82Z00-000
Pipe, exhaust
|
14250-82Z00-000 |
— | ||
|
5
|
5
14116-82Z00-000
Bolt
|
14116-82Z00-000 |
— | ||
|
6
|
6
14260-82Z20-000
Muffler assy, exhaust ctr
09 MODEL |
14260-82Z20-000 |
— | ||
| replacement | |||||
|
6
|
6
14260-82Z50-000
Muffler assy, exhaust ctr
09 MODEL |
14260-82Z50-000 |
— | ||
|
6
|
6
14260-82Z50-000
Muffler assy, exhaust ctr
10 MODEL |
14260-82Z50-000 |
— | ||
|
7
|
7
14630-82Z30-000
Pipe, muffler tail
|
14630-82Z30-000 |
— | ||
|
8
|
8
14196-82Z01-000
Nut
|
14196-82Z01-000 |
— | ||
| replacement | |||||
|
8
|
8
14196-82Z00-000
Nut
|
14196-82Z00-000 |
— | ||
|
9
|
9
14281-82Z00-000
Mounting, muf
|
14281-82Z00-000 |
— | ||
|
10
|
10
14281-82Z10-000
Mounting, muf
|
14281-82Z10-000 |
— | ||
|
11
|
11
14184-82Z00-000
Gasket, muffler
|
14184-82Z00-000 |
— | ||
|
12
|
12
14183-82Z00-000
Gasket
|
14183-82Z00-000 |
— | ||
|
13
|
13
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
|
14
|
14
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
|
15
|
15
1525A-82Z00-000
Nut
|
1525A-82Z00-000 |
— | ||
