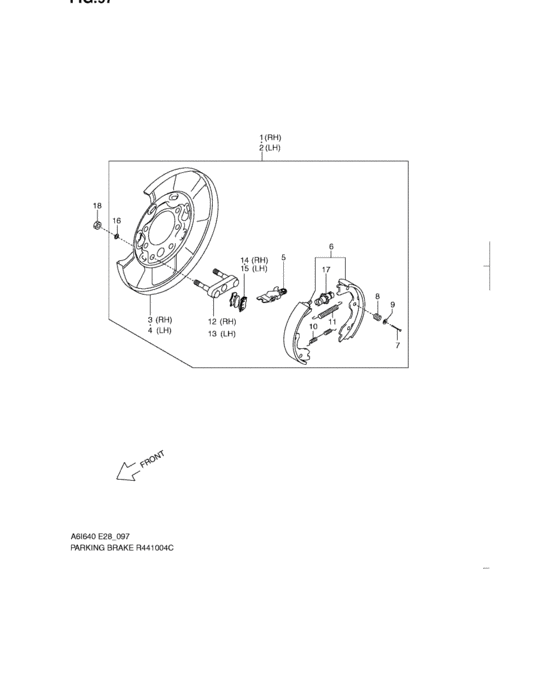

Parking brake (PARKING BRAKE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53001-82Z10-000
Brake assy, parking rear rh
09 MODEL |
53001-82Z10-000 |
— | ||
|
1
|
1
53001-82Z00-000
Brake assy, parking rear rh
10 MODEL |
53001-82Z00-000 |
— | ||
|
2
|
2
53002-82Z00-000
Brake assy, parking rear lh
09 MODEL |
53002-82Z00-000 |
— | ||
|
2
|
2
53002-82Z10-000
Brake assy, parking rear lh
09 MODEL,2009-5~ |
53002-82Z10-000 |
— | ||
|
3
|
3
55621-82Z00-000
Cover, rr brake disc dist rh
09 MODEL |
55621-82Z00-000 |
— | ||
|
3
|
3
55621-82Z10-000
Cover, rr brake disc dust rh
09 MODEL,2009-5~ |
55621-82Z10-000 |
— | ||
|
4
|
4
55622-82Z00-000
Cover, rr brake disc dust rh
09 MODEL |
55622-82Z00-000 |
— | ||
|
4
|
4
55622-82Z10-000
Cover, rr brake disc dust lh
09 MODEL,2009-5~ |
55622-82Z10-000 |
— | ||
|
5
|
5
53730-82Z00-000
Lever, parking shoe lh
|
53730-82Z00-000 |
— | ||
|
6
|
6
55810-82Z00-000
Pad set
|
55810-82Z00-000 |
— | ||
|
7
|
7
53241-82Z00-000
Pin, shoe hold down
|
53241-82Z00-000 |
— | ||
|
8
|
8
53243-82Z00-000
Spring, shoe hold down
|
53243-82Z00-000 |
— | ||
|
9
|
9
53243-82Z10-000
Retainer, spring
|
53243-82Z10-000 |
— | ||
|
10
|
10
53232-82Z00-000
Spring, shoe return lower
|
53232-82Z00-000 |
— | ||
|
11
|
11
53331-82Z00-000
Spring, shoe return upper
|
53331-82Z00-000 |
— | ||
|
12
|
12
53831-82Z00-000
Block, anchor rh
|
53831-82Z00-000 |
— | ||
|
13
|
13
53881-82Z00-000
Block, anchor lh
|
53881-82Z00-000 |
— | ||
|
14
|
14
53831-82Z10-000
Block, anchor rh
|
53831-82Z10-000 |
— | ||
|
15
|
15
53881-82Z10-000
Block, anchor lh
|
53881-82Z10-000 |
— | ||
|
16
|
16
53823-82Z00-000
Washer
|
53823-82Z00-000 |
— | ||
|
17
|
17
53810-82Z00-000
Adjuster assy, rr brake
|
53810-82Z00-000 |
— | ||
|
18
|
18
53822-82Z00-000
Nut
|
53822-82Z00-000 |
— |
