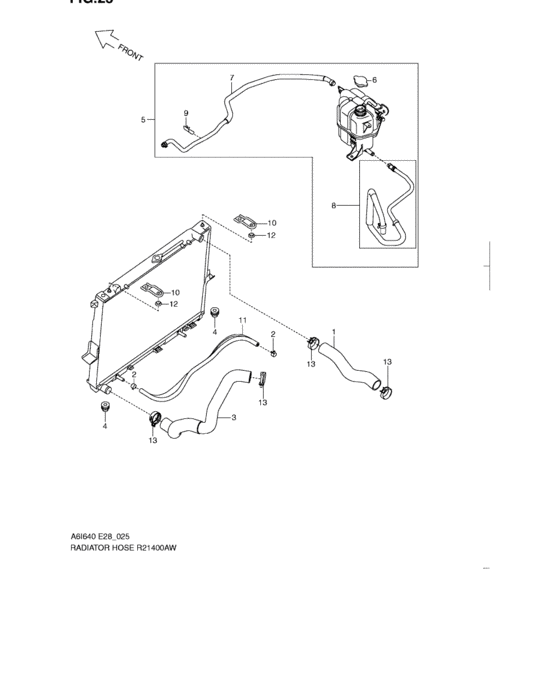

Radiator hose (RADIATOR HOSE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17852-82Z10-000
Hose, radiator inlet
|
17852-82Z10-000 |
— | ||
|
2
|
2
17873-50Z01-000
クランプ,ウォータホース
|
17873-50Z01-000 |
— | ||
|
3
|
3
17854-82Z10-000
Hose, radiator outlet
|
17854-82Z10-000 |
— | ||
|
4
|
4
17879-82Z10-000
Mount, radiator
|
17879-82Z10-000 |
— | ||
|
5
|
5
17930-82Z20-000
Tank assy, reserve
|
17930-82Z20-000 |
— | ||
|
6
|
6
17920-82Z00-000 Cap assy, radiator |
17920-82Z00-000 |
US $44.53 |
||
|
7
|
7
17939-82Z10-000
Hose, reserve tank
|
17939-82Z10-000 |
— | ||
|
8
|
8
17939-82Z20-000
Hose, reserve tank
|
17939-82Z20-000 |
— | ||
|
9
|
9
17941-82Z10-000
Clamp
|
17941-82Z10-000 |
— | ||
|
10
|
10
17861-82Z00-000
Bracket, radiator mounting
|
17861-82Z00-000 |
— | ||
|
11
|
11
22938-82Z10-000
Hose, oil cooler
|
22938-82Z10-000 |
— | ||
|
12
|
12
17879-82Z00-000
Mount, radiator upper
|
17879-82Z00-000 |
— | ||
|
13
|
13
17855-82Z40-000
Clamp
|
17855-82Z40-000 |
— |
