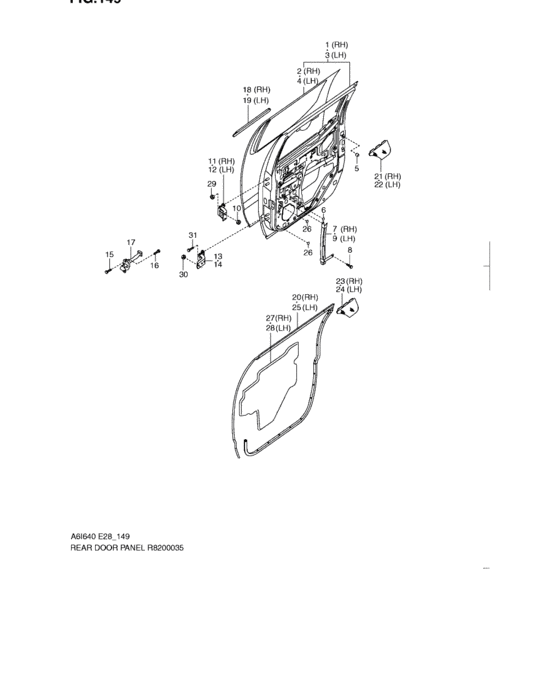

Rear door panel (REAR DOOR PANEL) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-82Z00-000
Panel, rear door rh
|
68003-82Z00-000 |
— | ||
|
2
|
2
68511-82Z00-000
Panel, rear door outer rh
|
68511-82Z00-000 |
— | ||
|
3
|
3
68004-82Z00-000
Panel, rear door lh
|
68004-82Z00-000 |
— | ||
|
4
|
4
68711-82Z00-000
Panel, rear door outer lh
|
68711-82Z00-000 |
— | ||
|
5
|
5
82711-82Z00-000
Stopper, door
|
82711-82Z00-000 |
— | ||
|
6
|
6
37281-50Z00-000
プラグ
|
37281-50Z00-000 |
— | ||
|
7
|
7
81770-82Z10-000
Sash assy, rear door front rh
|
81770-82Z10-000 |
— | ||
|
8
|
8
15120-82Z20-000
Screw
|
15120-82Z20-000 |
— | ||
|
9
|
9
81780-82Z10-000
Sash assy, rear door front lh
|
81780-82Z10-000 |
— | ||
|
10
|
10
68126-82Z00-000
Nut
|
68126-82Z00-000 |
— | ||
|
11
|
11
84120-82Z10-000
Arm, slide door rh
|
84120-82Z10-000 |
— | ||
|
12
|
12
84220-82Z00-000
Arm, slide door lh
|
84220-82Z00-000 |
— | ||
|
13
|
13
69310-82Z10-000
Hinge, front door
|
69310-82Z10-000 |
— | ||
|
14
|
14
69320-82Z10-000
Hinge, front door
|
69320-82Z10-000 |
— | ||
|
15
|
15
68117-50Z00-000
スクリュ
09 MODEL |
68117-50Z00-000 |
— | ||
|
15
|
15
68117-82Z00-000
Screw
09 MODEL:2009-6~,10 MODEL |
68117-82Z00-000 |
— | ||
|
16
|
16
58119-82Z10-000
Bolt
|
58119-82Z10-000 |
— | ||
|
17
|
17
82630-82Z10-000
Striker, slide door rh
|
82630-82Z10-000 |
— | ||
|
18
|
18
83739-82Z00-000
Molding, fr door rh
|
83739-82Z00-000 |
— | ||
|
19
|
19
83749-82Z00-000
Molding, fr door lh
|
83749-82Z00-000 |
— | ||
|
20
|
20
84661-82Z10-000
Weatherstrip, rr dr opening rh
|
84661-82Z10-000 |
— | ||
|
21
|
21
84642-82Z00-000
Clip
|
84642-82Z00-000 |
— | ||
|
22
|
22
84652-82Z00-000
Clip
|
84652-82Z00-000 |
— | ||
|
23
|
23
84642-82Z20-000
Clip
|
84642-82Z20-000 |
— | ||
|
24
|
24
84652-82Z20-000
Clip
|
84652-82Z20-000 |
— | ||
|
25
|
25
84671-82Z10-000
Weatherstrip slide door
|
84671-82Z10-000 |
— | ||
|
26
|
26
83715-82Z00-000
Cover, hole
09 MODEL |
83715-82Z00-000 |
— | ||
|
26
|
26
33932-50Z01-000
Cover, hole
09 MODEL:2008-12~ |
33932-50Z01-000 |
— | ||
|
26
|
26
68112-50Z20-000
Cover, hole
10 MODEL |
68112-50Z20-000 |
— | ||
|
27
|
27
83913-82Z30-000
Screen, rear door sealing rh
09 MODEL |
83913-82Z30-000 |
— | ||
|
27
|
27
83913-82Z50-000
Screen, rear door sealing rh
09 MODEL:2009-4~,10 MODEL |
83913-82Z50-000 |
— | ||
|
28
|
28
83914-82Z30-000
Screen, rear door sealing lh
09 MODEL |
83914-82Z30-000 |
— | ||
|
28
|
28
83914-82Z50-000
Screen, rear door sealing lh
09 MODEL:2009-4~,10 MODEL |
83914-82Z50-000 |
— | ||
|
29
|
29
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
30
|
30
5510A-82Z40-000
Nut
|
5510A-82Z40-000 |
— | ||
|
31
|
31
54451-82Z00-000
Bolt
|
54451-82Z00-000 |
— |
