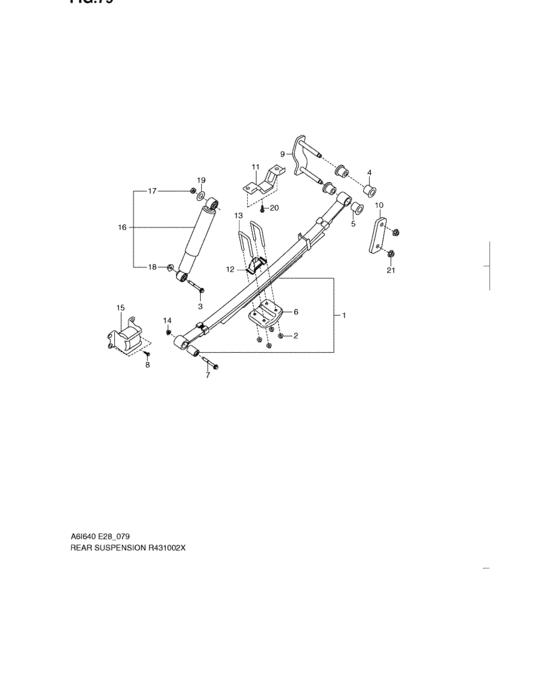

Rear suspension (REAR SUSPENSION) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41311-82Z00-000
Spring, rear coil
|
41311-82Z00-000 |
— | ||
|
2
|
2
18215-82Z30-000
Nut
|
18215-82Z30-000 |
— | ||
|
3
|
3
45955-82Z00-000
Bolt
|
45955-82Z00-000 |
— | ||
|
4
|
4
41333-82Z00-000
Bush
|
41333-82Z00-000 |
— | ||
|
5
|
5
41465-82Z00-000
Bush
|
41465-82Z00-000 |
— | ||
|
6
|
6
42150-82Z00-000
Seat, spring lower
|
42150-82Z00-000 |
— | ||
|
7
|
7
48528-82Z20-000
Bolt
|
48528-82Z20-000 |
— | ||
|
8
|
8
41313-82Z00-000
Bolt
09 MODEL |
41313-82Z00-000 |
— | ||
|
9
|
9
41460-82Z00-000
Shackle, rear spring
|
41460-82Z00-000 |
— | ||
|
10
|
10
41461-82Z00-000
Plate
|
41461-82Z00-000 |
— | ||
|
11
|
11
42155-82Z00-000
Support, rear spring upper
|
42155-82Z00-000 |
— | ||
|
12
|
12
41811-82Z00-000
Stopper, rear bump
|
41811-82Z00-000 |
— | ||
|
13
|
13
41411-82Z00-000
Clip, rear spring
|
41411-82Z00-000 |
— | ||
|
14
|
14
41317-82Z00-000
Nut
|
41317-82Z00-000 |
— | ||
|
15
|
15
41312-82Z00-000
Damper, rr suspension
09 MODEL |
41312-82Z00-000 |
— | ||
|
16
|
16
46000-82Z00-000
Rr shock absorber kit
|
46000-82Z00-000 |
— | ||
|
17
|
17
4610A-82Z00-000
Nut
|
4610A-82Z00-000 |
— | ||
|
18
|
18
4532A-82Z10-000
Nut
|
4532A-82Z10-000 |
— | ||
|
19
|
19
41711-82Z11-000
Washer
|
41711-82Z11-000 |
— | ||
|
20
|
20
3158A-82Z10-000
Bolt
|
3158A-82Z10-000 |
— | ||
|
21
|
21
1821A-82Z00-000
Nut
|
1821A-82Z00-000 |
— |
