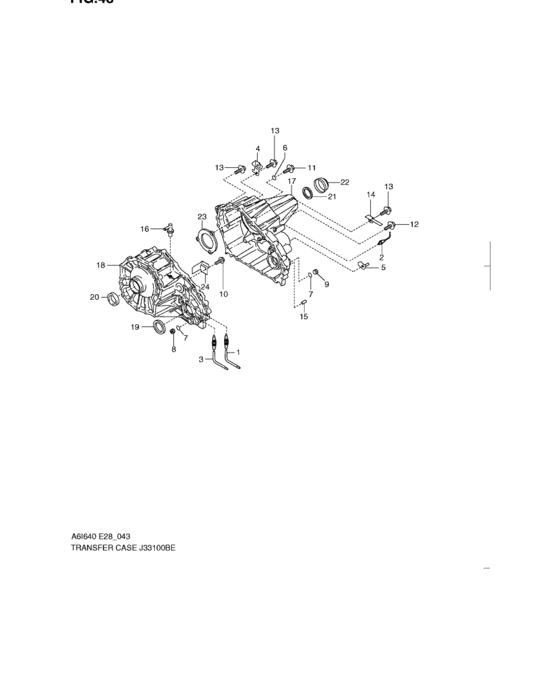

Transfer case (TRANSFER CASE) Diagram Suzuki EQUATOR
- Year
- -
- Sales region
- Canada
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37610-82Z30-000
Switch assy, 4wd
|
37610-82Z30-000 |
— | ||
|
2
|
2
37610-82Z10-000
Switch, neutral t/f
|
37610-82Z10-000 |
— | ||
|
3
|
3
37610-82Z40-000
Switch, neutral t/f
|
37610-82Z40-000 |
— | ||
|
4
|
4
29554-82Z00-000
Bracket, sw connector
|
29554-82Z00-000 |
— | ||
|
5
|
5
29554-82Z10-000
Bracket, sw connector
|
29554-82Z10-000 |
— | ||
|
6
|
6
11517-82Z70-000
Washer
|
11517-82Z70-000 |
— | ||
|
7
|
7
11517-82Z10-000
Washer
|
11517-82Z10-000 |
— | ||
|
8
|
8
24718-82Z50-000
Plug, drain
|
24718-82Z50-000 |
— | ||
|
9
|
9
24718-82Z50-000
Plug, drain
|
24718-82Z50-000 |
— | ||
|
10
|
10
29542-82Z00-000
Bolt
|
29542-82Z00-000 |
— | ||
|
11
|
11
29585-82Z00-000
Bolt
|
29585-82Z00-000 |
— | ||
|
12
|
12
29585-82Z00-000
Bolt
|
29585-82Z00-000 |
— | ||
|
13
|
13
21115-82Z00-000
Bolt
|
21115-82Z00-000 |
— | ||
|
14
|
14
14136-82Z00-000
Clamp
|
14136-82Z00-000 |
— | ||
|
15
|
15
29511-50Z00-000
ピン
|
29511-50Z00-000 |
— | ||
|
16
|
16
29515-82Z20-000
Pipe, breather
09 MODEL |
29515-82Z20-000 |
— | ||
|
16
|
16
29515-82Z60-000
Pipe, breather
09 MODEL,2008-11~,10 MODEL |
29515-82Z60-000 |
— | ||
|
17
|
17
29531-82Z00-000
Case, transfer rear
|
29531-82Z00-000 |
— | ||
|
18
|
18
29511-82Z10-000
Case, transfer front
09 MODEL,->29511-82Z20,USED WITH 29515-82Z50 |
29511-82Z10-000 |
— | ||
|
18
|
18
29511-82Z20-000
Case, transfer front
09 MODEL,2008-11~,10 MODEL |
29511-82Z20-000 |
— | ||
|
19
|
19
27375-82Z00-000
Nut
|
27375-82Z00-000 |
— | ||
|
20
|
20
29541-82Z00-000
Seal, oil
|
29541-82Z00-000 |
— | ||
|
21
|
21
29528-82Z00-000
Seal, oil
|
29528-82Z00-000 |
— | ||
|
22
|
22
29527-82Z00-000
Cover, rear
|
29527-82Z00-000 |
— | ||
|
23
|
23
29515-82Z10-000
Retainer, transfer
|
29515-82Z10-000 |
— | ||
|
24
|
24
29515-82Z00-000
Plate, baffle
09 MODEL |
29515-82Z00-000 |
— | ||
|
24
|
24
29516-82Z00-000
Plate, baffle
09 MODEL,2008-11~,10 MODEL |
29516-82Z00-000 |
— |
