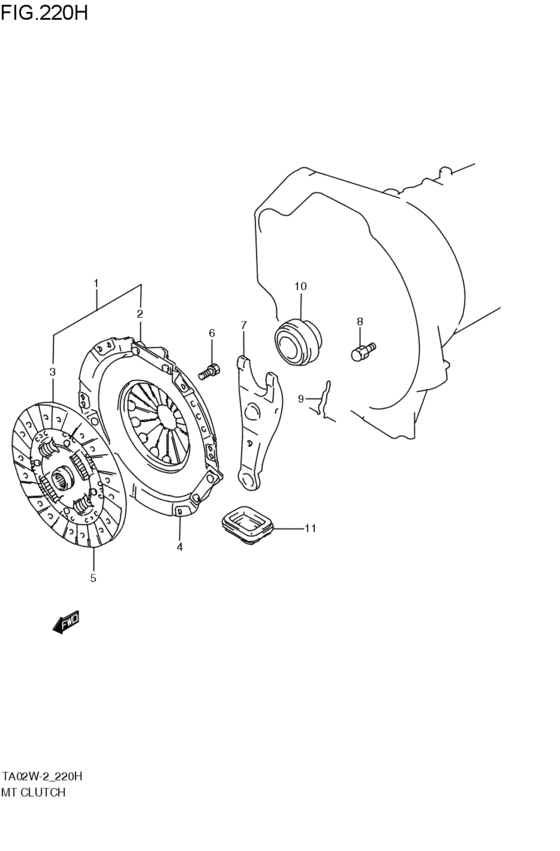

mt - clutch (MT; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- G16A
- drive
- 4WD
- transmission
- MT
- Number of doors
- 3DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22400-57810-000 CLUTCH DISC and COVER SETMT:G16A; 2000-04-01~2002-09-01 |
22400-57810-000 |
from US $219.13 |
||
|
2
|
2
22100-57B10-000
Clutch cover assy
MT:G16A; 2000-04-01~2002-09-01 |
22100-57B10-000 |
— | ||
|
3
|
3
22400-57B10-000
DISC CLUTCH
MT:G16A; 2000-04-01~2002-09-01 |
22400-57B10-000 |
— | ||
| replacement | |||||
|
3
|
3
22400-57810-000 CLUTCH DISC and COVER SETMT:G16A; 2000-04-01~2002-09-01 |
22400-57810-000 |
from US $219.13 |
||
|
6
|
6
09117-08096-000 BOLT(8X16)MT; 2000-04-01~2002-09-01 |
09117-08096-000 |
from US $1.44 |
||
|
7
|
7
23211-66D01-000 FORK,CLUTCH RELEASEMT:G16A; 2000-04-01~2002-09-01 |
23211-66D01-000 |
from US $37.19 |
||
|
8
|
8
23221-78A00-000 SUPPORT,CLUTCH RELEASE FORKMT; 2000-04-01~2002-09-01 |
23221-78A00-000 |
from US $7.63 |
||
|
9
|
9
23241-50F00-000 CLIP,CLUTCH RELEASE FORKMT; 2000-04-01~2002-09-01 |
23241-50F00-000 |
from US $4.68 |
||
|
10
|
10
23265-65D00-000 BEARING,CLUTCH RELEASEMT; 2000-04-01~2002-09-01 |
23265-65D00-000 |
from US $50.67 |
||
|
11
|
11
23268-50F01-000 BOOT,CLUTCH RELEASE FORKMT; 2000-04-01~2002-09-01 |
23268-50F01-000 |
from US $7.34 |
||
