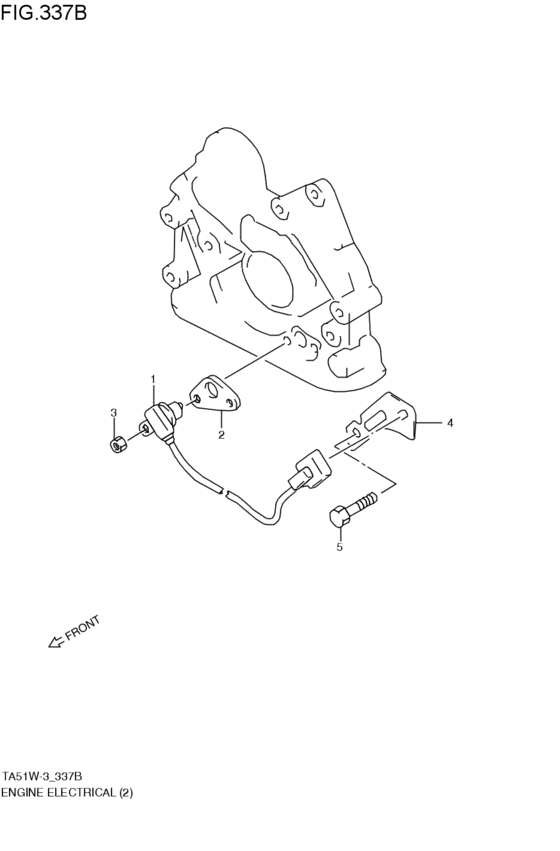

engine electrical (クランク アングル センサ; RF; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33220-78E10-000
SENSOR,CRANK ANGLE
RF; 1996-10-01~ |
33220-78E10-000 |
— | ||
|
2
|
2
33221-78E00-000
PLATE,SENSOR
RF; 1996-10-01~1997-08-01 |
33221-78E00-000 |
— | ||
|
3
|
3
08316-10063-000
Nut
RF; 1996-10-01~1997-08-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1006B-000 NUTRF; 1996-10-01~1997-08-01 |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
33222-78E00-000
BRACKET,COUPLER,KNOCK SENSOR
RF; 1996-10-01~1997-08-01 |
33222-78E00-000 |
— | ||
|
5
|
5
M9103-06200-000
BOLT,6X20
RF; 1996-10-01~1997-08-01 |
M9103-06200-000 |
— | ||
