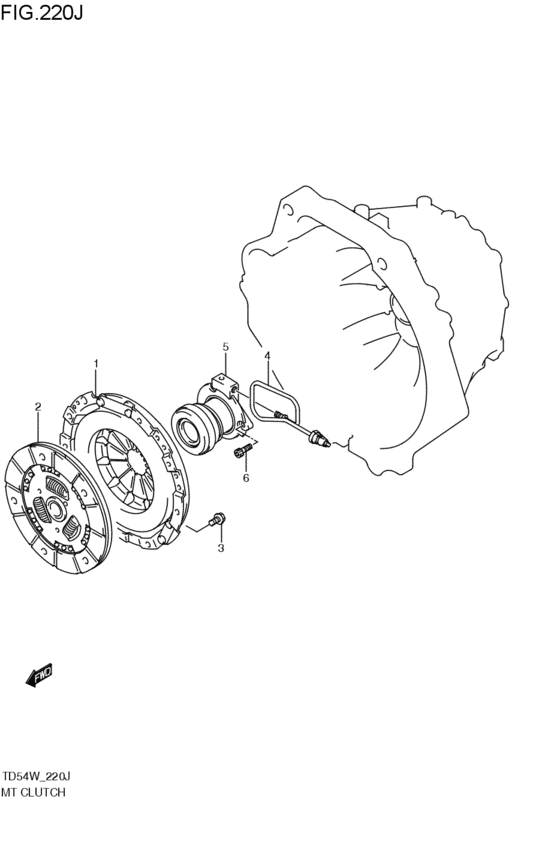

mt - clutch (MT; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-65J00-000 COVER ASSY,CLUTCHMT; 2005-05-01~2006-06-01 |
22100-65J00-000 |
from US $193.12 |
||
|
2
|
2
22400-65J00-000
DISC COMPCLUTCH
MT; 2005-05-01~2006-06-01 |
22400-65J00-000 |
— | ||
| replacement | |||||
|
2
|
2
22400-65J21-000 DISC,CLUTCHMT; 2005-05-01~2006-06-01 |
22400-65J21-000 |
from US $161.30 |
||
|
3
|
3
09117-08096-000 BOLT(8X16)MT; 2005-05-01~2006-06-01 |
09117-08096-000 |
from US $1.44 |
||
|
4
|
4
23830-65J60-000 PIPE,CLUTCH OIL NO.2MT; 2005-05-01~2006-06-01 |
23830-65J60-000 |
from US $26.35 |
||
|
5
|
5
23820-64J00-000 CYLINDER ASSY,CLUTCH OPERATINGMT; 2005-05-01~2006-06-01 |
23820-64J00-000 |
from US $139.12 |
||
|
6
|
6
07130-06203-000
Bolt
MT; 2005-05-01~2006-06-01 |
07130-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0620B-000 BoltBolt, front brg housing MT; 2005-05-01~2006-06-01 |
07130-0620B-000 |
from US $0.91 |
||
