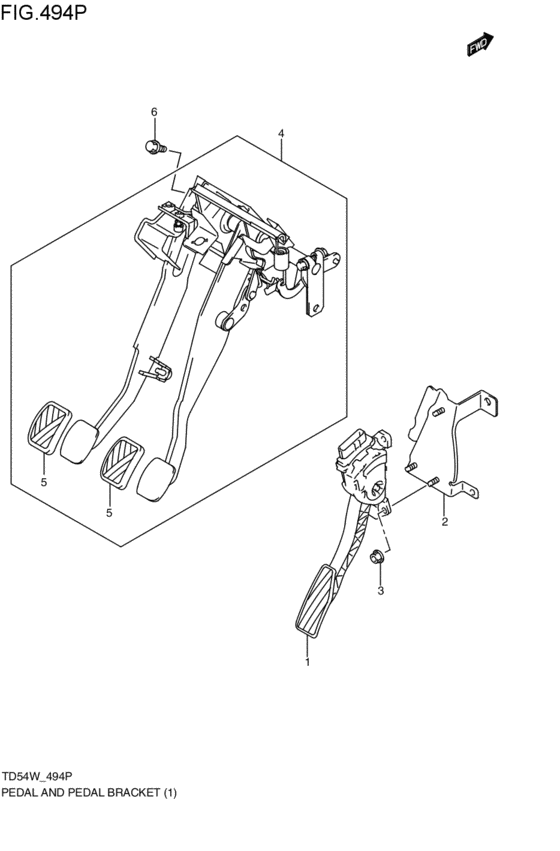

pedal / pedal bracket (MT; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15900-65J01-000
PEDAL ASSYACCELERATOR
MT; 2005-05-01~2006-06-01 |
15900-65J01-000 |
— | ||
| replacement | |||||
|
1
|
1
15900-65J10-000 PEDAL ASSY,ACCELERATORMT; 2005-05-01~2006-06-01 |
15900-65J10-000 |
from US $178.29 |
||
|
2
|
2
49510-65J00-000 BRACKET,ACCELERATOR PEDALMT; 2005-05-01~2006-06-01 |
49510-65J00-000 |
US $21.34 |
||
|
3
|
3
09159-06076-000 NUTMT; 2005-05-01~2006-06-01 |
09159-06076-000 |
from US $0.99 |
||
|
4
|
4
49600-65J00-000
ペダルアッシ,ブレーキ/クラッチ
MT; 2005-05-01~2006-06-01 |
49600-65J00-000 |
— | ||
| replacement | |||||
|
4
|
4
49600-76K00-000 PEDAL ASSY,BRAKE&CLUTCHMT; 2005-05-01~2006-06-01 |
49600-76K00-000 |
US $268.64 |
||
|
5
|
5
49751-58J00-000 PAD,PEDALMT; 2005-05-01~2006-06-01 |
49751-58J00-000 |
from US $2.84 |
||
| replacement | |||||
|
5
|
5
49751-58J20-000 PAD,PEDALMT; 2005-05-01~2006-06-01 |
49751-58J20-000 |
from US $3.35 |
||
|
6
|
6
01550-08163-000
Bolt, holder
MT; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BoltMT; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BoltBolt, rear MT; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
