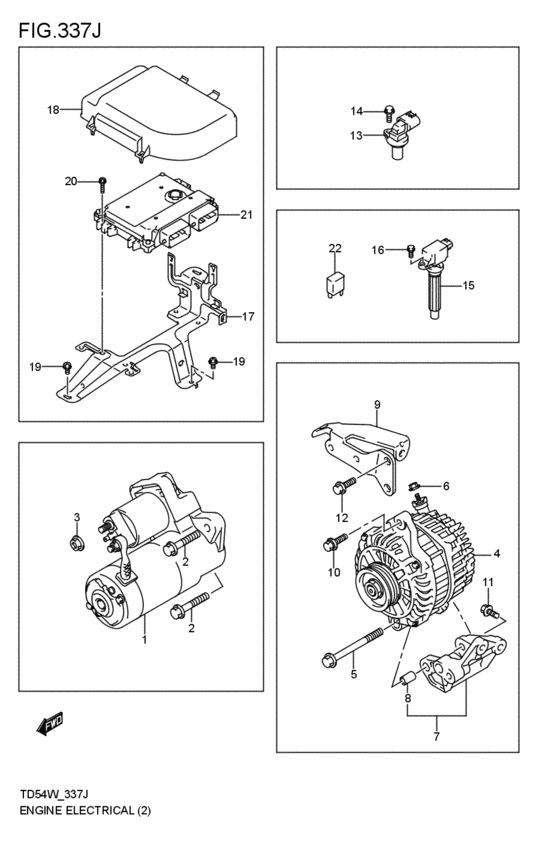

engine electrical (H27A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- H27A
- transmission
- AT
- grade
- XS
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-65J30-000 MOTOR ASSY,STARTINGH27A; 2005-05-01~2006-06-01 |
31100-65J30-000 |
US $675.84 |
||
| replacement | |||||
|
1
|
1
31100-65J30-REM
Motor assy,star
H27A; 2005-05-01~2006-06-01 |
31100-65J30-REM |
— | ||
|
2
|
2
01550-10503-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1050B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
08316-10083-000
Nut
H27A; 2005-05-01~2006-06-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUTH27A; 2005-05-01~2006-06-01 |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
31400-65J20-000
Generator assy
H27A; 2005-05-01~2006-06-01 |
31400-65J20-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-65J21-000 GENERATOR ASSYH27A; 2005-05-01~2006-06-01 |
31400-65J21-000 |
US $2,096 |
||
|
5
|
5
01550-10953-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-10953-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1095A-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-1095A-000 |
US $24.70 |
||
|
6
|
6
08316-10063-000
Nut
H27A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1006B-000 NUTH27A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
7
|
7
11550-66J00-000 BRACKET,GENERATORH27A; 2005-05-01~2006-06-01 |
11550-66J00-000 |
US $110.40 |
||
|
8
|
8
11555-60G01-000 BUSHH27A; 2005-05-01~2006-06-01 |
11555-60G01-000 |
US $3.68 |
||
|
9
|
9
11560-66J00-000
ARM,GENERATOR ADJUST
H27A; 2005-05-01~2006-06-01 |
11560-66J00-000 |
— | ||
|
10
|
10
09118-08164-000 BOLT(8X40)H27A; 2005-05-01~2006-06-01 |
09118-08164-000 |
US $19.10 |
||
|
11
|
11
01550-08253-000
Bolt, rear
H27A; 2005-05-01~2006-06-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0825B-000 |
from US $1.06 |
||
|
11
|
11
01550-0825A-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0825A-000 |
from US $0.47 |
||
|
12
|
12
01550-10203-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1020A-000 BoltBolt, bal sprocket H27A; 2005-05-01~2006-06-01 |
01550-1020A-000 |
from US $0.96 |
||
|
13
|
13
33220-63J00-000
SENSOR ASSY,POSITION
H27A; 2005-05-01~2006-06-01 |
33220-63J00-000 |
— | ||
| replacement | |||||
|
13
|
13
33220-64L20-000 SENSOR ASSY, CRANK POSITIONH27A; 2005-05-01~2006-06-01 |
33220-64L20-000 |
US $81.60 |
||
|
14
|
14
01550-06163-000
Bolt
H27A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BoltH27A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
33400-65J00-000 COIL ASSY,IGNITIONH27A; 2005-05-01~2006-06-01 |
33400-65J00-000 |
US $321.60 |
||
|
16
|
16
09135-05002-000 BOLT(5X23)H27A; 2005-05-01~2006-06-01 |
09135-05002-000 |
US $14.70 |
||
|
17
|
17
33924-65J00-000 BRACKET,EPI CONTH27A; 2005-05-01~2006-06-01 |
33924-65J00-000 |
US $58.40 |
||
|
18
|
18
33925-65J00-000 COVER,EPI CONTH27A; 2005-05-01~2006-06-01 |
33925-65J00-000 |
US $26.40 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
H27A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt H27A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket H27A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
02162-06253-000
Bolt
H27A; 2005-05-01~2006-06-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0625A-000 SCREWH27A; 2005-05-01~2006-06-01 |
02162-0625A-000 |
from US $0.76 |
||
|
21
|
21
33920-66J41-000
コントローラアッシ,インジェクション
H27A; 2005-05-01~2006-06-01 |
33920-66J41-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-66J42-000
CONTROLLER ASSY,EPI
H27A; 2005-05-01~2006-06-01 |
33920-66J42-000 |
— | ||
|
22
|
22
38860-76F01-000 RELAY ASSYRelay, starting motor H27A; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
