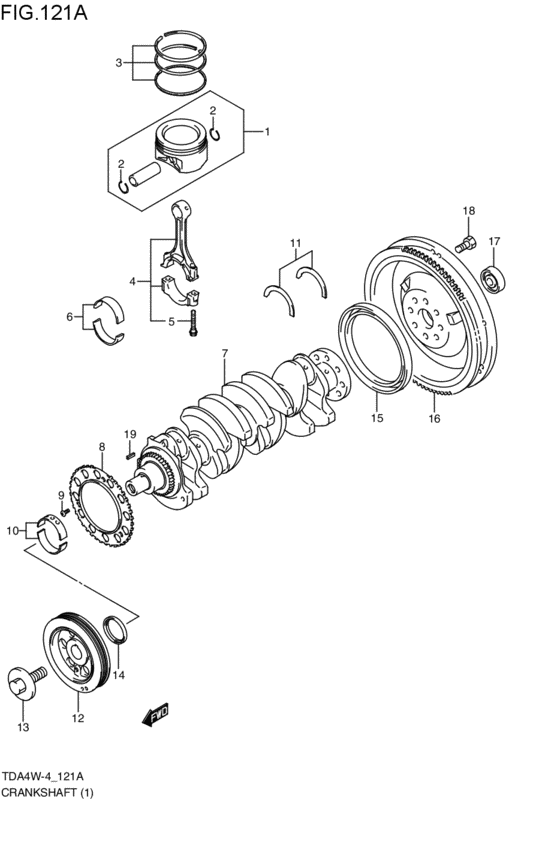

crankshaft (MT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- XG
- esp
- ESP-N
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-78831-0A0 PISTON SET,MARK 1マーク 1; MT; 2010-01-01~ |
12100-78831-0A0 |
from US $116.69 |
||
|
1
|
1
12100-78831-0B0 PISTON SET,MARK 2マーク 2; MT; 2010-01-01~ |
12100-78831-0B0 |
from US $80.59 |
||
|
2
|
2
09381-21002-000 RING,SNAPMT; 2010-01-01~ |
09381-21002-000 |
from US $0.93 |
||
|
3
|
3
12140-78K00-000 RING SET,PISTONMT; 2010-01-01~ |
12140-78K00-000 |
from US $79.34 |
||
|
4
|
4
12160-78K00-000 Connrod assyMT; 2010-01-01~ |
12160-78K00-000 |
US $127.08 |
||
| replacement | |||||
|
4
|
4
12160-78K20-000 CONNROD ASSYMT; 2010-01-01~ |
12160-78K20-000 |
from US $127.08 |
||
|
5
|
5
12163-78K00-000 BOLT,CONNRODMT; 2010-01-01~ |
12163-78K00-000 |
from US $2.13 |
||
|
6
|
6
12100-78840-0A0 BEARING SET,CONNROD GREENカラ-:グリ-ン; MT; 2010-01-01~ |
12100-78840-0A0 |
from US $19.32 |
||
|
6
|
6
12100-78840-0B0 BEARING SET,CONNROD BLACKカラ-:ブラック; MT; 2010-01-01~ |
12100-78840-0B0 |
from US $26.51 |
||
|
6
|
6
12100-78840-0C0 BEARING SET,CONNROD NONカラ-:ナシ; MT; 2010-01-01~ |
12100-78840-0C0 |
from US $10.68 |
||
|
6
|
6
12100-78840-0D0 BEARING SET,CONNROD YELLOWカラ-:イエロ-; MT; 2010-01-01~ |
12100-78840-0D0 |
from US $19.32 |
||
|
6
|
6
12100-78840-0E0 BEARING SET,CONNROD BLUEカラ-:ブル-; MT; 2010-01-01~ |
12100-78840-0E0 |
from US $19.32 |
||
|
6
|
6
12100-78840-025 BEARING SET,CONNROD US:0.25MT; 2010-01-01~ |
12100-78840-025 |
from US $19.32 |
||
|
7
|
7
12220-78K00-000 CRANKSHAFTMT; 2010-01-01~ |
12220-78K00-000 |
from US $1,098.70 |
||
|
8
|
8
12222-78K00-000 PLATE,SENSORMT; 2010-01-01~ |
12222-78K00-000 |
from US $9.05 |
||
|
9
|
9
12223-69G00-000 SCREW,SENSOR PLATE 6X10MT; 2010-01-01~ |
12223-69G00-000 |
from US $0.75 |
||
|
10
|
10
12301-78820-0AA BEARING SET,CRANK RED/GREENカラ-:レツド/グリ-ン; MT; 2010-01-01~ |
12301-78820-0AA |
from US $24.66 |
||
|
10
|
10
12301-78820-0A0 BEARING SET,CRANK GREENカラ-:グリ-ン; MT; 2010-01-01~ |
12301-78820-0A0 |
from US $24.66 |
||
|
10
|
10
12301-78820-0BA BEARING SET,CRANK RED/BLACKカラ-:レツド/ブラツク; MT; 2010-01-01~ |
12301-78820-0BA |
from US $24.66 |
||
|
10
|
10
12301-78820-0B0 BEARING SET,CRANK BLACKカラ-:ブラツク; MT; 2010-01-01~ |
12301-78820-0B0 |
from US $33.44 |
||
|
10
|
10
12301-78820-0CA BEARING SET,CRANK REDカラ-:レツド; MT; 2010-01-01~ |
12301-78820-0CA |
US $24.66 |
||
|
10
|
10
12301-78820-0C0 BEARING SET,CRANK NONカラ-:ナシ; MT; 2010-01-01~ |
12301-78820-0C0 |
from US $37.25 |
||
|
10
|
10
12301-78820-0DA BEARING SET,CRANK RED/YELLOWカラ-:レツド/イエロ-; MT; 2010-01-01~ |
12301-78820-0DA |
from US $24.66 |
||
|
10
|
10
12301-78820-0D0 BEARING SET,CRANK YELLOWカラ-:イエロ-; MT; 2010-01-01~ |
12301-78820-0D0 |
from US $24.66 |
||
|
10
|
10
12301-78820-0EA BEARING SET,CRANK RED/BLUEカラ-:レツド/ブル-; MT; 2010-01-01~ |
12301-78820-0EA |
US $24.66 |
||
|
10
|
10
12301-78820-0E0 BEARING SET,CRANK BLUEカラ-:ブル-; MT; 2010-01-01~ |
12301-78820-0E0 |
US $24.66 |
||
|
11
|
11
12300-78890-000 BEARING SET,CRANK THRUSTMT; 2010-01-01~ |
12300-78890-000 |
from US $14.36 |
||
|
11
|
11
12300-78890-012 BEARING SET,CRANK THRUST USMT; 2010-01-01~ |
12300-78890-012 |
from US $14.09 |
||
|
12
|
12
12610-78K00-000 PULLEY,CRANKSHAFTMT; 2010-01-01~ |
12610-78K00-000 |
from US $113.96 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEYMT; 2010-01-01~ |
12615-85FA0-000 |
from US $13.97 |
||
|
14
|
14
11389-54L00-000 SEAL,CRANKSHAFT PULLEY OILMT; 2010-01-01~ |
11389-54L00-000 |
from US $12.85 |
||
|
15
|
15
09283-98003-000 SEAL,OIL(98X112X7)MT; 2010-01-01~ |
09283-98003-000 |
from US $21.69 |
||
|
16
|
16
12620-78K00-000 FLYWHEELMT; 2010-01-01~ |
12620-78K00-000 |
from US $355.12 |
||
|
17
|
17
12623-71C01-000 BEARING,INPUT SHAFTMT; 2010-01-01~ |
12623-71C01-000 |
from US $15.36 |
||
|
18
|
18
09103-10282-000 BOLT(10X18.5)MT; 2010-01-01~ |
09103-10282-000 |
from US $2.08 |
||
|
19
|
19
09421-05010-000 KEYMT; 2010-01-01~ |
09421-05010-000 |
from US $2.07 |
||
