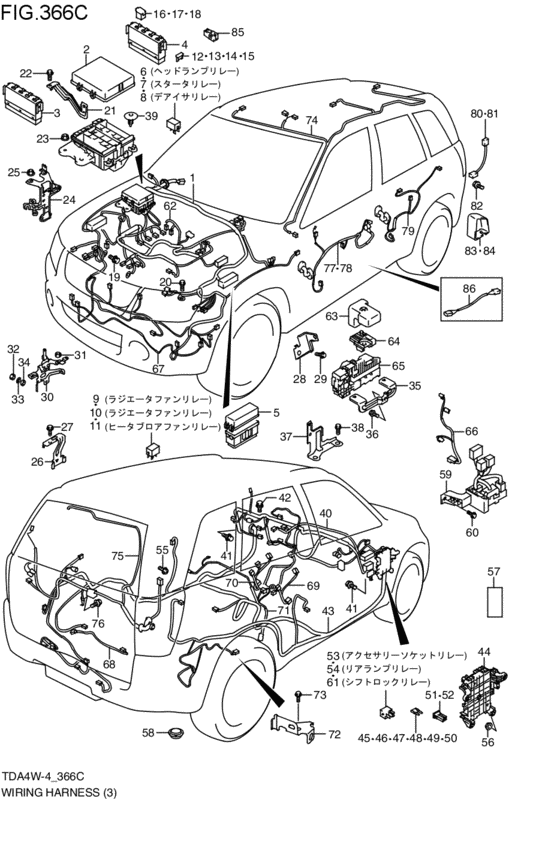

wire ring harness (XGN; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGN
- esp
- ESP-N
- audio
- NAVI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-78KK0-000
ハーネスアッシ,メイン
XGN:AT; 2010-01-01~ |
36610-78KK0-000 |
— | ||
| replacement | |||||
|
1
|
1
36610-78KK1-000
New Genuine Part
XGN:AT; 2010-01-01~ |
36610-78KK1-000 |
— | ||
|
2
|
2
36738-65J02-000
カバー,フューズ/リレーボックス
XGN; 2010-01-01~ |
36738-65J02-000 |
— | ||
|
3
|
3
36742-65J00-000 MODULE,POWER INTEGRATIONMARK:SA; XGN; 2010-01-01~ |
36742-65J00-000 |
from US $49.21 |
||
|
4
|
4
36742-76J00-000 MODULE,POWER INTEGRATIONMARK:SB; XGN; 2010-01-01~ |
36742-76J00-000 |
from US $49.23 |
||
|
5
|
5
36744-65J00-000 COVER,RELAY BOXXGN; 2010-01-01~ |
36744-65J00-000 |
from US $7.16 |
||
|
6
|
6
38860-76F01-000 RELAY ASSYRelay, starting motor ヘツドランプ リレ-; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ リレ-; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
8
|
8
38860-76F01-000 RELAY ASSYRelay, starting motor デアイサ リレ-; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエ-タ フアン リレ-; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
10
|
10
38860-78F00-000 RELAY ASSYラジエ-タ フアン リレ-; XGN; 2010-01-01~ |
38860-78F00-000 |
from US $23.29 |
||
|
11
|
11
74145-65D00-000 RELAY ASSYヒータ ブロア フアン リレ-; XGN; 2010-01-01~ |
74145-65D00-000 |
from US $21.24 |
||
|
12
|
12
09481-10504-000 FUSE(10A)XGN; 2010-01-01~ |
09481-10504-000 |
from US $0.88 |
||
|
13
|
13
09481-15504-000 FUSE(15A)XGN; 2010-01-01~ |
09481-15504-000 |
from US $1.06 |
||
|
14
|
14
09481-20504-000 FUSE(20A)XGN; 2010-01-01~ |
09481-20504-000 |
from US $1.28 |
||
|
15
|
15
09481-25504-000 FUSE(25A)XGN; 2010-01-01~ |
09481-25504-000 |
from US $1.13 |
||
|
16
|
16
09481-30403-000 FUSE(30A)XGN; 2010-01-01~ |
09481-30403-000 |
from US $3.35 |
||
|
17
|
17
09481-40403-000 FUSE(40A)XGN; 2010-01-01~ |
09481-40403-000 |
from US $3.47 |
||
|
18
|
18
09481-50403-000 FUSE(50A)XGN; 2010-01-01~ |
09481-50403-000 |
from US $3.06 |
||
|
19
|
19
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
20
|
20
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
21
|
21
36735-64JA1-000 BRACKET,MAIN FUSE&RLY BOXXGN; 2010-01-01~ |
36735-64JA1-000 |
US $5.67 |
||
|
22
|
22
09122-86002-000 SCREW(6X12)XGN; 2010-01-01~ |
09122-86002-000 |
US $11.80 |
||
|
23
|
23
09159-06076-000 NUTXGN; 2010-01-01~ |
09159-06076-000 |
from US $0.99 |
||
|
24
|
24
36735-64J11-000 BRACKET,STRUT RXGN; 2010-01-01~ |
36735-64J11-000 |
US $13.14 |
||
|
25
|
25
09159-06076-000 NUTXGN; 2010-01-01~ |
09159-06076-000 |
from US $0.99 |
||
|
26
|
26
36735-64J30-000 BRACKET,RDTR RLY BOXXGN; 2010-01-01~ |
36735-64J30-000 |
US $3.64 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
28
|
28
36651-76K00-000 BRACKET,BODY HARNXGN; 2010-01-01~ |
36651-76K00-000 |
US $4.05 |
||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
30
|
30
36735-76K00-000 BRACKET,STRUT LXGN; 2010-01-01~ |
36735-76K00-000 |
US $23.37 |
||
|
31
|
31
09159-06076-000 NUTXGN; 2010-01-01~ |
09159-06076-000 |
from US $0.99 |
||
|
32
|
32
09159-06081-000 NUTXGN; 2010-01-01~ |
09159-06081-000 |
from US $1.31 |
||
|
33
|
33
09180-06347-000 SPACER(6.5X13X7.5)XGN; 2010-01-01~ |
09180-06347-000 |
US $23.60 |
||
|
34
|
34
09320-12036-000 CUSHIONCushion, holder XGN; 2010-01-01~ |
09320-12036-000 |
from US $0.70 |
||
|
35
|
35
36745-64J00-000 BRACKET,FUSE BLOCKXGN; 2010-01-01~ |
36745-64J00-000 |
US $4.38 |
||
|
36
|
36
09122-86002-000 SCREW(6X12)XGN; 2010-01-01~ |
09122-86002-000 |
US $11.80 |
||
|
37
|
37
36745-76K00-000 BRACKET,BTRY HARNXGN; 2010-01-01~ |
36745-76K00-000 |
US $7.54 |
||
|
38
|
38
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
39
|
39
09409-06330-000 CLIPXGN; 2010-01-01~ |
09409-06330-000 |
from US $1.22 |
||
|
40
|
40
36620-76KM0-000
ハーネスアッシ,インストゥルメントパネル
XGN:AT; 2010-01-01~ |
36620-76KM0-000 |
— | ||
| replacement | |||||
|
40
|
40
36620-76KM1-000
New Genuine Part
XGN:AT; 2010-01-01~ |
36620-76KM1-000 |
— | ||
|
41
|
41
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
42
|
42
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
43
|
43
36630-79KC0-000
ハーネスアッシ,フロア
XGN; 2010-01-01~ |
36630-79KC0-000 |
— | ||
|
44
|
44
36710-76K00-000 BOX ASSY,JUNCTIONXGN; 2010-01-01~ |
36710-76K00-000 |
US $124.02 |
||
|
45
|
45
09481-07504-000 FUSE(7.5A)XGN; 2010-01-01~ |
09481-07504-000 |
from US $11.80 |
||
|
46
|
46
09481-10504-000 FUSE(10A)XGN; 2010-01-01~ |
09481-10504-000 |
from US $0.88 |
||
|
47
|
47
09481-15504-000 FUSE(15A)XGN; 2010-01-01~ |
09481-15504-000 |
from US $1.06 |
||
|
48
|
48
09481-20504-000 FUSE(20A)XGN; 2010-01-01~ |
09481-20504-000 |
from US $1.28 |
||
|
49
|
49
09481-25504-000 FUSE(25A)XGN; 2010-01-01~ |
09481-25504-000 |
from US $1.13 |
||
|
50
|
50
09481-30504-000 FUSE(30A)XGN; 2010-01-01~ |
09481-30504-000 |
from US $2.27 |
||
|
51
|
51
09481-20403-000 FUSE(20A)XGN; 2010-01-01~ |
09481-20403-000 |
US $37.90 |
||
|
52
|
52
09481-30403-000 FUSE(30A)XGN; 2010-01-01~ |
09481-30403-000 |
from US $3.35 |
||
|
53
|
53
38860-76F01-000 RELAY ASSYRelay, starting motor アクセサリ ソケツト リレ-; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
54
|
54
38860-76F01-000 RELAY ASSYRelay, starting motor リヤ ランプ リレー; XGN; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
55
|
55
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
56
|
56
08316-1006A-000 NUTXGN; 2010-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
57
|
57
36717-76K00-000 LABEL,FUSE BOXXGN; 2010-01-01~ |
36717-76K00-000 |
US $2.69 |
||
|
58
|
58
72999-67H00-000 CAP,OD:40XGN; 2010-01-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
59
|
59
36655-78K10-000 WIRE,AT&4WD CONTXGN:AT; 2010-01-01~ |
36655-78K10-000 |
US $105.98 |
||
|
60
|
60
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
61
|
61
38860-76F01-000 RELAY ASSYRelay, starting motor シフトロツク リレ-; XGN:AT; 2010-01-01~ |
38860-76F01-000 |
from US $28.80 |
||
|
62
|
62
36650-78K20-000
HARNESS ASSY,ENGINE
XGN:AT; 2010-01-01~ |
36650-78K20-000 |
— | ||
|
63
|
63
36694-64J00-000 COVER,BTRY TERMINALXGN; 2010-01-01~ |
36694-64J00-000 |
from US $9.28 |
||
|
64
|
64
36739-50J00-000 FUSE,BATTERY CABLE 80AXGN; 2010-01-01~ |
36739-50J00-000 |
from US $12.35 |
||
|
65
|
65
36740-64J10-000 BLOCK,FUSEXGN; 2010-01-01~ |
36740-64J10-000 |
from US $76.12 |
||
|
66
|
66
74156-64J00-000 WIRE,A/C PANELXGN; 2010-01-01~ |
74156-64J00-000 |
US $48.58 |
||
|
67
|
67
36658-65J10-000 WIRE,FR DIFF&HEIGHT SENSORXGN; 2010-01-01~ |
36658-65J10-000 |
US $56.67 |
||
|
68
|
68
36658-78K00-000 WIRE,RR HEIGHT SENSORXGN; 2010-01-01~ |
36658-78K00-000 |
US $31.10 |
||
|
69
|
69
36611-65J00-000 WIRE,CONSOLEXGN; 2010-01-01~ |
36611-65J00-000 |
US $29.07 |
||
|
70
|
70
36611-65J70-000 WIRE,CONSOLEXGN:AT; 2010-01-01~ |
36611-65J70-000 |
US $26.86 |
||
|
71
|
71
36840-78K00-000 WIRE,FUELXGN; 2010-01-01~ |
36840-78K00-000 |
from US $53.42 |
||
|
72
|
72
36648-78K00-000 BRACKET,FUEL WIREXGN; 2010-01-01~ |
36648-78K00-000 |
US $3.35 |
||
|
73
|
73
02162-0612A-000 SCREWBolt, bracket XGN; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
74
|
74
36820-78K20-000
ワイヤ,ルーフ
XGN; 2010-01-01~ |
36820-78K20-000 |
— | ||
|
75
|
75
36680-78K10-000 WIRE,BACK DRXGN; 2010-01-01~ |
36680-78K10-000 |
US $141.68 |
||
|
76
|
76
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
77
|
77
36756-79K30-000 WIRE,FR DR DRVRXGN; 2010-01-01~ |
36756-79K30-000 |
US $213.44 |
||
|
78
|
78
36757-79K30-000 WIRE,FR DR PASSXGN; 2010-01-01~ |
36757-79K30-000 |
US $149.78 |
||
|
79
|
79
36751-78K20-000 WIRE,RR DRXGN; 2010-01-01~ |
36751-78K20-000 |
US $81.70 |
||
|
80
|
80
39290-76K00-000
アンプアッシ,アンテナ,ライト
XGN; 2010-01-01~ |
39290-76K00-000 |
— | ||
|
81
|
81
39290-76K10-000
アンプアッシ,アンテナ,レフト
XGN; 2010-01-01~ |
39290-76K10-000 |
— | ||
|
82
|
82
09115-06005-000 BOLT(6X16)XGN; 2010-01-01~ |
09115-06005-000 |
from US $0.86 |
||
|
83
|
83
35819-65J00-000
カバー,アンテナターミナル,ライト
XGN; 2010-01-01~ |
35819-65J00-000 |
— | ||
|
84
|
84
35819-65J10-000
カバー,アンテナターミナル,レフト
XGN; 2010-01-01~ |
35819-65J10-000 |
— | ||
|
85
|
85
36737-64J00-000 PULLER,FUSEオプシヨン; XGN; 2010-01-01~ |
36737-64J00-000 |
US $2.91 |
||
|
86
|
86
36691-65J00-000 WIRE,A/B PASSENGERオプシヨン; XGN; 2010-01-01~ |
36691-65J00-000 |
US $34.96 |
||
