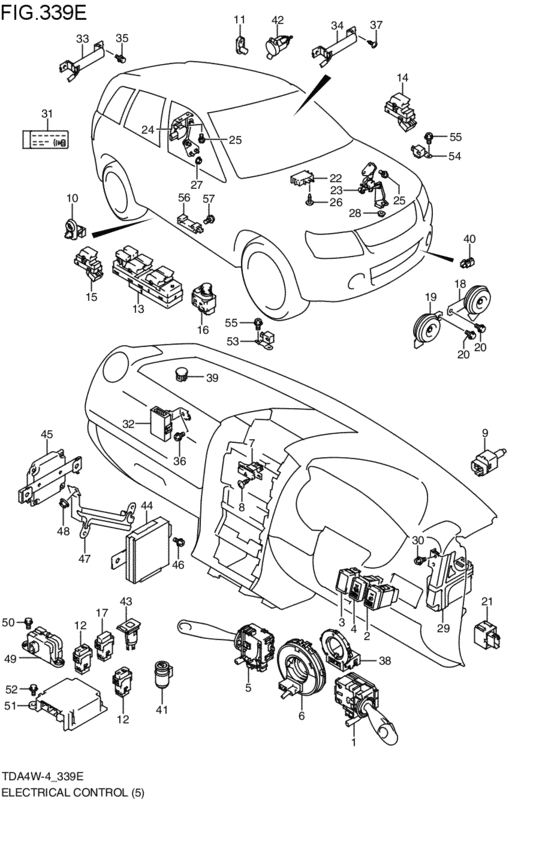

electrical control (XGV:AT; 2010-01-01~) Diagram Suzuki ESCUDO
- Year
- 2010 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- XGV
- esp
- ESP
- audio
- TUNER-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37210-82K00-000
Switch assy,lighting & turn
XGV:AT; 2010-01-01~ |
37210-82K00-000 |
— | ||
| replacement | |||||
|
1
|
1
37210-82K01-000 SWITCH ASSY,LIGHTING&TURNXGV:AT; 2010-01-01~ |
37210-82K01-000 |
US $116.29 |
||
|
2
|
2
37270-62J00-000 SWITCH ASSY,FR FOGXGV:AT; 2010-01-01~ |
37270-62J00-000 |
from US $33.12 |
||
|
3
|
3
37285-62J00-000 CAP,OPTION SW HOLEXGV:AT; 2010-01-01~ |
37285-62J00-000 |
from US $2.56 |
||
|
4
|
4
37810-62J00-000 SWITCH ASSY,DEICERXGV:AT; 2010-01-01~ |
37810-62J00-000 |
US $33.12 |
||
|
5
|
5
37310-62J21-000 SWITCH ASSY,WIPER&WASHERXGV:AT; 2010-01-01~ |
37310-62J21-000 |
US $126.96 |
||
|
6
|
6
37480-64J10-000 CABLE ASSY,CONTACT COILXGV:AT; 2010-01-01~ |
37480-64J10-000 |
from US $173.70 |
||
|
7
|
7
37430-64J00-5PK
Switch assy,hazard(black)
XGV:AT; 2010-01-01~ |
37430-64J00-5PK |
— | ||
| replacement | |||||
|
7
|
7
37430-64J01-5PK SWITCH ASSY,HAZARD WARNINGXGV:AT; 2010-01-01~ |
37430-64J01-5PK |
from US $27.25 |
||
|
8
|
8
03541-0416A-000 SCREWScrew, trunk box lamp XGV:AT; 2010-01-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
9
|
9
37740-75H10-000 SWITCH ASSY,STOP LAMPXGV:AT; 2010-01-01~ |
37740-75H10-000 |
US $16.18 |
||
| replacements | |||||
|
9
|
9
37741-75H10-000 Switch Assy,stop LampXGV:AT; 2010-01-01~ |
37741-75H10-000 |
from US $16.18 |
||
|
9
|
9
37742-75H10-000 Bush,stop Lamp SwXGV:AT; 2010-01-01~ |
37742-75H10-000 |
from US $4.03 |
||
|
10
|
10
37670-57L00-000 SWITCH ASSY,DOORXGV:AT; 2010-01-01~ |
37670-57L00-000 |
from US $12.62 |
||
|
11
|
11
37670-79A20-000 SWITCH ASSY,DOORXGV:AT; 2010-01-01~ |
37670-79A20-000 |
US $13.60 |
||
|
12
|
12
37850-64J00-000
Switch assy,seat heater
XGV:AT; 2010-01-01~ |
37850-64J00-000 |
— | ||
| replacement | |||||
|
12
|
12
37850-64J02-000 SWITCH ASSY,SEAT HEATERXGV:AT; 2010-01-01~ |
37850-64J02-000 |
US $74.40 |
||
|
13
|
13
37990-64J90-000 SWITCH ASSY,P/W MASTERXGV:AT; 2010-01-01~ |
37990-64J90-000 |
from US $196.99 |
||
|
14
|
14
37995-62J00-000 SWITCH ASSY,P/W SUBサブスイツチ; XGV:AT; 2010-01-01~ |
37995-62J00-000 |
from US $20.86 |
||
|
15
|
15
37995-62J00-000 SWITCH ASSY,P/W SUBリヤ スイツチ; XGV:AT; 2010-01-01~ |
37995-62J00-000 |
from US $20.86 |
||
|
16
|
16
37950-62J10-000
SWITCH ASSY,MIRROR
XGV:AT; 2010-01-01~ |
37950-62J10-000 |
— | ||
| replacement | |||||
|
16
|
16
37950-62J11-000 SWITCH ASSY,MIRRORXGV:AT; 2010-01-01~ |
37950-62J11-000 |
from US $32.87 |
||
|
17
|
17
37865-64J01-000
Switch assy,at mode
XGV:AT; 2010-01-01~ |
37865-64J01-000 |
— | ||
| replacement | |||||
|
17
|
17
37865-64J02-000 SWITCH ASSY,AT MODEXGV:AT; 2010-01-01~ |
37865-64J02-000 |
US $35.88 |
||
|
18
|
18
38500-63J00-000
Horn assy
XGV:AT; 2010-01-01~ |
38500-63J00-000 |
— | ||
| replacement | |||||
|
18
|
18
38500-63J01-000 HORN ASSY,LOW PITCHEDXGV:AT; 2010-01-01~ |
38500-63J01-000 |
from US $28.89 |
||
|
19
|
19
38500-65J31-000 HORN ASSYXGV:AT; 2010-01-01~ |
38500-65J31-000 |
from US $45.97 |
||
|
20
|
20
09115-08001-000 BOLT(8X18)XGV:AT; 2010-01-01~ |
09115-08001-000 |
from US $1.01 |
||
|
21
|
21
38610-84F21-000 RELAY,TURN SIGNALXGV:AT; 2010-01-01~ |
38610-84F21-000 |
from US $59.62 |
||
|
22
|
22
38620-65J01-000
Controller assy,auto leveling
XGV:AT; 2010-01-01~ |
38620-65J01-000 |
— | ||
| replacement | |||||
|
22
|
22
38620-65J10-000 CONTROLLER ASSY,AUTO LEVELINGXGV:AT; 2010-01-01~ |
38620-65J10-000 |
US $351.44 |
||
|
23
|
23
38640-65J00-000 SENSOR ASSY,FR HEIGHTXGV:AT; 2010-01-01~ |
38640-65J00-000 |
from US $285.91 |
||
|
24
|
24
38640-78K10-000 SENSOR ASSY,RR HEIGHTXGV:AT; 2010-01-01~ |
38640-78K10-000 |
from US $156.60 |
||
|
25
|
25
02162-0612A-000 SCREWBolt, bracket XGV:AT; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
26
|
26
03541-0512A-000 SCREWXGV:AT; 2010-01-01~ |
03541-0512A-000 |
from US $0.65 |
||
|
27
|
27
08316-1006A-000 NUTXGV:AT; 2010-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
28
|
28
08316-1008A-000 NUTNut, idle gear shaft XGV:AT; 2010-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
29
|
29
36770-76K00-000
コントローラアッシ,ボディエレクトリック
XGV:AT; 2010-01-01~ |
36770-76K00-000 |
— | ||
| replacement | |||||
|
29
|
29
36770-76K02-000
New Genuine Part
XGV:AT; 2010-01-01~ |
36770-76K02-000 |
— | ||
|
30
|
30
02162-0612A-000 SCREWBolt, bracket XGV:AT; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
31
|
31
36771-58J00-000
LABEL,SECURITY ALARM
XGV:AT; 2010-01-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
31
|
31
36771-58J01-000 Label,security AlarmXGV:AT; 2010-01-01~ |
36771-58J01-000 |
US $2.80 |
||
|
32
|
32
37171-64JR0-000
コントローラアッシ,キーレススタート
XGV:AT; 2010-01-01~ |
37171-64JR0-000 |
— | ||
| replacement | |||||
|
32
|
32
37171-64JR1-000 New Genuine PartXGV:AT; 2010-01-01~ |
37171-64JR1-000 |
US $287.04 |
||
|
33
|
33
37175-62J00-000 ANTENNA ASSY,KLS INSIDEXGV:AT; 2010-01-01~ |
37175-62J00-000 |
US $39.01 |
||
|
34
|
34
37175-64J00-000 ANTENNA ASSY,KLS INSIDEXGV:AT; 2010-01-01~ |
37175-64J00-000 |
from US $32.63 |
||
|
35
|
35
01560-0612A-000 BoltXGV:AT; 2010-01-01~ |
01560-0612A-000 |
US $12.50 |
||
|
36
|
36
02162-0616A-000 SCREWXGV:AT; 2010-01-01~ |
02162-0616A-000 |
from US $1.24 |
||
| replacement | |||||
|
36
|
36
02162-0616B-000 SCREWBolt, adjust XGV:AT; 2010-01-01~ |
02162-0616B-000 |
from US $0.96 |
||
|
37
|
37
03141-0512A-000 SCREWScrew, belt cooling duct XGV:AT; 2010-01-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
38
|
38
37440-64J10-000 SENSOR ASSY,ANGLEXGV:AT; 2010-01-01~ |
37440-64J10-000 |
from US $272.45 |
||
|
39
|
39
38680-50J10-000 SENSOR ASSY,AUTO LIGHTXGV:AT; 2010-01-01~ |
38680-50J10-000 |
US $48.94 |
||
|
40
|
40
95643-58J00-000 SENSOR,AIR TEMPXGV:AT; 2010-01-01~ |
95643-58J00-000 |
from US $23 |
||
|
41
|
41
39400-65J01-000 LIGHTER ASSY,CIGARETTEXGV:AT; 2010-01-01~ |
39400-65J01-000 |
from US $28.88 |
||
|
42
|
42
39410-60A01-000 SOCKET ASSYXGV:AT; 2010-01-01~ |
39410-60A01-000 |
from US $23.96 |
||
|
43
|
43
39410-64J10-5PK SOCKET ASSYXGV:AT; 2010-01-01~ |
39410-64J10-5PK |
from US $21.90 |
||
|
44
|
44
38880-78K20-000 CONTROLLER ASSY,ATXGV:AT; 2010-01-01~ |
38880-78K20-000 |
US $792 |
||
|
45
|
45
38885-78K00-000 CONTROLLER ASSY,4WDXGV:AT; 2010-01-01~ |
38885-78K00-000 |
from US $315.79 |
||
|
46
|
46
02162-0612A-000 SCREWBolt, bracket XGV:AT; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
47
|
47
33946-65J10-000 BRACKET,AT&4WD CONTXGV:AT; 2010-01-01~ |
33946-65J10-000 |
US $9.16 |
||
|
48
|
48
08316-1006A-000 NUTXGV:AT; 2010-01-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
49
|
49
33945-79K00-000 SENSOR ASSY,YAWXGV:AT; 2010-01-01~ |
33945-79K00-000 |
from US $516.11 |
||
|
50
|
50
02162-0620C-000 SCREWXGV:AT; 2010-01-01~ |
02162-0620C-000 |
from US $0.83 |
||
|
51
|
51
38910-76K30-000 CONTROLLER ASSY,A/BXGV:AT; 2010-01-01~ |
38910-76K30-000 |
from US $565.18 |
||
|
52
|
52
09115-06003-000 BOLT(6X16)XGV:AT; 2010-01-01~ |
09115-06003-000 |
from US $0.63 |
||
|
53
|
53
38930-65J00-000 SENSOR ASSY,FORWARD,RXGV:AT; 2010-01-01~ |
38930-65J00-000 |
from US $78.80 |
||
|
54
|
54
38930-65J10-000 SENSOR ASSY,FORWARD,LXGV:AT; 2010-01-01~ |
38930-65J10-000 |
from US $79.76 |
||
|
55
|
55
02162-0612A-000 SCREWBolt, bracket XGV:AT; 2010-01-01~ |
02162-0612A-000 |
from US $0.79 |
||
|
56
|
56
38930-65J30-000 SENSOR ASSY,SIDE AIR BAGXGV:AT; 2010-01-01~ |
38930-65J30-000 |
from US $107.82 |
||
|
57
|
57
02162-0635A-000 SCREWXGV:AT; 2010-01-01~ |
02162-0635A-000 |
US $9.60 |
||
