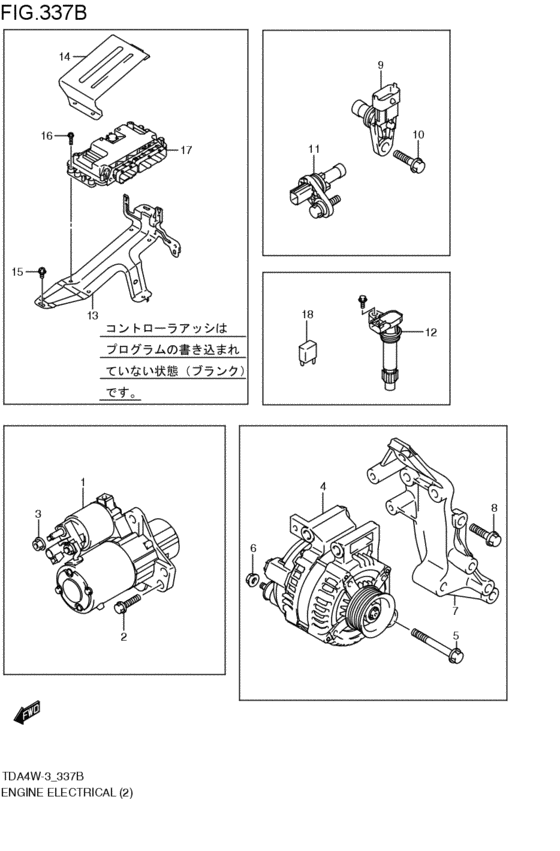

engine electrical (N32A; 2008-04-01~) Diagram Suzuki ESCUDO
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- N32A
- transmission
- AT
- grade
- XS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-79K00-000 MOTOR ASSY,STARTINGN32A; 2008-04-01~ |
31100-79K00-000 |
US $675.84 |
||
|
2
|
2
11617-79K00-000
BOLT,10X35
N32A; 2008-04-01~ |
11617-79K00-000 |
— | ||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft N32A; 2008-04-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
31400-79K00-000
Generator assy
N32A; 2008-04-01~ |
31400-79K00-000 |
— | ||
| replacement | |||||
|
4
|
4
31400-79K01-000 GENERATOR ASSYN32A; 2008-04-01~ |
31400-79K01-000 |
US $918.72 |
||
|
5
|
5
09103-10402-000 BOLT(10X95)N32A; 2008-04-01~ |
09103-10402-000 |
US $27.20 |
||
|
6
|
6
08316-1008A-000 NUTNut, idle gear shaft N32A; 2008-04-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
7
|
7
11551-79K00-000
BRACKET,GENERATOR
N32A; 2008-04-01~ |
11551-79K00-000 |
— | ||
|
8
|
8
11617-79K00-000
BOLT,10X35
N32A; 2008-04-01~ |
11617-79K00-000 |
— | ||
|
9
|
9
33220-78J10-000 SENSOR ASSY,CAM POSITIONN32A; 2008-04-01~ |
33220-78J10-000 |
US $79.12 |
||
|
10
|
10
1151J-78J00-000
BOLT,6X20
N32A; 2008-04-01~ |
1151J-78J00-000 |
— | ||
|
11
|
11
33220-78J01-000 SENSOR ASSY,CRANK POSITIONN32A; 2008-04-01~ |
33220-78J01-000 |
US $79.12 |
||
|
12
|
12
33400-78J02-000
Coil assy,ignition
N32A; 2008-04-01~ |
33400-78J02-000 |
— | ||
| replacement | |||||
|
12
|
12
33400-78J03-000 COIL ASSY,IGNITIONN32A; 2008-04-01~ |
33400-78J03-000 |
from US $134.87 |
||
|
13
|
13
33924-65J12-000 BRACKET,EPI CONTN32A; 2008-04-01~ |
33924-65J12-000 |
US $19.50 |
||
|
14
|
14
33924-65J20-000 BRACKET,EPI CONTN32A; 2008-04-01~ |
33924-65J20-000 |
US $8.72 |
||
|
15
|
15
02162-0612D-000 SCREWN32A; 2008-04-01~ |
02162-0612D-000 |
US $11.80 |
||
|
16
|
16
02162-0625A-000 SCREWN32A; 2008-04-01~ |
02162-0625A-000 |
from US $0.76 |
||
|
17
|
17
33910-79K00-000 CONTROLLER, FUEL INJECTION (BLANK)N32A; 2008-04-01~ |
33910-79K00-000 |
US $2,101.84 |
||
|
18
|
18
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレ-,フユ-エルポンプ リレ-; N32A; 2008-04-01~ |
38860-76F01-000 |
from US $28.80 |
||
