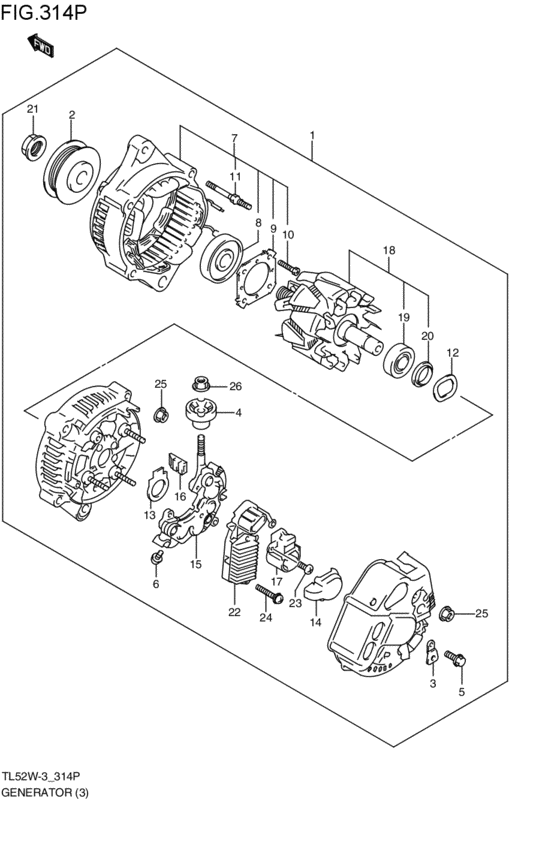

generator (TL52W-206708 カラ; J20A; 2004-08-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-59J00-000
GENERATOR ASSY
J20A; 2004-08-01~2005-02-01 |
31400-59J00-000 |
— | ||
| replacements | |||||
|
1
|
1
31400-59J00-REM
Generator assy
J20A; 2004-08-01~2005-02-01 |
31400-59J00-REM |
— | ||
|
1
|
1
31400-59J01-000 GENERATOR ASSYJ20A; 2004-08-01~2005-02-01 |
31400-59J01-000 |
US $834.24 |
||
|
2
|
2
31171-77E20-000 PULLEYJ20A; 2004-08-01~2005-02-01 |
31171-77E20-000 |
from US $23.94 |
||
|
3
|
3
31512-77E10-000 PLATE,TERMINALJ20A; 2004-08-01~2005-02-01 |
31512-77E10-000 |
from US $1.80 |
||
|
4
|
4
31514-77E11-000 INSULATOR,TERMINALJ20A; 2004-08-01~2005-02-01 |
31514-77E11-000 |
from US $3.51 |
||
|
5
|
5
31515-77E10-000 SCREWJ20A; 2004-08-01~2005-02-01 |
31515-77E10-000 |
from US $0.99 |
||
|
6
|
6
31516-77E10-000 SCREWJ20A; 2004-08-01~2005-02-01 |
31516-77E10-000 |
from US $0.99 |
||
|
7
|
7
31580-59J00-000
Frame assy,drive end
J20A; 2004-08-01~2005-02-01 |
31580-59J00-000 |
— | ||
| replacement | |||||
|
7
|
7
31580-59J01-000 FRAME ASSY,DRIVE ENDJ20A; 2004-08-01~2005-02-01 |
31580-59J01-000 |
US $415.36 |
||
|
8
|
8
31582-60G13-000
Bearing
J20A; 2004-08-01~2005-02-01 |
31582-60G13-000 |
— | ||
| replacement | |||||
|
8
|
8
31582-60G14-000 BEARING,BALLJ20A; 2004-08-01~2005-02-01 |
31582-60G14-000 |
from US $29.05 |
||
|
9
|
9
31585-82111-000 RETAINER,BEARINGJ20A; 2004-08-01~2005-02-01 |
31585-82111-000 |
from US $2.88 |
||
|
10
|
10
02112-04163-000
Screw
J20A; 2004-08-01~2005-02-01 |
02112-04163-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0416A-000 SCREWJ20A; 2004-08-01~2005-02-01 |
02112-0416A-000 |
from US $0.68 |
||
|
11
|
11
31587-82110-000 BoltJ20A; 2004-08-01~2005-02-01 |
31587-82110-000 |
from US $6.95 |
||
|
12
|
12
31615-60G10-000 WASHERJ20A; 2004-08-01~2005-02-01 |
31615-60G10-000 |
from US $3.65 |
||
|
13
|
13
31619-77E10-000 SEAL RINGJ20A; 2004-08-01~2005-02-01 |
31619-77E10-000 |
from US $2.68 |
||
|
14
|
14
31620-77E10-000 SEAL RINGJ20A; 2004-08-01~2005-02-01 |
31620-77E10-000 |
from US $12.47 |
||
|
15
|
15
31621-59J00-000 Rectifier AssyJ20A; 2004-08-01~2005-02-01 |
31621-59J00-000 |
from US $118.49 |
||
|
16
|
16
31622-59J00-000 INSULATORJ20A; 2004-08-01~2005-02-01 |
31622-59J00-000 |
from US $3.53 |
||
|
17
|
17
31656-77E10-000 HOLDER ASSY,BRUSHJ20A; 2004-08-01~2005-02-01 |
31656-77E10-000 |
from US $27.72 |
||
|
18
|
18
31710-59J00-000
Rotor assy
J20A; 2004-08-01~2005-02-01 |
31710-59J00-000 |
— | ||
| replacement | |||||
|
18
|
18
31710-59J01-000 ROTOR ASSYJ20A; 2004-08-01~2005-02-01 |
31710-59J01-000 |
US $397.44 |
||
|
19
|
19
31612-60G13-000
Bearing
J20A; 2004-08-01~2005-02-01 |
31612-60G13-000 |
— | ||
| replacement | |||||
|
19
|
19
31612-60G14-000 BEARINGJ20A; 2004-08-01~2005-02-01 |
31612-60G14-000 |
from US $24.14 |
||
|
20
|
20
31613-82610-000 COVER,BEARINGJ20A; 2004-08-01~2005-02-01 |
31613-82610-000 |
from US $1.91 |
||
|
21
|
21
31775-86510-000 NUTJ20A; 2004-08-01~2005-02-01 |
31775-86510-000 |
from US $1.91 |
||
|
22
|
22
32500-52D00-000 REGULATOR ASSYJ20A; 2004-08-01~2005-02-01 |
32500-52D00-000 |
from US $177.64 |
||
|
23
|
23
02112-04063-000
Screw
J20A; 2004-08-01~2005-02-01 |
02112-04063-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-0406B-000 SCREWJ20A; 2004-08-01~2005-02-01 |
02112-0406B-000 |
from US $0.76 |
||
|
24
|
24
02112-74253-000
SCREW
J20A; 2004-08-01~2005-02-01 |
02112-74253-000 |
— | ||
| replacement | |||||
|
24
|
24
32642-80G10-000 SCREWJ20A; 2004-08-01~2005-02-01 |
32642-80G10-000 |
US $1.69 |
||
|
25
|
25
08316-10053-000
Nut
J20A; 2004-08-01~2005-02-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1005A-000 NUTJ20A; 2004-08-01~2005-02-01 |
08316-1005A-000 |
from US $0.96 |
||
|
26
|
26
08361-15063-000
Nut
J20A; 2004-08-01~2005-02-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
26
|
26
08361-1506A-000 NUTJ20A; 2004-08-01~2005-02-01 |
08361-1506A-000 |
from US $0.80 |
||
