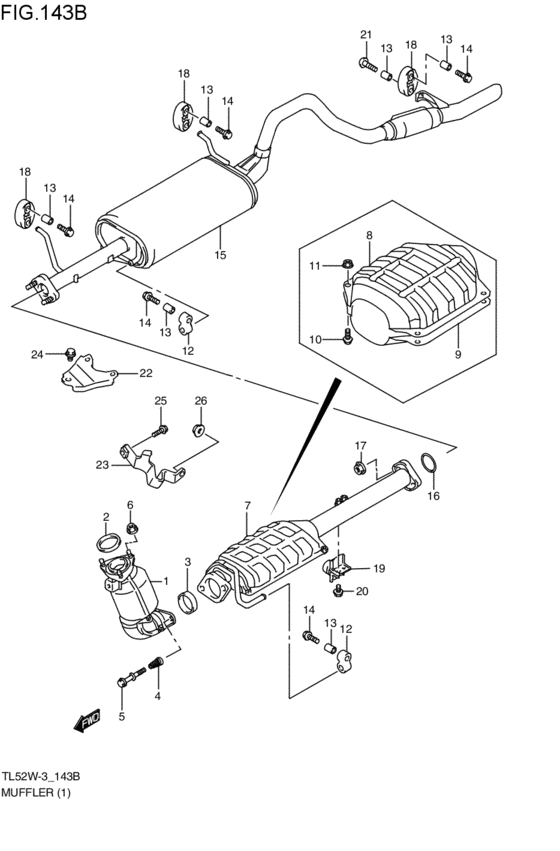

muffler (J20A; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-65DV0-000
パイプ,エキゾースト,NO.1
J20A; 2002-11-01~2005-02-01 |
14190-65DV0-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-65DVV-000 PIPE,EXH NO.1J20A; 2002-11-01~2005-02-01 |
14190-65DVV-000 |
US $1,063.04 |
||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPEJ20A; 2002-11-01~2005-02-01 |
14184-65D00-000 |
from US $10.17 |
||
|
3
|
3
14183-65D00-000 RING,SEAL EXH PIPEJ20A; 2002-11-01~2004-05-01 |
14183-65D00-000 |
from US $15.93 |
||
|
3
|
3
14183-65D10-000 SEAL RING,MUFFLERJ20A; 2004-06-01~2005-02-01 |
14183-65D10-000 |
from US $21.53 |
||
|
4
|
4
14492-67D00-000 SPRING,EXH PIPEJ20A; 2002-11-01~2005-02-01 |
14492-67D00-000 |
from US $6.21 |
||
|
5
|
5
09119-10041-000 BOLT(10X65)J20A; 2002-11-01~2005-02-01 |
09119-10041-000 |
from US $5.67 |
||
|
6
|
6
09159-10098-000 NUTJ20A; 2002-11-01~2005-02-01 |
09159-10098-000 |
from US $1.28 |
||
|
7
|
7
14250-65D90-000 PIPE,EXH NO.2J20A; 2002-11-01~2005-02-01 |
14250-65D90-000 |
from US $604.60 |
||
|
8
|
8
14251-65D00-000
カバー,キャタリストケース,アッパ
J20A; 2002-11-01~2005-02-01 |
14251-65D00-000 |
— | ||
| replacement | |||||
|
8
|
8
14251-65D0V-000 COVER,CATACASE UPPERJ20A; 2002-11-01~2005-02-01 |
14251-65D0V-000 |
US $41.60 |
||
|
9
|
9
14252-65D60-000
カバー,キャタリストケースロア
J20A; 2002-11-01~2005-02-01 |
14252-65D60-000 |
— | ||
| replacement | |||||
|
9
|
9
14252-65D6V-000 COVER,CATACASE LOWER 65D-C02J20A; 2002-11-01~2005-02-01 |
14252-65D6V-000 |
US $20.42 |
||
|
10
|
10
01550-08163-000
Bolt, holder
J20A; 2002-11-01~2005-02-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BoltBolt, rear J20A; 2002-11-01~2005-02-01 |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
08316-10083-000
Nut
J20A; 2002-11-01~2005-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUTJ20A; 2002-11-01~2005-02-01 |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
14281-71C01-000 MOUNTING,MUFJ20A; 2002-11-01~2005-02-01 |
14281-71C01-000 |
from US $9.63 |
||
|
13
|
13
09180-08057-000
Spacer
J20A; 2002-11-01~2005-02-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
13
|
13
09180-08227-000 SPACER(8.2X12.5X23.5)J20A; 2002-11-01~2005-02-01 |
09180-08227-000 |
from US $1.04 |
||
|
14
|
14
01550-08353-000
Bolt, rear
J20A; 2002-11-01~2005-02-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0835B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0835B-000 |
from US $1.28 |
||
|
14
|
14
01550-0835A-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0835A-000 |
from US $1.06 |
||
|
15
|
15
14300-65D01-000 MUFFLER,EXHJ20A; 2002-11-01~2005-02-01 |
14300-65D01-000 |
from US $337.61 |
||
|
16
|
16
14182-58B10-000 GASKET,MUFFLERJ20A; 2002-11-01~2005-02-01 |
14182-58B10-000 |
from US $6.24 |
||
|
17
|
17
09159-10049-000 NutJ20A; 2002-11-01~2005-02-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
17
|
17
09159-10102-000 NUTJ20A; 2002-11-01~2005-02-01 |
09159-10102-000 |
from US $1.28 |
||
|
18
|
18
14281-58B01-000 MOUNTING,MUFJ20A; 2002-11-01~2005-02-01 |
14281-58B01-000 |
from US $16.54 |
||
|
19
|
19
14260-65D01-000 DAMPER,EXH PIPEJ20A; 2002-11-01~2005-02-01 |
14260-65D01-000 |
from US $39.76 |
||
|
20
|
20
01550-08203-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820B-000 BoltJ20A; 2002-11-01~2005-02-01 |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
01550-0820A-000 BoltBolt, funnel bracket J20A; 2002-11-01~2005-02-01 |
01550-0820A-000 |
from US $1.12 |
||
|
21
|
21
09139-08019-000 SCREW(8X35)J20A; 2002-11-01~2005-02-01 |
09139-08019-000 |
from US $1.01 |
||
|
22
|
22
14221-65D10-000
BRACKET,EXH PIPE NO.1
J20A; 2002-11-01~2005-02-01 |
14221-65D10-000 |
— | ||
|
23
|
23
14221-65D21-000 BRACKET,EXH PIPE NO.2J20A; 2002-11-01~2005-02-01 |
14221-65D21-000 |
US $49.60 |
||
|
24
|
24
01550-10203-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1020A-000 BoltBolt, bal sprocket J20A; 2002-11-01~2005-02-01 |
01550-1020A-000 |
from US $0.96 |
||
|
25
|
25
01550-10353-000
Bolt
J20A; 2002-11-01~2005-02-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1035A-000 BoltBolt, fr fork upper J20A; 2002-11-01~2005-02-01 |
01550-1035A-000 |
from US $1.62 |
||
|
26
|
26
08316-10103-000
Nut
J20A; 2002-11-01~2005-02-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1010B-000 NUTJ20A; 2002-11-01~2005-02-01 |
08316-1010B-000 |
from US $0.80 |
||
