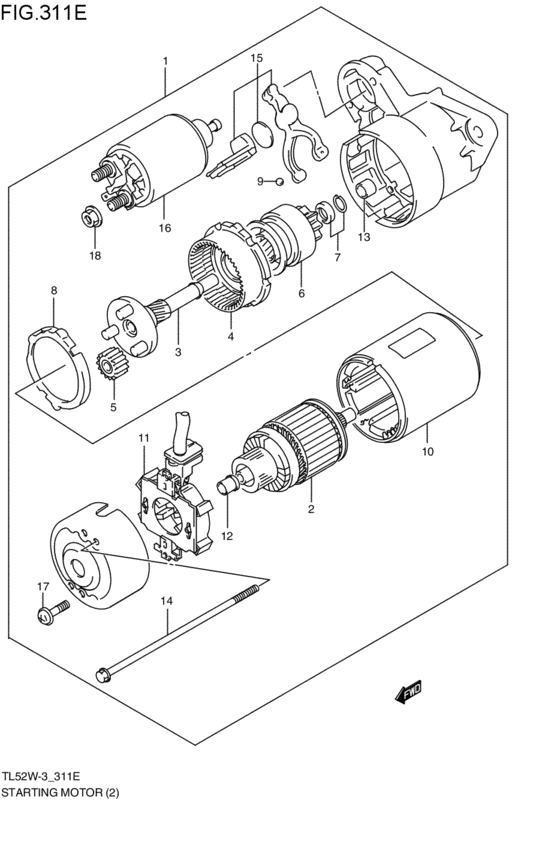

starting motor (J20A:AT; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- J20A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A13-000 MOTOR ASSY STARTERJ20A:AT; 2002-11-01~2005-02-01 |
31100-60A13-000 |
US $519.21 |
||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
J20A:AT; 2002-11-01~2005-02-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGJ20A:AT; 2002-11-01~2005-02-01 |
31100-60A24-000 |
from US $519.21 |
||
|
2
|
2
31311-67D10-000 ARMATUREJ20A:AT; 2002-11-01~2005-02-01 |
31311-67D10-000 |
from US $256.91 |
||
|
3
|
3
31341-67D10-000 SHAFT ASSY,GEARJ20A:AT; 2002-11-01~2005-02-01 |
31341-67D10-000 |
from US $176.13 |
||
|
4
|
4
31343-80G00-000 INTERNAL GEARJ20A:AT; 2002-11-01~2005-02-01 |
31343-80G00-000 |
US $94.40 |
||
|
5
|
5
31344-86030-000 GEAR,PLNTYJ20A:AT; 2002-11-01~2005-02-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGJ20A:AT; 2002-11-01~2005-02-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SETJ20A:AT; 2002-11-01~2005-02-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetJ20A:AT; 2002-11-01~2005-02-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-80G00-000 PACKINGJ20A:AT; 2002-11-01~2005-02-01 |
31345-80G00-000 |
from US $3.38 |
||
|
9
|
9
31193-86030-000 BALLJ20A:AT; 2002-11-01~2005-02-01 |
31193-86030-000 |
from US $0.83 |
||
|
10
|
10
31110-67D10-000 YOKE ASSYJ20A:AT; 2002-11-01~2005-02-01 |
31110-67D10-000 |
from US $213.35 |
||
|
11
|
11
31173-60A22-000 HOLDER ASSY,BRUSHJ20A:AT; 2002-11-01~2005-02-01 |
31173-60A22-000 |
from US $63.84 |
||
|
12
|
12
31172-64B60-000 BEARING,REARJ20A:AT; 2002-11-01~2005-02-01 |
31172-64B60-000 |
from US $8.21 |
||
|
13
|
13
31152-79030-000 BEARING,FRONTJ20A:AT; 2002-11-01~2005-02-01 |
31152-79030-000 |
from US $5.11 |
||
|
14
|
14
31261-67D10-000 BoltJ20A:AT; 2002-11-01~2005-02-01 |
31261-67D10-000 |
from US $4.14 |
||
|
15
|
15
31191-75F10-000 LEVER ASSYJ20A:AT; 2002-11-01~2005-02-01 |
31191-75F10-000 |
from US $8.64 |
||
|
16
|
16
31220-86032-000 SWITCH ASSYJ20A:AT; 2002-11-01~2005-02-01 |
31220-86032-000 |
from US $107.37 |
||
|
17
|
17
31136-79030-000 SCREW ASSYJ20A:AT; 2002-11-01~2005-02-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetJ20A:AT; 2002-11-01~2005-02-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
08316-10083-000
Nut
J20A:AT; 2002-11-01~2005-02-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTJ20A:AT; 2002-11-01~2005-02-01 |
08316-1008B-000 |
from US $0.76 |
||
