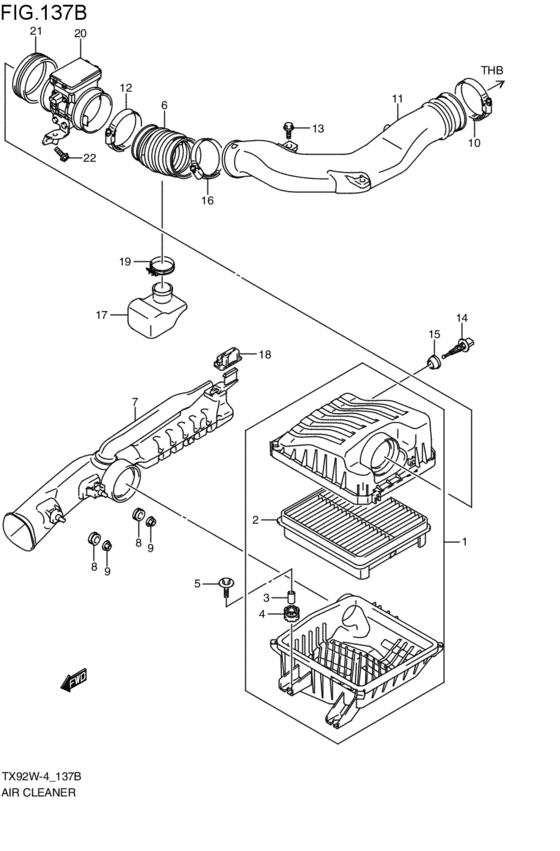

air cleaner (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-52D10-000 CLEANER ASSY,AIR2003-06-01~2005-04-01 |
13700-52D10-000 |
from US $228.56 |
||
|
2
|
2
13780-52D00-000 ELEMENT,AIR CLEANER2003-06-01~2005-04-01 |
13780-52D00-000 |
from US $27.70 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.32003-06-01~2005-04-01 |
13877-65D00-000 |
from US $2.97 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.52003-06-01~2005-04-01 |
13878-65D00-000 |
from US $2.70 |
||
|
5
|
5
09116-06172-000 BOLT(6X30)Bolt (6x30) 2003-06-01~2005-04-01 |
09116-06172-000 |
from US $1.01 |
||
|
6
|
6
13881-52D10-000 HOSE,AIR CLEANER OUTLET2003-06-01~2005-04-01 |
13881-52D10-000 |
from US $37.90 |
||
|
7
|
7
13820-52D00-000 CASE,AIR CLNR SUCTION2003-06-01~2005-04-01 |
13820-52D00-000 |
from US $86.09 |
||
|
8
|
8
13874-51E50-000 CUSHION,RESONATOR NO.22003-06-01~2005-04-01 |
13874-51E50-000 |
from US $2.10 |
||
|
9
|
9
09159-06081-000 NUT2003-06-01~2005-04-01 |
09159-06081-000 |
from US $1.31 |
||
|
10
|
10
09402-82511-000 CLAMP2003-06-01~2005-04-01 |
09402-82511-000 |
from US $5.90 |
||
|
11
|
11
13830-52D10-000 PIPE,AIR INTAKE2003-06-01~2005-04-01 |
13830-52D10-000 |
US $47.36 |
||
|
12
|
12
09402-95502-000 CLAMPClamp, tank 2003-06-01~2005-04-01 |
09402-95502-000 |
from US $22.80 |
||
|
13
|
13
01550-06163-000
Bolt
2003-06-01~2005-04-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0616B-000 Bolt2003-06-01~2005-04-01 |
01550-0616B-000 |
from US $0.76 |
||
|
13
|
13
01550-0616A-000 Bolt2003-06-01~2005-04-01 |
01550-0616A-000 |
from US $0.76 |
||
|
14
|
14
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp 2003-06-01~2005-04-01 |
13650-52G00-000 |
from US $50.92 |
||
|
15
|
15
13655-77E00-000
GROMMET,AIR TEMP SENSOR
2003-06-01~2005-04-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
15
|
15
13655-77E10-000 Grommet,air Temp Sensor2003-06-01~2005-04-01 |
13655-77E10-000 |
from US $2.88 |
||
|
16
|
16
09402-82511-000 CLAMP2003-06-01~2005-04-01 |
09402-82511-000 |
from US $5.90 |
||
|
17
|
17
13761-52D30-000
RESONATOR
2003-06-01~2005-04-01 |
13761-52D30-000 |
— | ||
|
18
|
18
13765-65D00-000 CUSHION,RESONATOR,UPPER2003-06-01~2005-04-01 |
13765-65D00-000 |
from US $4.70 |
||
|
19
|
19
13894-65D00-000 CLAMP,RESONATOR NO.22003-06-01~2005-04-01 |
13894-65D00-000 |
from US $3.40 |
||
|
20
|
20
13800-52D10-000 SENSOR, MAF2003-06-01~2005-04-01 |
13800-52D10-000 |
US $840.15 |
||
|
21
|
21
13824-52D00-000 JOINT,MAF SENSOR2003-06-01~2005-04-01 |
13824-52D00-000 |
from US $7.29 |
||
|
22
|
22
01550-06103-000
Bolt, front
2003-06-01~2005-04-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0610B-000 BoltBolt 2003-06-01~2005-04-01 |
01550-0610B-000 |
from US $0.96 |
||
|
22
|
22
01550-0610A-000 Bolt2003-06-01~2005-04-01 |
01550-0610A-000 |
from US $0.96 |
||
