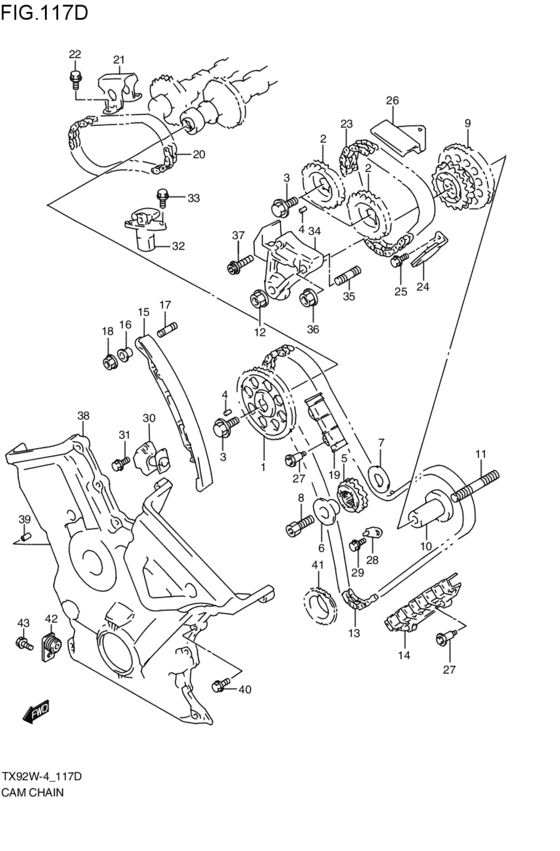

cam chain (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-85FA0-000 SPROCKET,CMSHFT TIMING INTK,R2003-06-01~2005-04-01 |
12741-85FA0-000 |
from US $107.82 |
||
|
2
|
2
12742-85FA0-000 SPROCKET,CAMSHAFT TIMING,LH2003-06-01~2005-04-01 |
12742-85FA0-000 |
from US $181.78 |
||
|
3
|
3
09103-12049-000 BOLT(12X25)Bolt (12x25) 2003-06-01~2005-04-01 |
09103-12049-000 |
from US $2.09 |
||
|
4
|
4
09206-05001-000 PIN(3.4X5X10)2003-06-01~2005-04-01 |
09206-05001-000 |
from US $1.22 |
||
|
5
|
5
12745-85FA0-000 SPROCKET,IDLER NO.12003-06-01~2005-04-01 |
12745-85FA0-000 |
from US $112.03 |
||
|
6
|
6
12747-85FA0-000 SHAFT,SPROCKET IDLER NO.12003-06-01~2005-04-01 |
12747-85FA0-000 |
from US $22.77 |
||
|
7
|
7
12748-85FA0-000 WASHER,SPROCKET IDLER NO.12003-06-01~2005-04-01 |
12748-85FA0-000 |
from US $9.81 |
||
|
8
|
8
07130-10353-000
Bolt
2003-06-01~2005-04-01 |
07130-10353-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-1035B-000 Bolt2003-06-01~2005-04-01 |
07130-1035B-000 |
from US $1.68 |
||
|
9
|
9
12750-85FA0-000
スプロケット,アイドラ,NO.2
2003-06-01~2005-04-01 |
12750-85FA0-000 |
— | ||
| replacement | |||||
|
9
|
9
12750-85FA1-000 SPROCKET,IDLER NO.22003-06-01~2005-04-01 |
12750-85FA1-000 |
from US $171.86 |
||
|
10
|
10
12752-85FA0-000 SHAFT,SPROCKET IDLER NO.22003-06-01~2005-04-01 |
12752-85FA0-000 |
from US $47.16 |
||
|
11
|
11
12753-85FA0-000 STUD BOLT,SPROCKET IDLER NO.22003-06-01~2005-04-01 |
12753-85FA0-000 |
from US $1.31 |
||
|
12
|
12
08316-10103-000
Nut
2003-06-01~2005-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUT2003-06-01~2005-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
12761-85FA0-000 CHAIN,TIMING 1ST2003-06-01~2005-04-01 |
12761-85FA0-000 |
from US $207.47 |
||
|
14
|
14
12771-85FA0-000 GUIDE,TIMING CHAIN,NO.12003-06-01~2005-04-01 |
12771-85FA0-000 |
from US $26.69 |
||
|
15
|
15
12811-85FA0-000 Tensioner, Timing Chain2003-06-01~2005-04-01 |
12811-85FA0-000 |
from US $79.47 |
||
|
16
|
16
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner 2003-06-01~2005-04-01 |
12812-73G10-000 |
from US $4.48 |
||
|
17
|
17
09108-08255-000 BOLT,STUD2003-06-01~2003-08-01 |
09108-08255-000 |
from US $1.52 |
||
|
17
|
17
12816-59J00-000 BOLT,TENSIONER TIMING STUD2003-08-01~2005-04-01 |
12816-59J00-000 |
from US $1.67 |
||
|
18
|
18
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
12772-85FA0-000 GUIDE,TIMING CHAIN,NO.22003-06-01~2005-04-01 |
12772-85FA0-000 |
from US $16.18 |
||
|
20
|
20
12762-85FA0-000 CHAIN,TIMING 2ND,RH2003-06-01~2005-04-01 |
12762-85FA0-000 |
from US $59.51 |
||
|
21
|
21
12773-85FA1-000 GUIDE,TIMING CHAIN N0.32003-06-01~2005-04-01 |
12773-85FA1-000 |
from US $38.77 |
||
|
22
|
22
01550-06123-000
Bolt
2003-06-01~2005-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BoltBolt, clamp 2003-06-01~2005-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 Bolt2003-06-01~2005-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
12763-85FA0-000 CHAIN,TIMING 2ND,LH2003-06-01~2005-04-01 |
12763-85FA0-000 |
from US $98.60 |
||
|
24
|
24
12774-85FA1-000 GUIDE,TIMING CHAIN,NO.42003-06-01~2005-04-01 |
12774-85FA1-000 |
from US $15.35 |
||
|
25
|
25
01550-06163-000
Bolt
2003-06-01~2005-04-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0616B-000 Bolt2003-06-01~2005-04-01 |
01550-0616B-000 |
from US $0.76 |
||
|
25
|
25
01550-0616A-000 Bolt2003-06-01~2005-04-01 |
01550-0616A-000 |
from US $0.76 |
||
|
26
|
26
12775-85FA0-000 GUIDE,TIMING CHAIN,NO.52003-06-01~2005-04-01 |
12775-85FA0-000 |
from US $43.72 |
||
|
27
|
27
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide 2003-06-01~2005-04-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
28
|
28
12780-85FA0-000 JET,TIMING CHAIN2003-06-01~2005-04-01 |
12780-85FA0-000 |
from US $8.53 |
||
|
29
|
29
01550-06123-000
Bolt
2003-06-01~2005-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-0612B-000 BoltBolt, clamp 2003-06-01~2005-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
29
|
29
01550-0612A-000 Bolt2003-06-01~2005-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
30
|
30
12831-85FA7-000 ADJUSTER ASSY,TENSIONER NO.12003-06-01~2005-04-01 |
12831-85FA7-000 |
from US $109.26 |
||
|
31
|
31
01550-06203-000
Bolt
2003-06-01~2005-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
31
|
31
01550-0620B-000 BoltBolt, inspection cap 2003-06-01~2005-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
32
|
32
12832-85FA0-000 ADJUSTER ASSY,TENSIONER NO.22003-06-01~2005-04-01 |
12832-85FA0-000 |
from US $124.65 |
||
|
33
|
33
01550-06203-000
Bolt
2003-06-01~2005-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-0620B-000 BoltBolt, inspection cap 2003-06-01~2005-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
34
|
34
12833-85FA3-000 ADJUSTER ASSY,TENSIONER NO.32003-06-01~2005-04-01 |
12833-85FA3-000 |
from US $110.30 |
||
|
35
|
35
01421-10353-000
Stud 10x1.25x55
2003-06-01~2005-04-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
35
|
35
01421-1035A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-1035A-000 |
from US $4.13 |
||
|
35
|
35
01421-1035B-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-1035B-000 |
US $17.30 |
||
|
36
|
36
08316-10103-000
Nut
2003-06-01~2005-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
36
|
36
08316-1010B-000 NUT2003-06-01~2005-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
37
|
37
07120-06403-000
Bolt
2003-06-01~2005-04-01 |
07120-06403-000 |
— | ||
| replacement | |||||
|
37
|
37
07120-0640B-000 Bolt2003-06-01~2005-04-01 |
07120-0640B-000 |
from US $1.12 |
||
|
38
|
38
11381-67D01-000 COVER,TIMING CHAIN2003-06-01~2005-04-01 |
11381-67D01-000 |
from US $230.54 |
||
|
39
|
39
09206-08001-000 PIN(8X11)2003-06-01~2005-04-01 |
09206-08001-000 |
from US $1.53 |
||
|
40
|
40
01550-06303-000
Bolt (6x30)
2003-06-01~2005-04-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-0630A-000 Bolt2003-06-01~2005-04-01 |
01550-0630A-000 |
from US $1.12 |
||
|
41
|
41
12631-67D00-000 Sprocket, Crankshaft Timing2003-06-01~2005-04-01 |
12631-67D00-000 |
from US $97.63 |
||
|
42
|
42
11215-67D00-000 PLUG,CYLINDER2003-06-01~2005-04-01 |
11215-67D00-000 |
US $9.36 |
||
|
43
|
43
09103-06083-000
Bolt (6x12)
2004-02-01~2005-04-01 |
09103-06083-000 |
— | ||
| replacement | |||||
|
43
|
43
09103-06285-000 BOLT(6X12)Bolt (6x12) 2004-02-01~2005-04-01 |
09103-06285-000 |
from US $0.88 |
||
|
43
|
43
01550-06123-000
Bolt
2003-06-01~2004-01-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0612B-000 BoltBolt, clamp 2003-06-01~2004-01-01 |
01550-0612B-000 |
from US $0.76 |
||
|
43
|
43
01550-0612A-000 Bolt2003-06-01~2004-01-01 |
01550-0612A-000 |
from US $0.76 |
||
