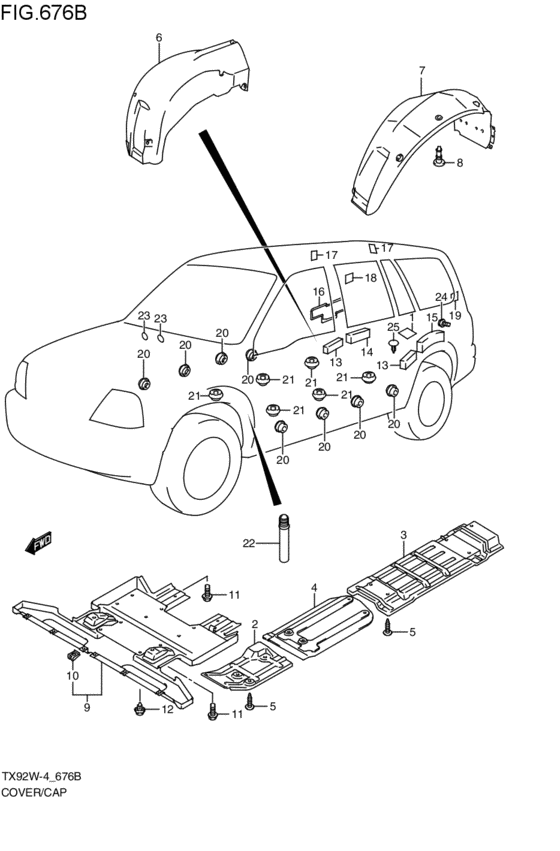

cover / cap (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 2003-06-01~2005-04-01 |
84761-50X50-000 |
from US $6.72 |
||
|
2
|
2
75511-65D20-000 PANEL,HEAT PROTECTOR FRONT2003-06-01~2005-04-01 |
75511-65D20-000 |
from US $9.07 |
||
|
3
|
3
75512-52D10-000
PANEL,HEAT PROTECTOR REAR
2003-06-01~2005-04-01 |
75512-52D10-000 |
— | ||
|
4
|
4
75513-52D10-000
Panel,heat protector center
2003-06-01~2005-04-01 |
75513-52D10-000 |
— | ||
|
5
|
5
03141-06123-000
Screw 6x12
2003-06-01~2005-04-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0612A-000 SCREW2003-06-01~2005-04-01 |
03141-0612A-000 |
US $0.76 |
||
|
6
|
6
75521-65D10-000 LINING,RR WHEEL HSG,R2003-06-01~2005-04-01 |
75521-65D10-000 |
from US $54.02 |
||
|
7
|
7
75531-65D00-000 LINING,RR WHEEL HSG,L2003-06-01~2005-04-01 |
75531-65D00-000 |
from US $46.13 |
||
|
8
|
8
09409-07332-000 CLIP2003-06-01~2005-04-01 |
09409-07332-000 |
from US $1.44 |
||
|
9
|
9
71430-52D00-000 COVER,FR UNDER2003-06-01~2005-04-01 |
71430-52D00-000 |
from US $122.29 |
||
|
10
|
10
09148-05038-000 NUTNut, inner 2003-06-01~2005-04-01 |
09148-05038-000 |
from US $0.91 |
||
|
11
|
11
09111-08087-000 BOLT(8X16.5)2003-06-01~2005-04-01 |
09111-08087-000 |
from US $0.84 |
||
|
12
|
12
09409-07332-000 CLIP2003-06-01~2005-04-01 |
09409-07332-000 |
from US $1.44 |
||
|
13
|
13
76551-52D00-000 PAD2003-06-01~2005-04-01 |
76551-52D00-000 |
US $6.73 |
||
|
14
|
14
76552-52D00-000
PAD,RR WHEEL HSG OTR RR,R
2003-06-01~2005-04-01 |
76552-52D00-000 |
— | ||
|
15
|
15
76553-52D00-000
PAD,RR WHEEL HSG OTR RR,L
2003-06-01~2005-04-01 |
76553-52D00-000 |
— | ||
|
16
|
16
76351-52D00-000
COVER,RR QUARTER INNER,R
2003-06-01~2005-04-01 |
76351-52D00-000 |
— | ||
|
17
|
17
76353-52D00-000 SEAL,RR QUARTER INNER NO.290X90>45X60; 2003-06-01~2005-04-01 |
76353-52D00-000 |
US $5.96 |
||
|
18
|
18
76353-52D00-000 SEAL,RR QUARTER INNER NO.22003-06-01~2005-04-01 |
76353-52D00-000 |
US $5.96 |
||
|
19
|
19
76353-52D00-000 SEAL,RR QUARTER INNER NO.2L:90>60; 2003-06-01~2005-04-01 |
76353-52D00-000 |
US $5.96 |
||
|
20
|
20
09250-25007-000 CAP(OD:25.0)2003-06-01~2005-04-01 |
09250-25007-000 |
from US $1.31 |
||
|
21
|
21
72999-67H00-000 CAP,OD:402003-06-01~2005-04-01 |
72999-67H00-000 |
from US $4.32 |
||
|
22
|
22
76470-50F00-000
シグナルアッシ,フレア
2003-06-01~2005-04-01 |
76470-50F00-000 |
— | ||
| replacement | |||||
|
22
|
22
76470-64P00-000
New Genuine Part
2003-06-01~2005-04-01 |
76470-64P00-000 |
— | ||
|
23
|
23
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 2003-06-01~2005-04-01 |
84761-50X50-000 |
from US $6.72 |
||
|
24
|
24
01550-06123-000
Bolt
2003-06-01~2005-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BoltBolt, clamp 2003-06-01~2005-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 Bolt2003-06-01~2005-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
09409-09305-000 CLIP2003-06-01~2005-04-01 |
09409-09305-000 |
US $18.40 |
||
