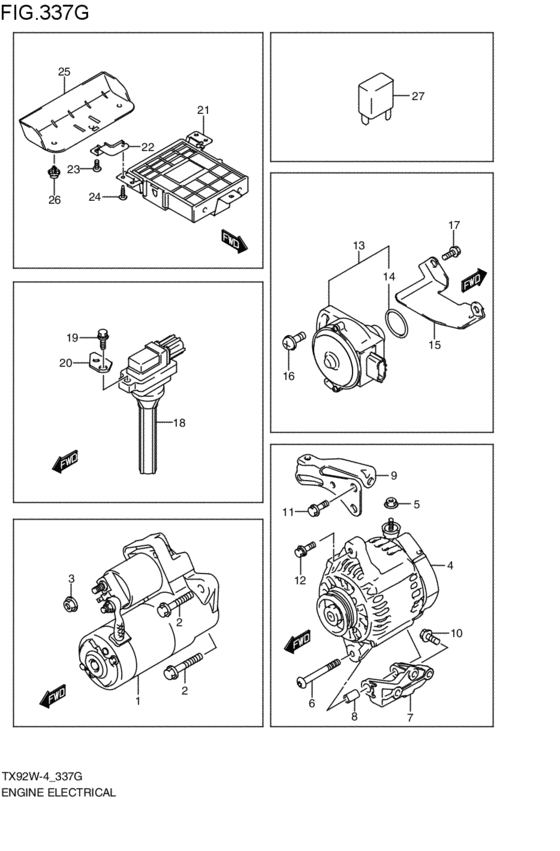

engine electrical (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-67D20-000 MOTOR ASSY,STARTING2003-06-01~2005-04-01 |
31100-67D20-000 |
US $675.84 |
||
| replacement | |||||
|
1
|
1
31100-67D20-REM
Starting motor
2003-06-01~2005-04-01 |
31100-67D20-REM |
— | ||
|
2
|
2
01550-10503-000
Bolt
2003-06-01~2005-04-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1050B-000 Bolt2003-06-01~2005-04-01 |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
31400-52D10-000
Generator assy
2003-06-01~2005-04-01 |
31400-52D10-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-52D10-REM
Generator assy
2003-06-01~2005-04-01 |
31400-52D10-REM |
— | ||
|
4
|
4
31400-52D11-000 GENERATOR ASSY2003-06-01~2005-04-01 |
31400-52D11-000 |
US $2,448 |
||
|
5
|
5
08316-10063-000
Nut
2003-06-01~2005-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT2003-06-01~2005-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
09139-10002-000 SCREW(10X85)2003-06-01~2005-04-01 |
09139-10002-000 |
US $3.04 |
||
|
7
|
7
11551-77E00-000 BRACKET,GENERATOR2003-06-01~2005-04-01 |
11551-77E00-000 |
US $92.80 |
||
|
8
|
8
11555-60G00-000
Bush, generator
2003-06-01~2005-04-01 |
11555-60G00-000 |
— | ||
| replacement | |||||
|
8
|
8
11555-60G01-000 BUSH2003-06-01~2005-04-01 |
11555-60G01-000 |
US $3.68 |
||
|
9
|
9
11560-52D00-000 ARM,GENERATOR ADJUST2003-06-01~2005-04-01 |
11560-52D00-000 |
US $25.09 |
||
|
10
|
10
01550-08253-000
Bolt, rear
2003-06-01~2005-04-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0825B-000 Bolt2003-06-01~2005-04-01 |
01550-0825B-000 |
from US $1.06 |
||
|
10
|
10
01550-0825A-000 Bolt2003-06-01~2005-04-01 |
01550-0825A-000 |
from US $0.47 |
||
|
11
|
11
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
09118-08107-000 BOLT(8X25)2003-06-01~2005-04-01 |
09118-08107-000 |
US $1.12 |
||
|
13
|
13
33100-52D00-000 SENSOR ASSY, CAM POSITION2003-06-01~2005-04-01 |
33100-52D00-000 |
US $707.52 |
||
|
14
|
14
33278-77E10-000 O-RING2003-06-01~2005-04-01 |
33278-77E10-000 |
US $3.04 |
||
|
15
|
15
33328-77E00-000
カバー,クランクアングルセンサ
2003-06-01~2005-04-01 |
33328-77E00-000 |
— | ||
| replacement | |||||
|
15
|
15
33328-77E01-000 COVER,CA SENSOR2003-06-01~2005-04-01 |
33328-77E01-000 |
US $5.74 |
||
|
16
|
16
09138-08003-000 SCREW(8X30)2003-06-01~2005-04-01 |
09138-08003-000 |
from US $1.49 |
||
|
17
|
17
01550-06123-000
Bolt
2003-06-01~2005-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BoltBolt, clamp 2003-06-01~2005-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 Bolt2003-06-01~2005-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
33410-77E22-000 COIL ASSY,IGNITION2003-06-01~2005-04-01 |
33410-77E22-000 |
US $348.80 |
||
|
19
|
19
01580-05203-000
ボルト
2003-06-01~2005-04-01 |
01580-05203-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0520B-000 Bolt2003-06-01~2005-04-01 |
01580-0520B-000 |
from US $1.19 |
||
|
20
|
20
36995-77E90-000 BRACKET,ENG HARN2003-06-01~2005-04-01 |
36995-77E90-000 |
US $2.83 |
||
|
21
|
21
33920-54JG1-000
コントローラアッシ,インジェクション
2003-06-01~2005-04-01 |
33920-54JG1-000 |
— | ||
|
22
|
22
33924-50J20-000
BRACKET,EPI CONT
2003-06-01~2005-04-01 |
33924-50J20-000 |
— | ||
|
23
|
23
02142-05103-000
Screw 5x10
2003-06-01~2005-04-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
23
|
23
02142-0510B-000 SCREWBolt 2003-06-01~2005-04-01 |
02142-0510B-000 |
from US $0.76 |
||
|
24
|
24
03541-05123-000
Screw
2003-06-01~2005-04-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0512B-000 SCREW2003-06-01~2005-04-01 |
03541-0512B-000 |
from US $0.76 |
||
|
25
|
25
33925-50J10-000
COVER,EPI CONT
2003-06-01~2005-04-01 |
33925-50J10-000 |
— | ||
|
26
|
26
09409-07332-000 CLIP2003-06-01~2005-04-01 |
09409-07332-000 |
from US $1.44 |
||
|
27
|
27
38860-76F01-000 RELAY ASSYRelay, starting motor 2003-06-01~2005-04-01 |
38860-76F01-000 |
from US $28.80 |
||
