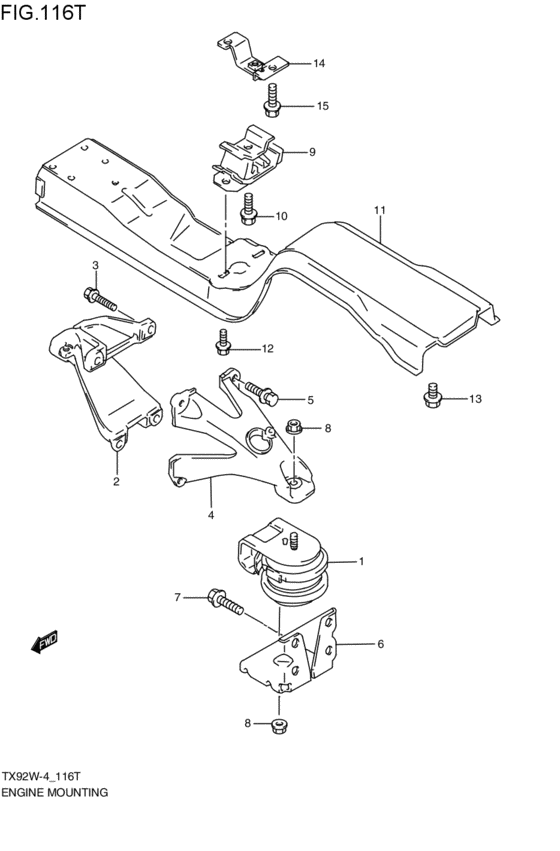

engine mounting (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-67D00-000 MOUNTING,ENG FR2003-06-01~2005-04-01 |
11610-67D00-000 |
US $243.20 |
||
|
2
|
2
11641-52D00-000 BRACKET,ENG FR MTG,R2003-06-01~2005-04-01 |
11641-52D00-000 |
US $145.60 |
||
|
3
|
3
09116-10140-000 BOLT(10X33)2003-11-01~2005-04-01 |
09116-10140-000 |
US $21.30 |
||
|
3
|
3
01560-10303-000
ボルト
2003-06-01~2005-04-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 Bolt2003-06-01~2005-04-01 |
01560-1030A-000 |
US $1.12 |
||
|
4
|
4
11651-52D00-000 BRACKET,ENG FR MTG,L2003-06-01~2005-04-01 |
11651-52D00-000 |
US $132 |
||
|
5
|
5
09116-10140-000 BOLT(10X33)2003-11-01~2005-04-01 |
09116-10140-000 |
US $21.30 |
||
|
5
|
5
01560-10303-000
ボルト
2003-06-01~2003-10-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01560-1030A-000 Bolt2003-06-01~2003-10-01 |
01560-1030A-000 |
US $1.12 |
||
|
6
|
6
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDE2003-06-01~2005-04-01 |
11661-65D00-000 |
US $67.20 |
||
|
7
|
7
09112-12001-000 BOLT(12X35)2003-06-01~2005-04-01 |
09112-12001-000 |
US $22.40 |
||
|
8
|
8
08316-10103-000
Nut
2003-06-01~2005-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUT2003-06-01~2005-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-65D03-000 MOUNTING,ENG RR2003-06-01~2005-04-01 |
11710-65D03-000 |
US $238.40 |
||
|
10
|
10
01560-10253-000
ボルト
2003-06-01~2005-04-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1025A-000 Bolt2003-06-01~2005-04-01 |
01560-1025A-000 |
US $1.07 |
||
|
11
|
11
11730-52D01-000 MEMBER,ENG RR MTG2003-06-01~2005-04-01 |
11730-52D01-000 |
US $215.28 |
||
|
12
|
12
01560-10163-000
ボルト
2003-06-01~2005-04-01 |
01560-10163-000 |
— | ||
| replacement | |||||
|
12
|
12
01560-1016A-000 Bolt2003-06-01~2005-04-01 |
01560-1016A-000 |
US $0.96 |
||
|
13
|
13
09112-10006-000 BOLT(10X25)2003-06-01~2005-04-01 |
09112-10006-000 |
US $1.38 |
||
|
14
|
14
11741-78E10-000 BRACKET,ENG RR MTG2003-06-01~2005-04-01 |
11741-78E10-000 |
US $15.57 |
||
|
15
|
15
01560-10253-000
ボルト
2003-06-01~2005-04-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01560-1025A-000 Bolt2003-06-01~2005-04-01 |
01560-1025A-000 |
US $1.07 |
||
