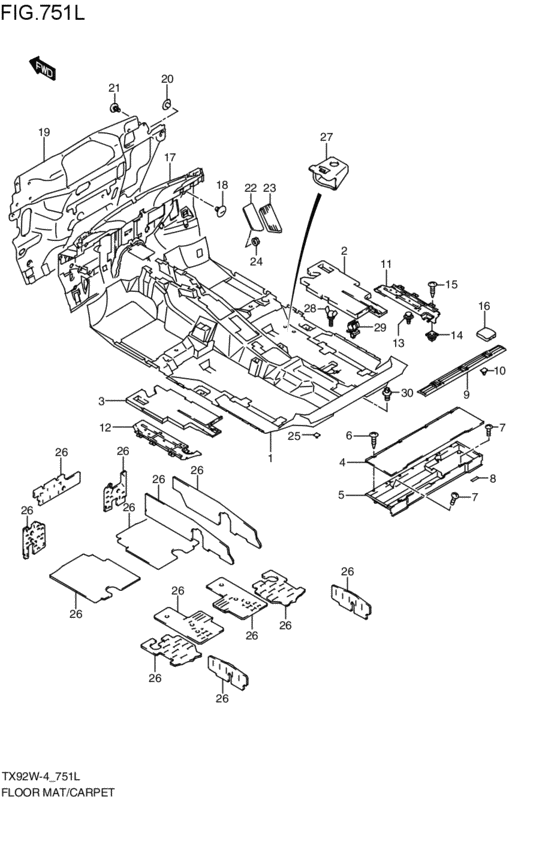

floor mat / carpet (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-52DB0-R9T
CARPET,FR FL
グレ-; 2003-06-01~2005-04-01 |
75160-52DB0-R9T |
— | ||
|
1
|
1
75160-52DB0-R9U
カーペット,フロントフロア(ベージュ)
ベ-ジユ; 2003-06-01~2005-04-01 |
75160-52DB0-R9U |
— | ||
|
2
|
2
75172-52D10-000
PAD,FRONT FLOOR,R
2003-06-01~2005-04-01 |
75172-52D10-000 |
— | ||
|
3
|
3
75173-52D10-000
PAD,FRONT FLOOR,L
2003-06-01~2005-04-01 |
75173-52D10-000 |
— | ||
|
4
|
4
75540-52D01-R9T
LID,RR LUGGAGE BOX
グレ-; 2003-06-01~2005-04-01 |
75540-52D01-R9T |
— | ||
|
4
|
4
75540-52D01-R9U
LID,RR LUGGAGE BOX
ベ-ジユ; 2003-06-01~2005-04-01 |
75540-52D01-R9U |
— | ||
|
5
|
5
75550-52D01-R8H
Box comp,rear luggage
ベ-ジユ; 2003-06-01~2005-04-01 |
75550-52D01-R8H |
— | ||
|
5
|
5
75550-52D01-R8J
BOX,RR LUGGAGE
グレ-; 2003-06-01~2005-04-01 |
75550-52D01-R8J |
— | ||
|
6
|
6
03541-05163-000
Screw
2003-06-01~2005-04-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW2003-06-01~2005-04-01 |
03541-0516A-000 |
from US $0.76 |
||
|
7
|
7
02142-06123-000
Screw
2003-06-01~2005-04-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0612B-000 SCREW2003-06-01~2005-04-01 |
02142-0612B-000 |
from US $0.76 |
||
|
7
|
7
02142-0612A-000 SCREW2003-06-01~2005-04-01 |
02142-0612A-000 |
from US $0.80 |
||
|
8
|
8
75181-52D00-000
SEAL,RR FLOOR RR
2003-06-01~2005-04-01 |
75181-52D00-000 |
— | ||
|
9
|
9
75191-65D10-R8H GARNISH,LUGGAGE MAT ENDベ-ジユ; 2003-06-01~2005-04-01 |
75191-65D10-R8H |
US $32.02 |
||
|
9
|
9
75191-65D10-R8J GARNISH,LUGGAGE MAT ENDグレ-; 2003-06-01~2005-04-01 |
75191-65D10-R8J |
from US $26.93 |
||
|
10
|
10
77259-71B00-000 CLIP2003-06-01~2005-04-01 |
77259-71B00-000 |
from US $2.08 |
||
|
11
|
11
75560-52D11-000 PLATE,FLOOR STEP,R2003-06-01~2005-04-01 |
75560-52D11-000 |
US $58.51 |
||
|
12
|
12
75570-52D00-000
プレート,フロアステップ,レフト
2003-06-01~2004-07-01 |
75570-52D00-000 |
— | ||
| replacement | |||||
|
12
|
12
75570-52D01-000
PLATE,FLOOR STEP,L
2003-06-01~2004-07-01 |
75570-52D01-000 |
— | ||
|
12
|
12
75570-52D01-000
PLATE,FLOOR STEP,L
2004-07-01~2005-04-01 |
75570-52D01-000 |
— | ||
|
13
|
13
09409-08334-000 CLIP2003-06-01~2005-04-01 |
09409-08334-000 |
from US $1.10 |
||
|
14
|
14
09148-05018-000 NUT2003-06-01~2004-07-01 |
09148-05018-000 |
from US $0.68 |
||
|
15
|
15
03541-05123-000
Screw
2003-06-01~2004-07-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0512B-000 SCREW2003-06-01~2004-07-01 |
03541-0512B-000 |
from US $0.76 |
||
|
16
|
16
75192-65D20-R8H
CAP,MAT END GARNISH
ベ-ジユ; 2003-06-01~2005-04-01 |
75192-65D20-R8H |
— | ||
|
16
|
16
75192-65D20-R8J CAP,MAT END GARNISHグレ-; 2003-06-01~2005-04-01 |
75192-65D20-R8J |
US $4.97 |
||
|
17
|
17
75210-65D31-000
SILENCER,DASH PANEL
2003-06-01~2005-04-01 |
75210-65D31-000 |
— | ||
|
18
|
18
09148-05042-000 CLIP2003-06-01~2005-04-01 |
09148-05042-000 |
US $1.12 |
||
|
19
|
19
75280-65D60-000
サイレンサ,ダッシュ,アウタ
2003-06-01~2005-04-01 |
75280-65D60-000 |
— | ||
| replacement | |||||
|
19
|
19
75280-65D61-000
Silencer,dash outer
2003-06-01~2005-04-01 |
75280-65D61-000 |
— | ||
|
20
|
20
09148-05037-000 CLIP2003-06-01~2005-04-01 |
09148-05037-000 |
from US $1.28 |
||
|
21
|
21
09409-07320-000 CAP2003-06-01~2005-04-01 |
09409-07320-000 |
from US $1.06 |
||
|
22
|
22
75810-56B00-000
PEDAL,FOOTREST
2003-06-01~2005-04-01 |
75810-56B00-000 |
— | ||
|
23
|
23
75821-56B00-000 PAD,FOOTREST PEDAL2003-06-01~2005-04-01 |
75821-56B00-000 |
US $11 |
||
|
24
|
24
08316-20083-000
Nut
2003-06-01~2005-04-01 |
08316-20083-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-2008A-000 NUT2003-06-01~2005-04-01 |
08316-2008A-000 |
from US $0.80 |
||
|
25
|
25
75171-65D00-000 CLIP,FL CARPET2003-06-01~2005-04-01 |
75171-65D00-000 |
from US $3.06 |
||
|
26
|
26
99611-60A01-000 SHEET,SILENCER 800X1000X32003-06-01~2005-04-01 |
99611-60A01-000 |
US $62.40 |
||
|
27
|
27
75541-52D00-R8H
COVER,2ND SEAT BRACKET
ベ-ジユ; 2003-06-01~2005-04-01 |
75541-52D00-R8H |
— | ||
|
27
|
27
75541-52D00-R8J
COVER,2ND SEAT BRACKET
グレ-; 2003-06-01~2005-04-01 |
75541-52D00-R8J |
— | ||
|
28
|
28
09118-06118-000 BOLT(6X20)2003-06-01~2005-04-01 |
09118-06118-000 |
from US $1.49 |
||
|
29
|
29
09403-13307-000 CLAMP2003-06-01~2005-04-01 |
09403-13307-000 |
from US $1.01 |
||
|
30
|
30
09119-10080-000
Bolt
2003-06-01~2005-04-01 |
09119-10080-000 |
— | ||
